36
ENGLISH
MULTI ROOM
SYSTEM
The Multi Room system is a function which allows
you to listen to the same or a different source in a
room other than the room in which the SR7500 is
located.
To use this function, a multi room remote unit and
remote control signal receiver available from your
Marantz dealer are necessary.
The operations possible with the multi room
function are explained briefly below.
For details, refer to the instruction manual supplied
with the multi room remote control unit and receiver.
When the outputs of the MULTI OUT terminals are
wired and connected to amplifiers installed in
other rooms or MULTI SPEAKER OUT terminals
are wired and connected to L&R speakers in other
room, different sources can be played in rooms
other than the main room in which this unit and the
playback devices are installed.
SR7500 has some feature to MULTI ROOM
SYSTEM as source selector, OSD information,
sleep timer, Multi Room Speaker output and
remote control.
MULTI ROOM PLAYBACK USING
THE MULTI ROOM OUT TERMINALS
The SR7500 is equipped with audio pre-out
terminals for which the volume is adjustable and
composite video output terminals as the MULTI
ROOM output terminals.
A separately sold stereo power amplifier can be
connected to enjoy multi room playback.
Operation to MULTI ROOM OUT without the
remote controller.

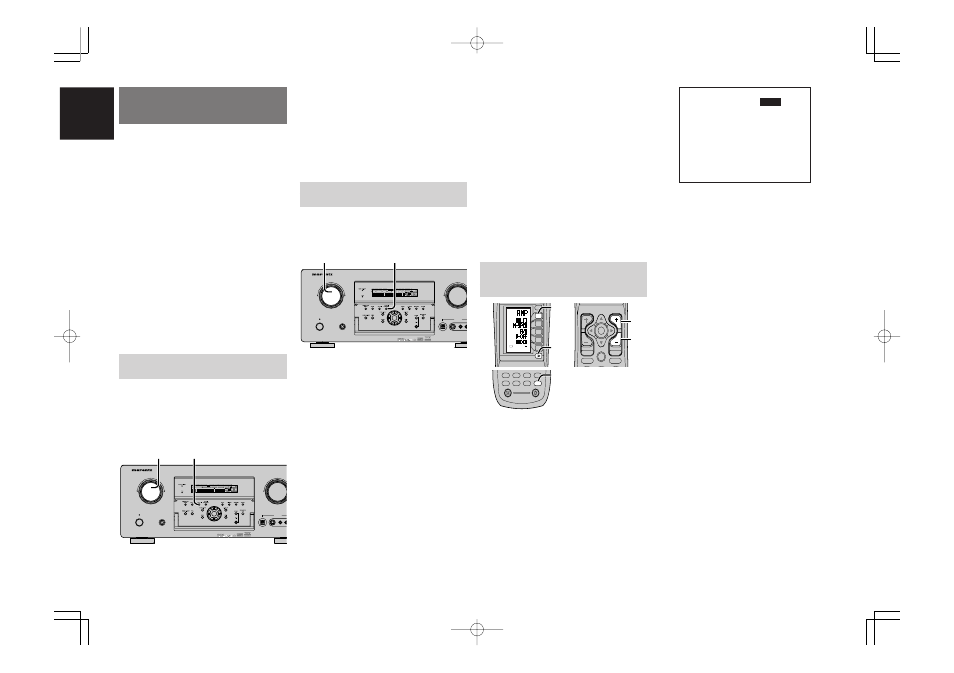

1. Press the MULTI button. The unit enters multi
room mode and the display indicates
“
SELECT SOURCE ” and flashes the “ MULTI ”
indicator for approx. 10 seconds.
2. In this time, you can select the input source by
turning the input selector knob.
Then, the display indicates “
MULTI VOLUME ”
“ MULTI VOL. xx ” for approx. 5 seconds.
3. During this time, you can set the volume level
in the multi room as desired.
This will only set the volume in the second
room.
MULTI ROOM PLAYBACK USING
THE MULTI SPEAKER TERMINALS
The SR7500 allows you to connect another set of
speakers and place them in a different room or
separated area for listening to music.
Operation to MULTI ROOM SPEAKER without the
remote controller.
1. Press the MULTI SPEAKER button. The unit
enters multi room mode and the display
indicates “
SELECT SOURCE ” and flashes the
“ MULTI ” indicators for approx. 10 seconds.
2. In this time, you can select the input source by
tuning the input selector knob.
3. Then, the display indicates “ MSPKR VOLUME ”
“ MSPKR VOL.–xx ” for approx. 5 seconds.
During this time, you can set the volume level
in the multi room as desired.
This will only set the volume in the multi room.
Notes for Multi Room Speaker
• MULTI ROOM SPEAKER On/ Off is available in
main room only.
• MULTI ROOM SPEAKER output terminals can
be used when the SURROUND BACK SPEAKER
is set NONE in SPEAKER SETUP menu. (See
SPEAKER SETUP, page 19)
• “The Surr. Back Speakers are in use” is displayed
by pressing the MULTI SPEAKER button when
the SURROUND BACK SPEAKER is set except
N O N E i n S P E A K E R S E T U P m e n u . ( S e e
SPEAKER SETUP, page 19)
• The multi speaker feature cannot be used at the
same time as the SPEAKER C feature. When
connecting for multi room use, set the SPEAKER
C selector switch on the rear panel to OFF.
• The multi speaker system cannot be used in the
7.1 input channel mode.
OPERATION OF THE MULTI ROOM
OUTPUTS WITH THE REMOTE
CONTROL FROM A SECOND ROOM
1. Press MULTI on the multi room remote control
from the MULTI ROOM.
(Press the
AMP button and press the > button
until PAGE4 is displayed. Press the MULTI
(D1) button.)
This operations will put the SR7500 into multi
room mode and “
MULTI ” will be illuminated on
the display.
MULTI ROOM Video output will show OSD
information for the MULTI ROOM setup.
2. Press the VOL + or VOL – button on the multi
room remote control to set the desired
volume.
3. In multi room mode, the multi room remote
control can be used in the multiroom to
operate the following functions.
General:
Controlling volume level, sleep timer, and
muting. Selecting input audio and video source
Tuner:
Selecting band, controlling preset channel up and
down, tuning up and down, direct frequency call.
Notes for the Multi Room System
• The MULTI ROOM OUT (MULTI OUT/MULTI
SPEAKER) has analog outputs.
This does not support digital input signals.
• If the Tuner (FM or AM) is active in the main
room, you can not control any function of the
tuner.
In this case, You must listen to the same station as
the main room.
MU L T I ROOM
V I D EO : V CR 1
A UD I O : FM 1 0 2 .0 0
S L E E P T I ME R : 9 0 m i n
MU L T I : O F F MS P KR : O F F
V O L : V AR I VO L : V AR I
L E V E L : - 9 0 d B L E V E L : - 9 0 d B
- - - - MA I N - ROOM S T A T U S - - - -
V I D EO : D V D
AUD I O : D V D
MA I N E X I T
AV SURROUND RECEIVER SR7500
POWER ON/OFF PHONES
STANDBY
L C R SL S SR LFE DIGITAL SURROUND DISP MULTI AUTO TUNED ST SPKR A B V-OFF NIGHT PEAK ANALOG DIGITAL ATT SLEEP SURR DIRECT AUTO DISC 6.1 MT X 6.1 EQ PCM AAC
AUX 1 INPUT S-VIDEO DIGITAL VIDEO L
DOWN
VOLUME
ENTER
INPUT SELECTOR
2. 1.
AV SURROUND RECEIVER SR7500
POWER ON/OFF PHONES
STANDBY
L C R SL S SR LFE DIGITAL SURROUND DISP MULTI AUTO TUNED ST SPKR A B V-OFF NIGHT PEAK ANALOG DIGITAL ATT SLEEP SURR DIRECT AUTO DISC 6.1 MT X 6.1 EQ PCM AAC
AUX 1 INPUT S-VIDEO DIGITAL VIDEO L
DOWN
VOLUME
ENTER
INPUT SELECTOR
2. 1.
AMP AUX2 AUX1 TAPE
TUNER CD CD-R MD
1 2 LIGHT
Learning Remote Controller RC1400
AMP
1.
D4
D5
D2
M
D1
D3
D5
VOL CH
USE PAGE 4
D1
1.
1.
OK
VOL CH
PREV MUTE
MENU EXIT
GUIDE
TEST CH.SEL SURR
2.
2.
