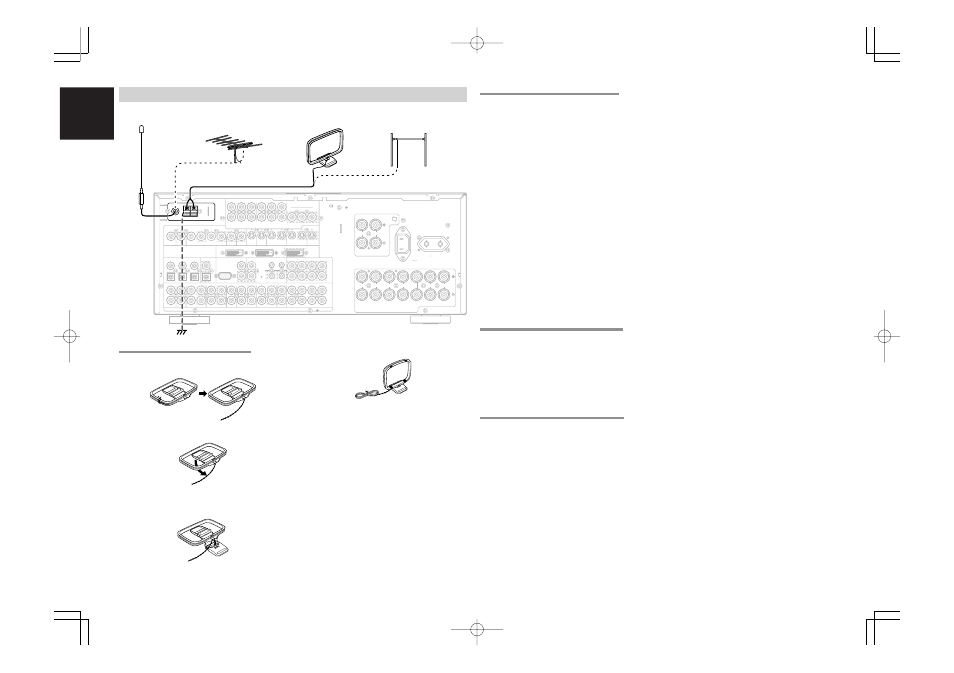

CONNECTING THE ANTENNA TERMINALS
AC IN
MULTI
OUT
TV
DVD
C
IN
OUT
S-VIDEO
DVD
DSS/VCR2
C
RS-232C
MULTI RC
IN
OUT
DSS/VCR2
IN
OUT
OUT
VCR1
VCR1
L
SBR
SBL
OUT
PRE
SL
L
SR
R
DSS/VCR2
DVD
TV
R
IN
R
SW
RC-5
IN
SR
AUDIO
7.1CH
IN
OUT
IN
L
SL
SBR
SBL
CD
IN
OUT
SW
OUT
CDR/MD
TAPE
OUT
IN
IN
OUT
VIDEO
MONITOR
OUT
MULTI
VCR1
TV
OUT
(AUX2)
MONITOR
DIGITAL IN
DIGITAL OUT
4
1
OPT.
2
5
3
6
COAX.
R
L
R
R
FRONT A
L
L
FM (75½)
ANTENNA
GND
AM
COMPONENT
VIDEO
CB/PB
CR/PR
CR/PR
CR/PR
CB/PB
CB/PB
TV
Y
Y
MONITOR OUT
VCR1
DVD
DSS/VCR2
Y
SURROUND
100W MAX.
AC OUTLET
SWITCHED
230V
50/60H
Z
OUT
SPEAKER SYSTEMS
FRONT A OR B, CENTER, SURR, SURR BACK
: 6 - 8 OHMS
FRONT A + B
: 8
OHMS
FLASHER IN
DC OUT
1
2
1
2
R
L
FRONT B
CENTER
SURROUND BACK/
MULTI SPEAKER/
SPEAKER C
ON
OFF
SPEAKER C
OUTPUT
INPUT-2
INPUT-1
DVI-D
FM (75½)
ANTENNA
GND
AM
FM ANTENNA
FM EXTERNAL
ANTENNA
AM LOOP
ANTENNA
AM EXTERNAL
ANTENNA
ASSEMBLING THE AM LOOP ANTENNA
1.
Release the vinyl tie and take out the connection
line.
2.
Bend the base part in the reverse direction.
3.
Insert the hook at the bottom of the loop part
into the slot at the base part.
CONNECTING THE SUPPLIED ANTENNAS
Connecting the supplied FM antenna
The supplied FM antenna is for indoor use only.
During use, extend the antenna and move it in
various directions until the clearest signal is
received.
Fix it with push pins or similar implements in the
position that will cause the least amount of
distortion.
If you experience poor reception quality, an
outdoor antenna may improve the quality.
Connecting the supplied AM loop antenna
The supplied AM loop antenna is for indoor use
only.
Set it in the direction and position it to where you
receive the clearest sound. Put it as far away as
possible from the unit, televisions, speaker cables,
and power cords.
If you experience poor reception quality, an outdoor
antenna may improve the quality.
1.
Press and hold down the lever of the AM antenna
terminal.
2.
Insert the bare wire into the antenna terminal.
3.
Release the lever.
CONNECTING AN FM OUTDOOR ANTENNA
Notes:
• Keep the antenna away from noise sources (neon
signs, busy roads, etc.).
• Do not put the antenna close to power lines. Keep
it well away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock,
grounding is necessary.
CONNECTING AN AM OUTDOOR ANTENNA
An outdoor antenna will be more effective if it is
stretched horizontally above a window or outside.
Notes:
• Do not remove the AM loop antenna.
• To avoid the risk of lightning and electrical shock,
grounding is necessary.
4.
Place the antenna on stable surface.
