7-6
PCMCIA LID ASS'Y
DC IN LID Rubber
USB LID Rubber
LAN LID Rubber
Moden/LAN LID Rubber
Audio
LID Rubber
HDD LID ASS'Y
Battery
LID ASS'Y
RGB
LID Rubber
Serial
LID Rubber

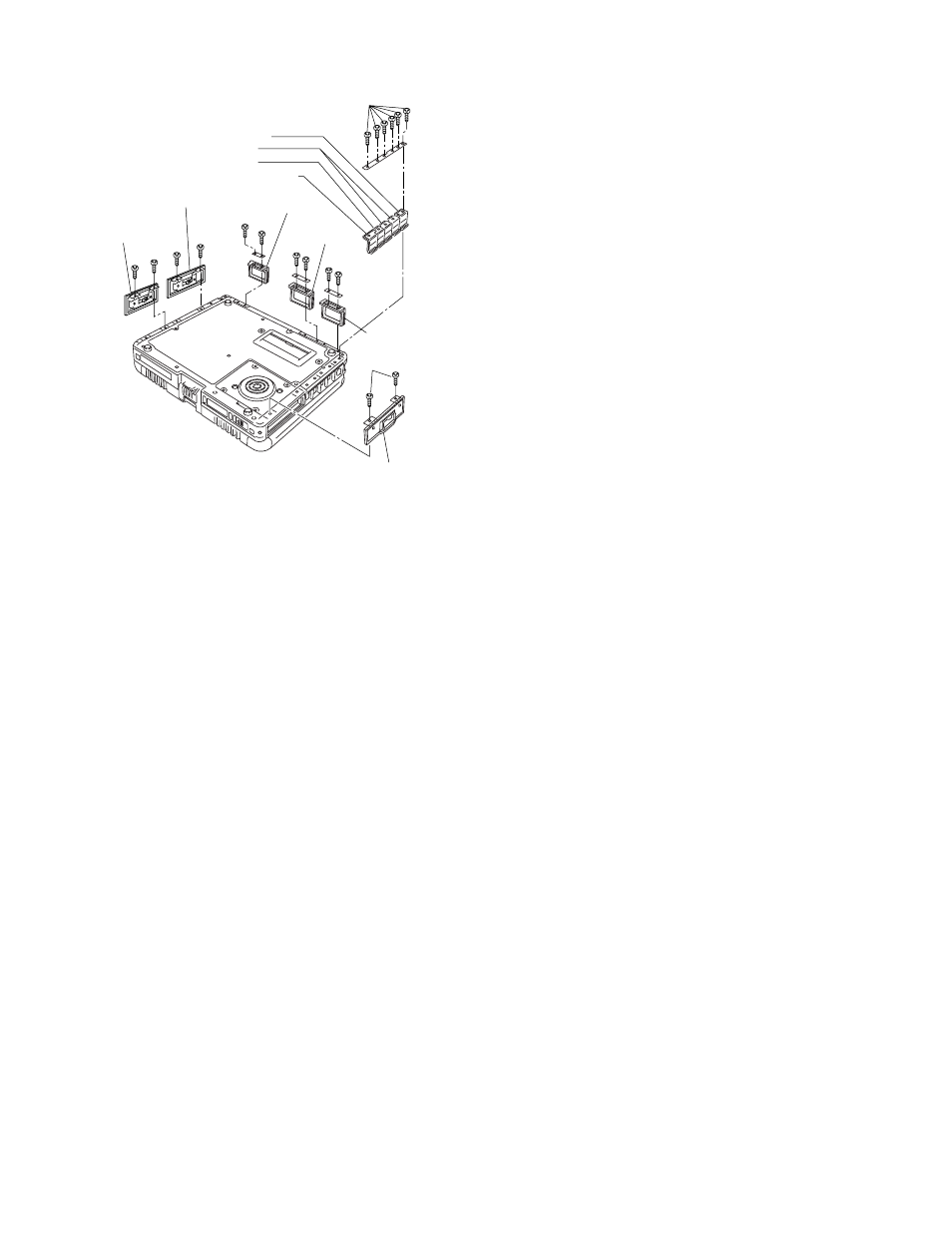

7.17. Removing Each Cover
Figure 23
1. Remove the six Screws.
2. Remove the Battery LID ASS'Y, HDD LID ASS'Y and
PCMCIA LID ASS'Y.
3. Remove the twelve Screws.
4. Remove the Moden/LAN LID Rubber, LAN LID Rubber, USB
LID Rubber, DC IN LID Rubber, Serial LID Rubber, RGB
LID Rubber and Audio LID Rubber.
Screw
