7-1
7. Disassembly/Reassembly
NOTE:
Power off the computer. Do not shut down to the Suspend or
Hibernation mode.
Do not add peripherals while the computer ius in the Suspend
or Hibernation mode; abnormal operation may result.
For the Screw tightening torque, please refer to [ 8. Exploded
View].

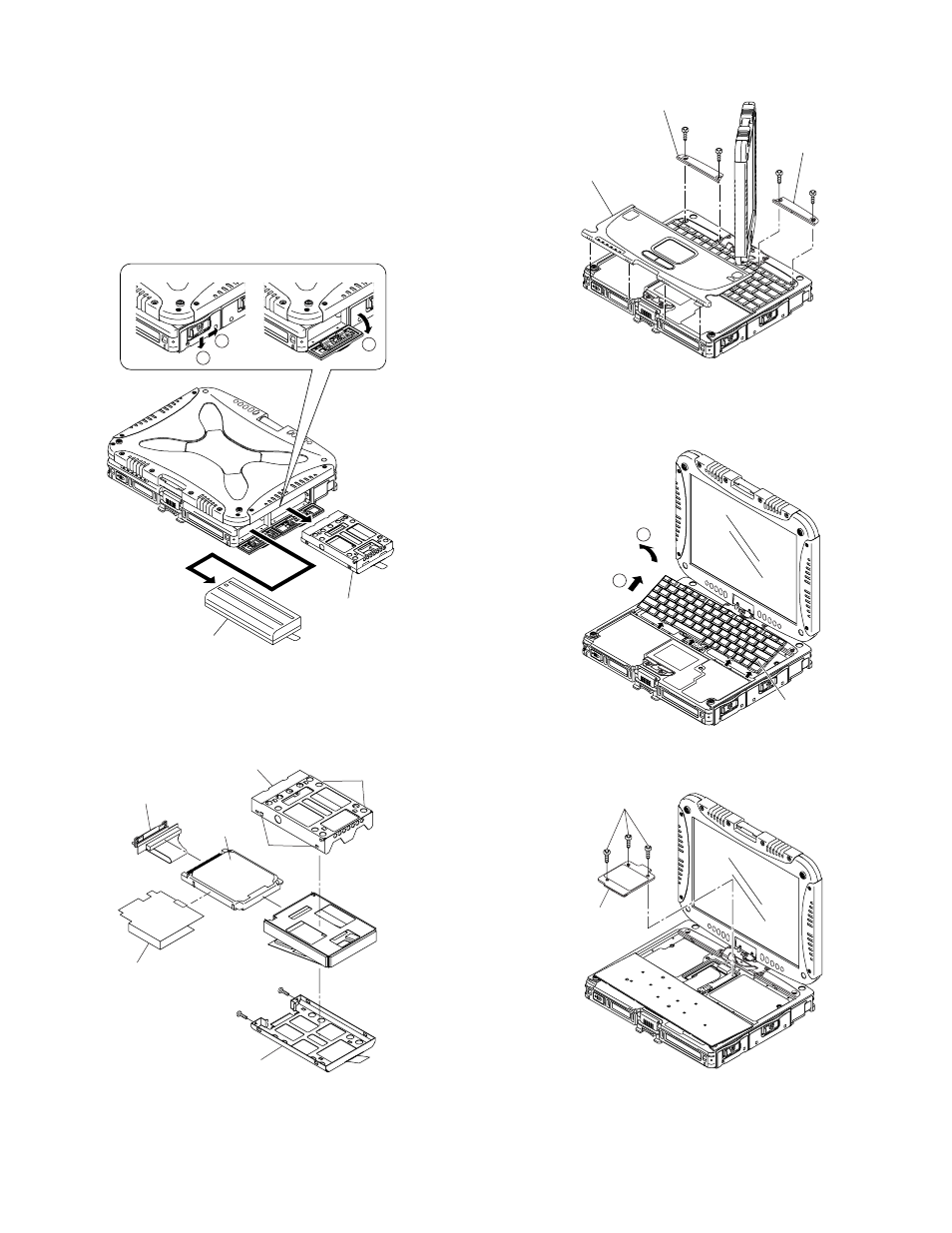

7.1. Removing the Battery Pack and
HDD Pack
Figure 1
1. Open the Battery Cover.
2. Remove the Battery Pack.
3. Open the HDD Cover.
4. Remove the HDD Pack.
Figure 2
5. Remove the two Screws.
6. Remove the HDD Case A and the HDD Case B.
7. Remove the HDD.
Screw: DFHE5025XA
7.2. Removing the Touch Pad and
Keyboard
Figure 3
1. Remove the Palm Rest Assíy.
2. Remove the four Screws.
3. Remove the KBD Plate.
Figure 4
4. Remove the Keyboard.
Figure 5
5. Remove the three Screws.
6. Remove the KBD Connector Cover.
1
2
3
Battery Pack
HDD Pack
HDD Case B
HDD Case A
HDD FPC
HDD
Heater
Hooks
Hooks
KBD Plate
KBD Plate
Palm Rest Ass'y
1
2
Keyboard
KBD
Connector
Cover
