7
24
41
29
31
30
24
24
23
13
31
34
14

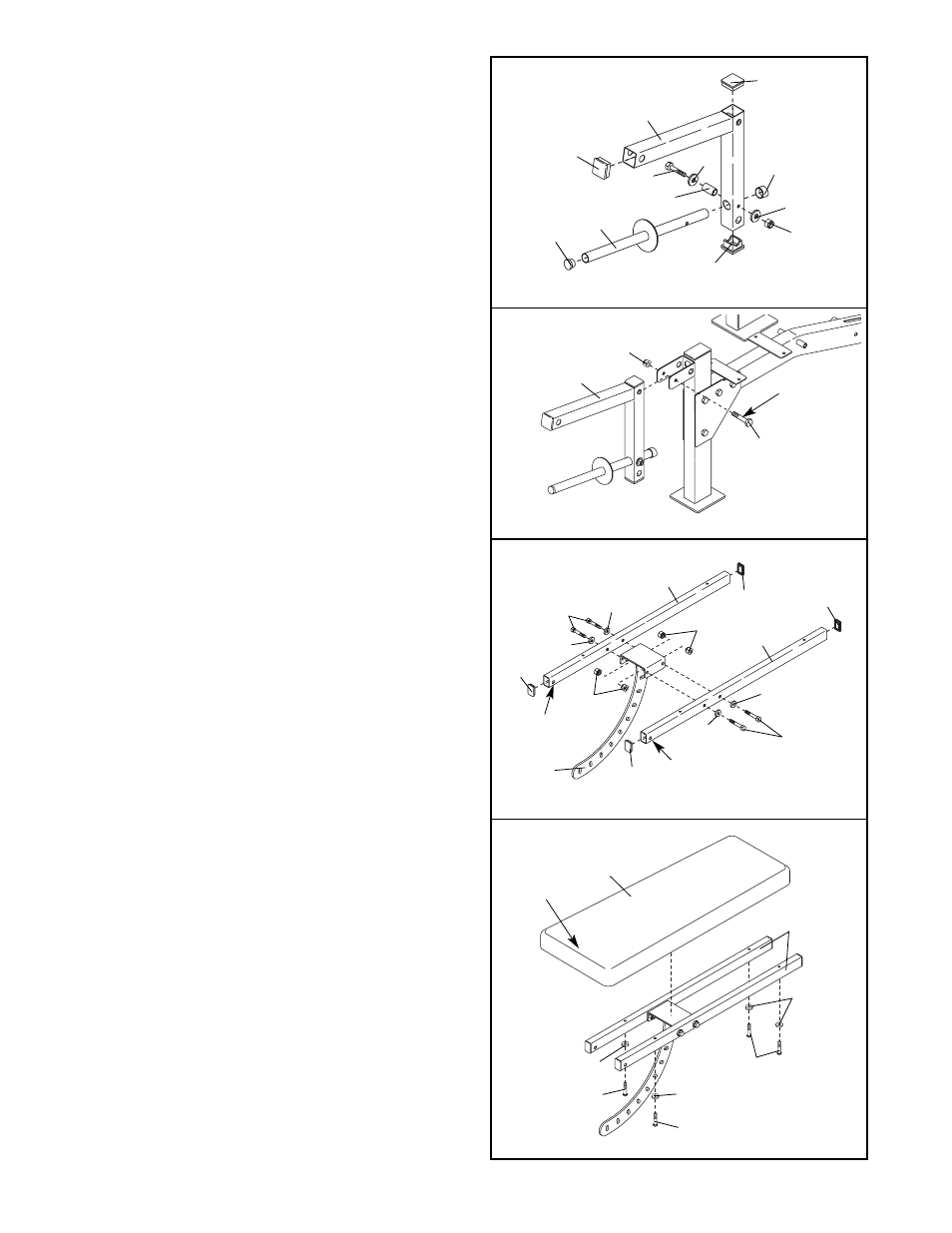

6. Press three 45mm Square Inner Caps (24) into
the Leg Lever (41). Press the 25mm Round Inner
Cap (23) into the indicated end of the Weight
Tube (14).
Slide the Weight Tube (14) through the Leg Lever
(41) and secure it in place with an M8 x 58mm
Bolt (30), two M8 Washers (31), the 10mm
Spacer (29), and an M8 Nylon Locknut (34).
Press the 25mm Round Angled Cap (13) onto the
end of the Weight Tube (14).
7. Lubricate an M10 x 68mm Bolt (33) with grease.
Attach the Leg Lever (41) to the Front Leg (3)
with the Bolt and an M10 Nylon Locknut (32).
8. Press two 25mm x 38mm Inner Caps (20) into
the ends of both Backrest Frames (7).
Orient the Backrest Frames (7) as shown, with
the indicated holes closer to the bottom. Attach
the Frames to the Adjustment Bracket (8) with
four M10 x 45mm Bolts (40), four M10 Washers
(38), and four M10 Nylon Locknuts (32). Do not
tighten the Locknuts yet.
6
9
42
36
9. Attach the Backrest (9) to the Backrest Frames
(7) with four M6 x 53mm Screws (42) and four M6
Washers (36). Do not tighten the Screws yet.
7
36
36
42
42
9
32
33
7
20
Hole
Hole
20
40
40 38
38
41
Lubricate
20
32
20
32
8
38
38
Wide
End
7
7
8
