OPERATING THE TV MULTI FORMAT SWITCHER
Setting the IR channel
1.

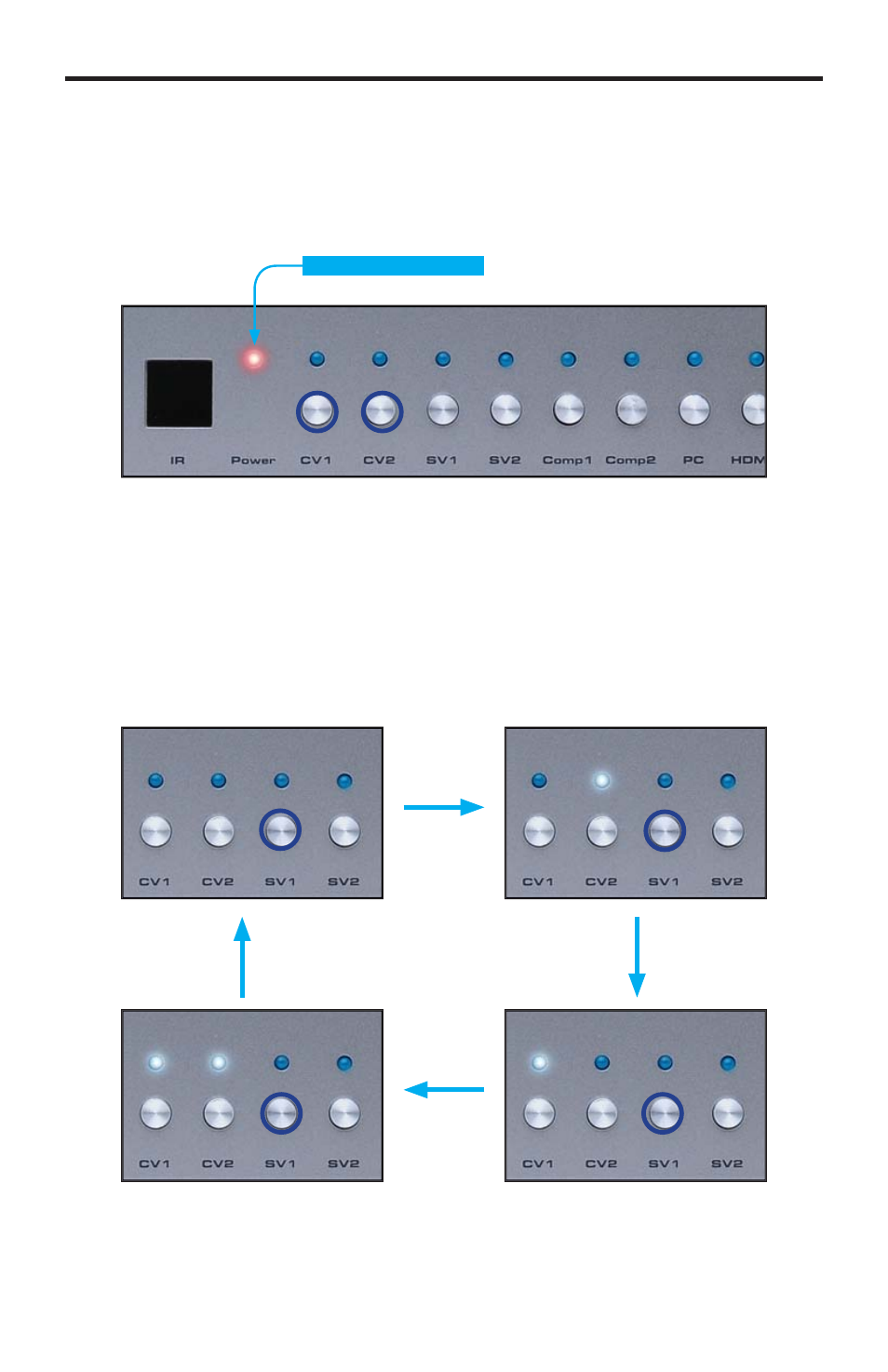

After the TV Multi Format Switcher is powered, press and hold the CV1 and
CV2 simultaneously. After a few seconds, the power LED will begin to fl ash
rapidly.
2. The current IR channel will be indicated by the CV1 and CV2 buttons on
the front panel. In the illustration above, both LED indicators for CV1 and
CV2 are not on. This indicates that the TV Multi Format Switcher is set to IR
channel 0. IR channel 0 is the default setting.
3. Consecutively press the SV1 button will cycle through each IR channel, as
follows.
After the SV1 button is pressed once, the power LED will glow solid red to
indicate that the IR channel on the Switcher has changed.
g p
Flashing power LED
IR channel 0
IR channel 1
IR channel 2
IR channel 3
