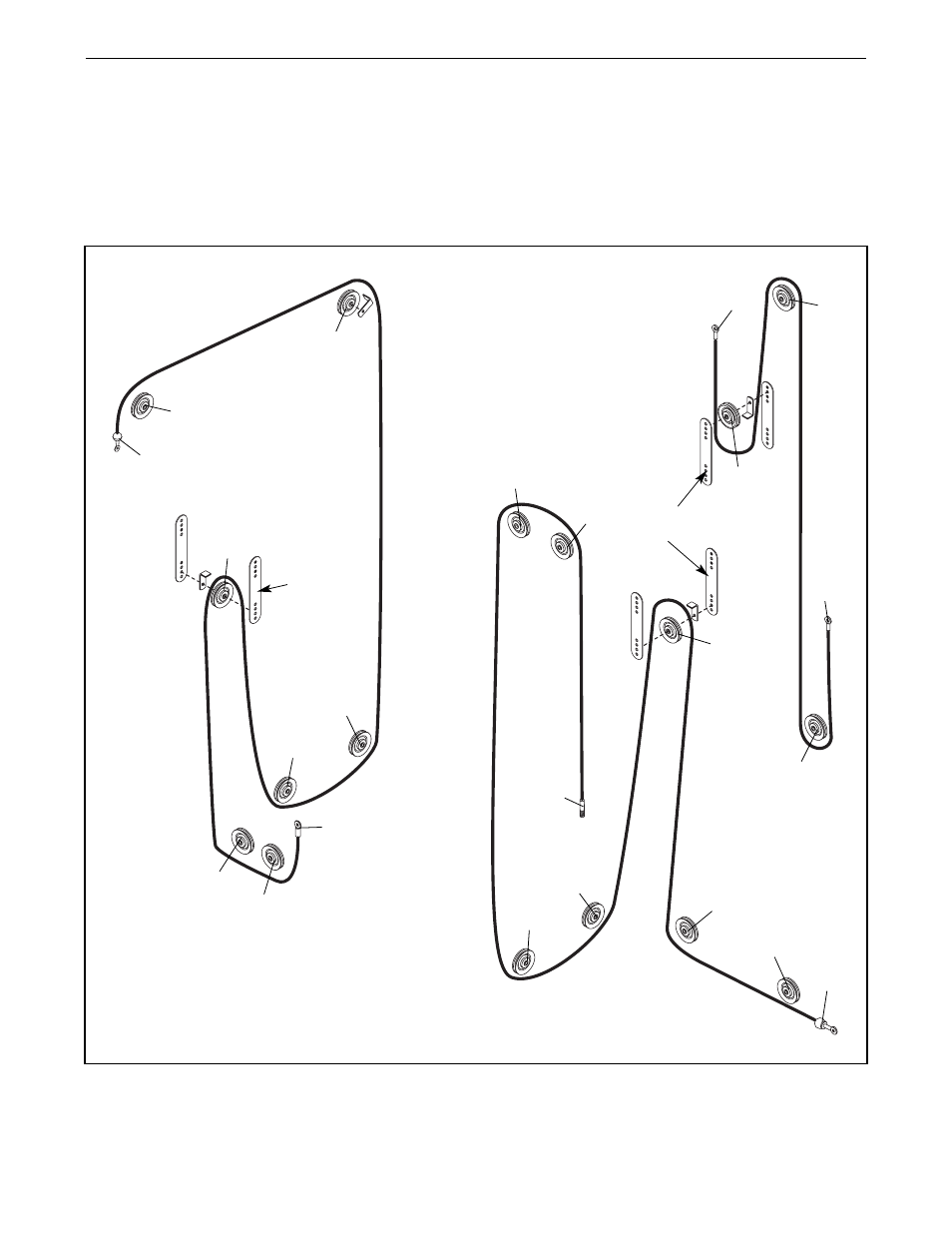

CABLE DIAGRAMS
The cable diagrams show the proper routing of the Butterfly Cable (69), the Squat Low Cable (72), the Squat
Cable (73), the Dip Cable (74), the Leg Lever Cable (75), the Fly Cable (72), and the Lat Cable (88). Use the
diagrams to make sure that the cables and the cable traps have been assembled correctly. If the cables have
not been correctly routed, the weight system will not function properly and damage may occur. The numbers
show the correct route for each cable. Make sure that the cable traps do not touch or bind the cables.
1
2
7
8
9
5
4
7
8
9
1
2
3
4
6
6
Plate
Set A
5
Lat Cable (88)
Length: 229 inches
Squat Cable (73)
Length: 175 inches
Squat Low Cable (72)
Length: 212 inches
3
1
2
3
4
5
Plate
Set B
