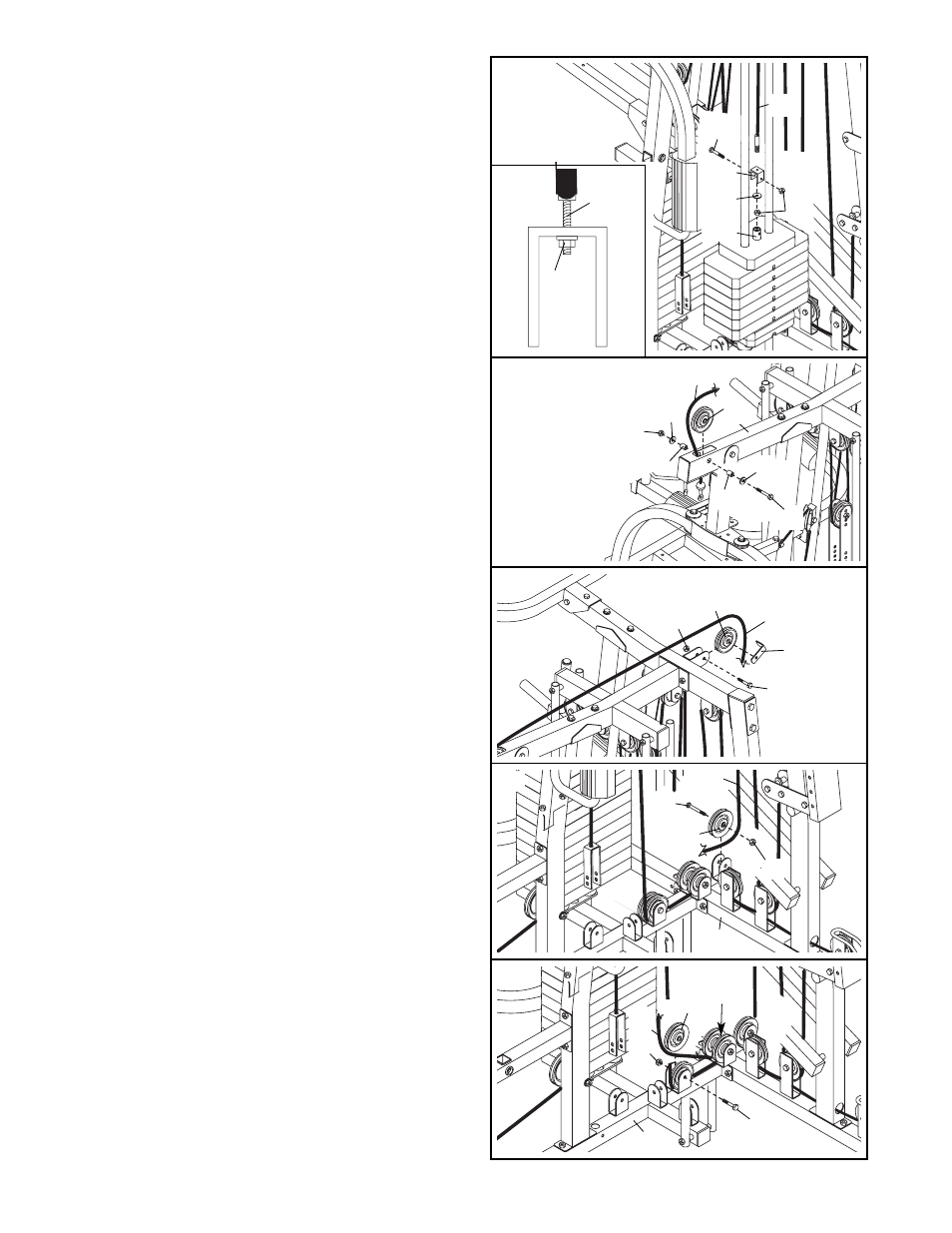

56. Attach the Squat Low Cable (72) to the other
Small “U”-bracket (106) with an M8 Washer (90)
and an M8 Nylon Locknut (71). Do not com-
pletely tighten the Locknut; it should be tight-
ened so that only two threads of the Cable
show past the Locknut, as shown in the inset
drawing.
Attach the Small “U”-bracket (106) to the Short
Weight Tube (122) with an M8 x 45mm Bolt (108)
and an M8 Nylon Locknut (71). Do not overtight-
en the Locknut; the Weight Tube must be able
to pivot in the “U”-bracket.
58. Wrap the Lat Cable (88) over a 90mm Pulley
(78). Attach the Pulley and a Cable Trap (68) to
the Top Frame (6) with an M10 x 50mm Bolt
(100) and an M10 Nylon Locknut (87). Make sure
the Cable Trap is oriented to hold the Cable in
the groove of the Pulley.
59. Wrap the Lat Cable (88) under a 90mm Pulley
(78). Attach the Pulley to the Long Base (120)
with an M10 x 45mm Bolt (93) and an M10 Nylon
Locknut (87).
60. Remove the indicated 90mm Pulley (78) from the
Short Base (2). Route the Lat Cable (88) under
the 25mm Spacer (118) and under the Pulley.
Reattach the Pulley to the Base with the M10 x
75mm Bolt (101) and an M10 Nylon Locknut (87).
57. Locate the Lat Cable (88). Route the Cable up
through the Butterfly Top Frame (7) and over a
90mm Pulley (78). Attach the Pulley inside the
Butterfly Top Frame with an M10 x 65mm Bolt
(18), two M10 Washers (91), two 12.5mm
Spacers (89), and an M10 Nylon Locknut (87).
