- 12 - GA-K8VT800M Motherboard
English

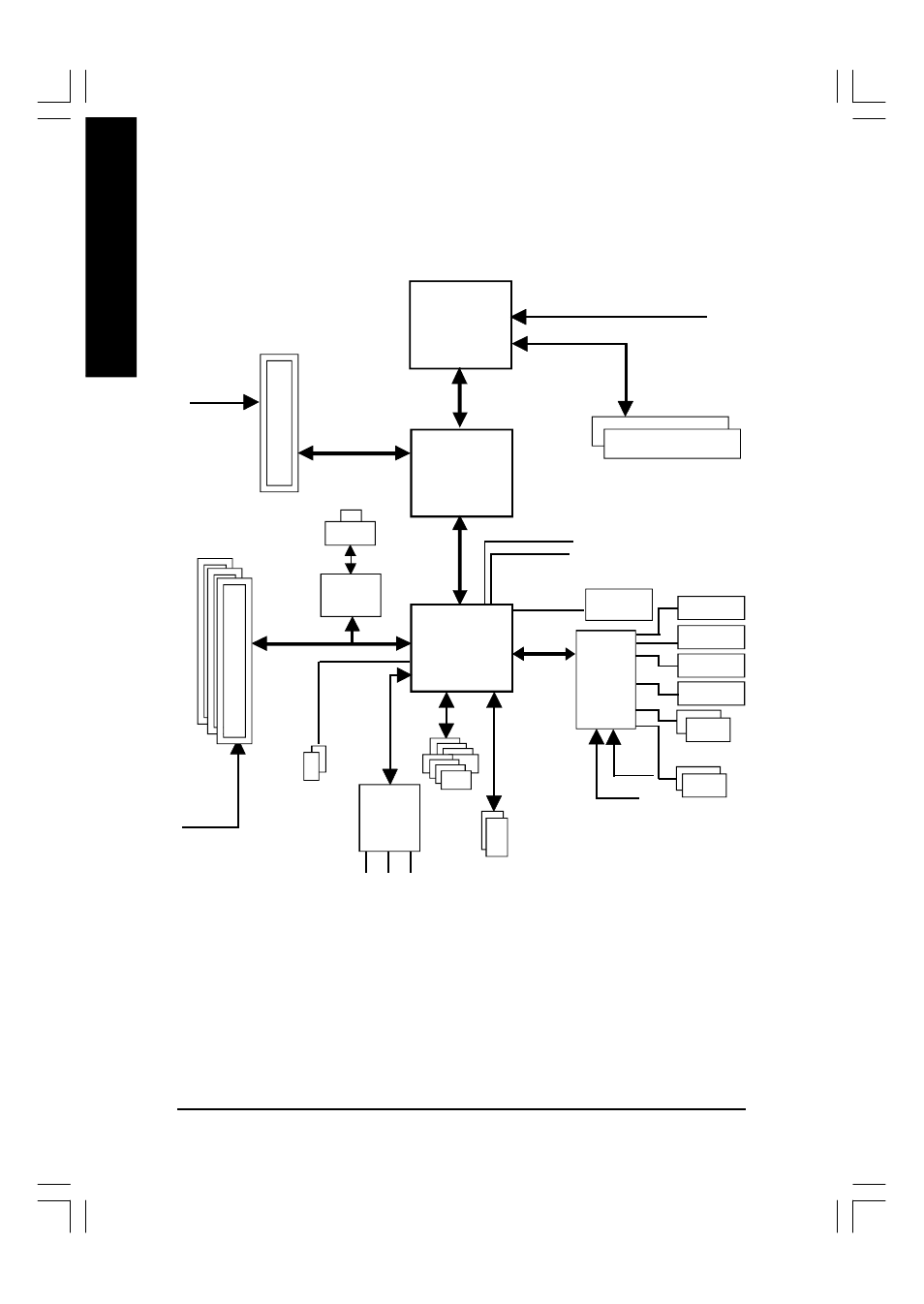

Block Diagram
VIA K8T800
CPUCLK+/- (200MHz)
H.T. Bus 800MHz
33 MHz
14.318 MHz
AGP
4X/8X
AGPCLK
(66MHz)
3 PCI
PCICLK
(33MHz)
RJ45
AC97 Link
RTL8100C
MIC
LINE-IN
LINE-OUT
6 Channel
CODEC
2 Serial ATA
400/333/266/200MHz
DDR RAM
VIA VT8237
LPC BUS
8 USB
Ports
IT8705
24 MHz
33 MHz
Game Port
Floppy
LPT Port
PS/2 KB/Mouse
2 COM Ports
BIOS
IR
ATA33/66/100/133
IDE Channels
LAN1
AMD
Althlon TM 64
processor (K8)
