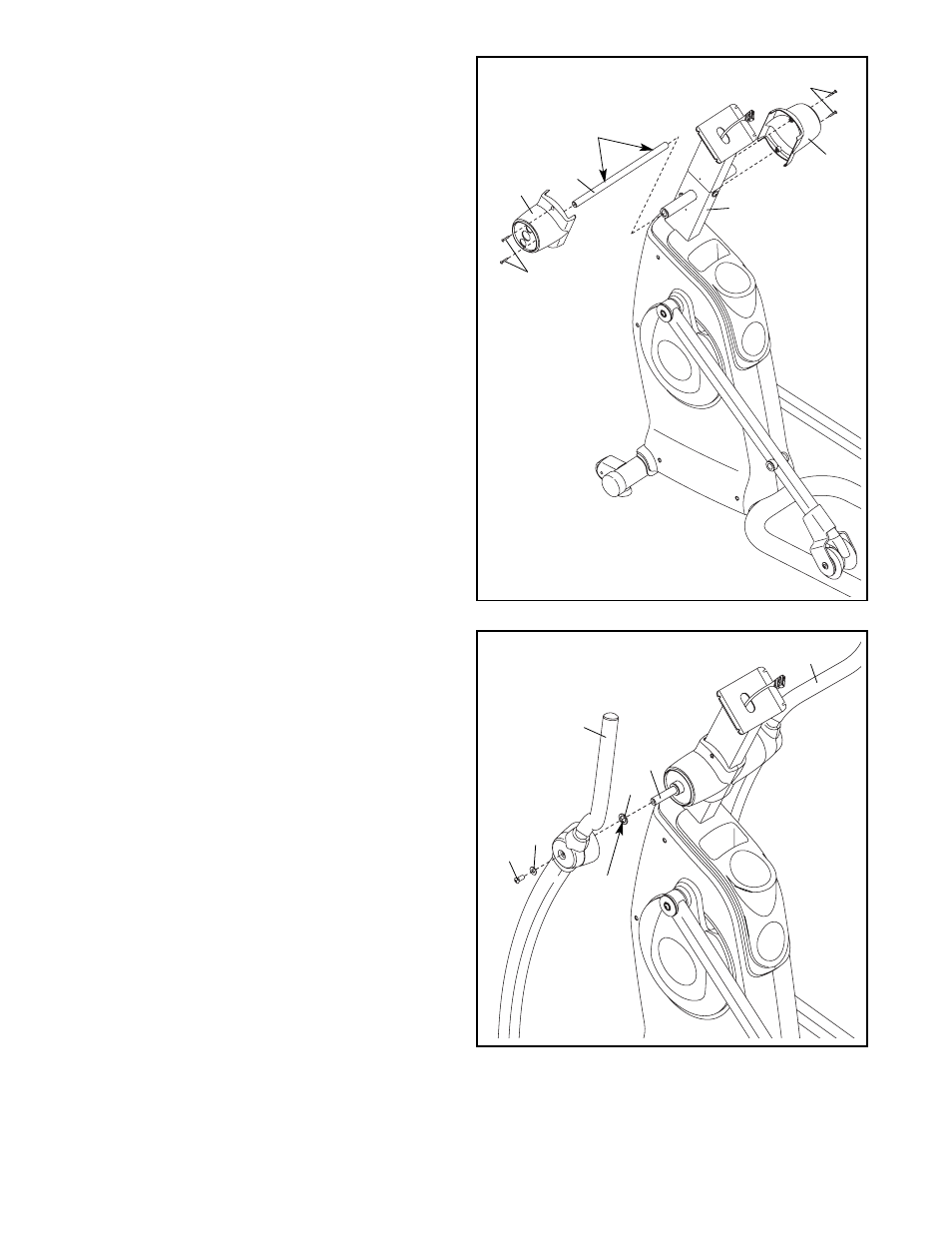

8. Apply a generous amount of grease to the Pivot
Axle (65) and insert it into the Frame (2).
Attach the two Frame Covers (17) to the Frame
(2) with four M4 x 16mm Screws (86) as shown.
8
86
86
65
17
17
2
Grease
9. Apply a small amount of grease to both sides of
a Wave Washer (98). Slide the Wave Washer
onto the left side of the Pivot Axle (65). Next,
slide the Left Handlebar (8) onto the Pivot Axle
as shown.
Attach the Left Handlebar (8) with an M10 x
23mm Shoulder Screw (80) and an M10 x
20mm x 1mm Washer (81).
Repeat this step to attach the Right
Handlebar (9) to the Pivot Axle (65).
9
98
9
81
8
80
65
Grease
