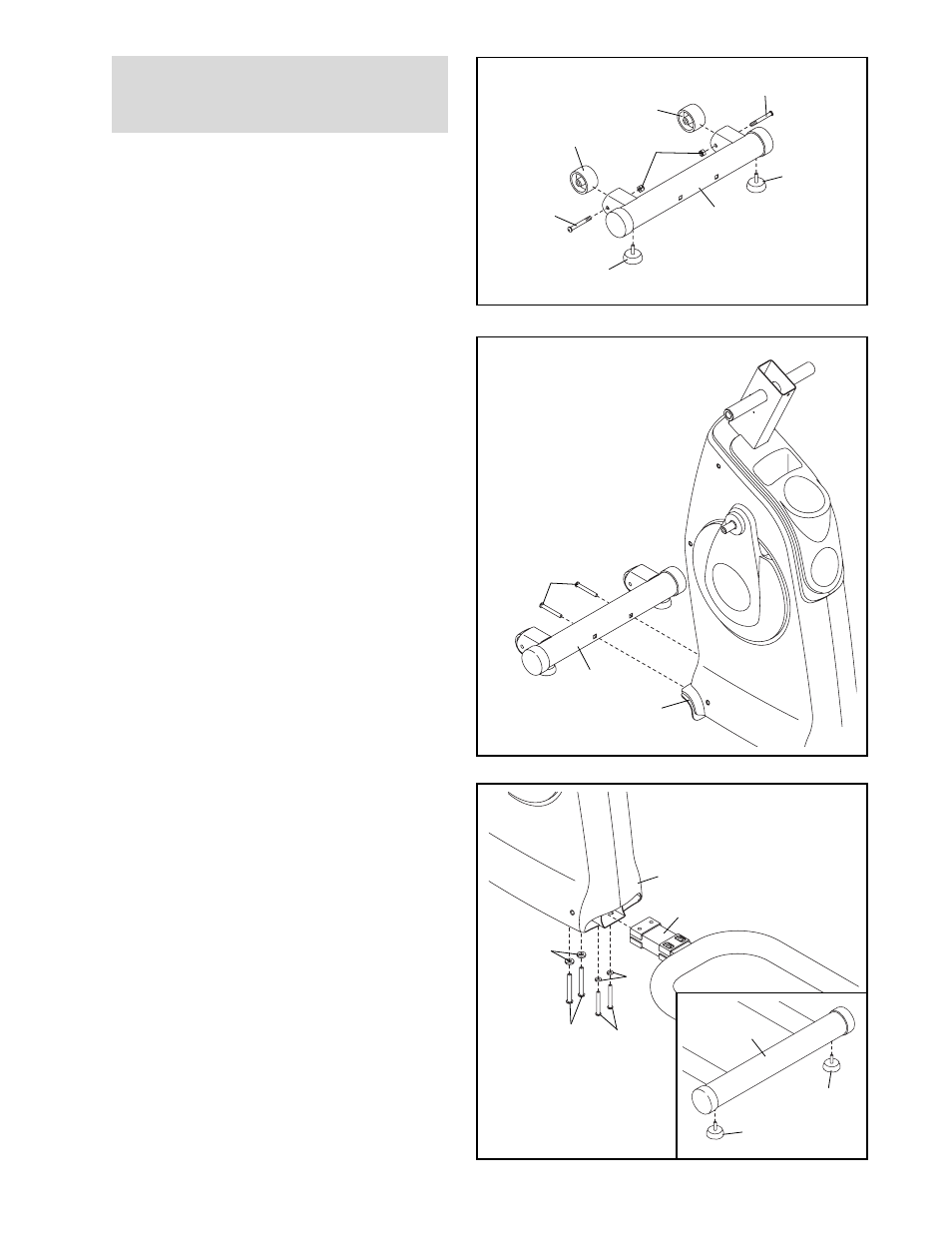

1.
Orient the the Front Stabilizer (35) as shown.
Attach the two Wheels (25) to the Front
Stabilizer with two M10 x 62mm Patch Bolts (89)
and two M10 Nylon Locknuts (97).
Next, attach two Feet (26) to the underside of
the Front Stabilizer (35).
2. Have a second person tip the Frame (2) back-
ward. Attach the Front Stabilizer (35) to the
Frame with two M10 x 78mm Patch Screws (90).
97
26
26
1
2
2
89
89
25
25
35
90
35
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
3. Orient the Base (1) near the Frame (2) as
shown. See the inset drawing. Attach two Feet
(26) to the underside of the Base.
Have a second person tip the Frame (2) for-
ward. Insert the Base (1) into the Frame. Attach
the Base with two M10 x 62mm Patch Bolts
(89), two M10 Spacers (76), two M8 x 48mm
Patch Screws (78), and two M8 Split Washers
(72).
