8

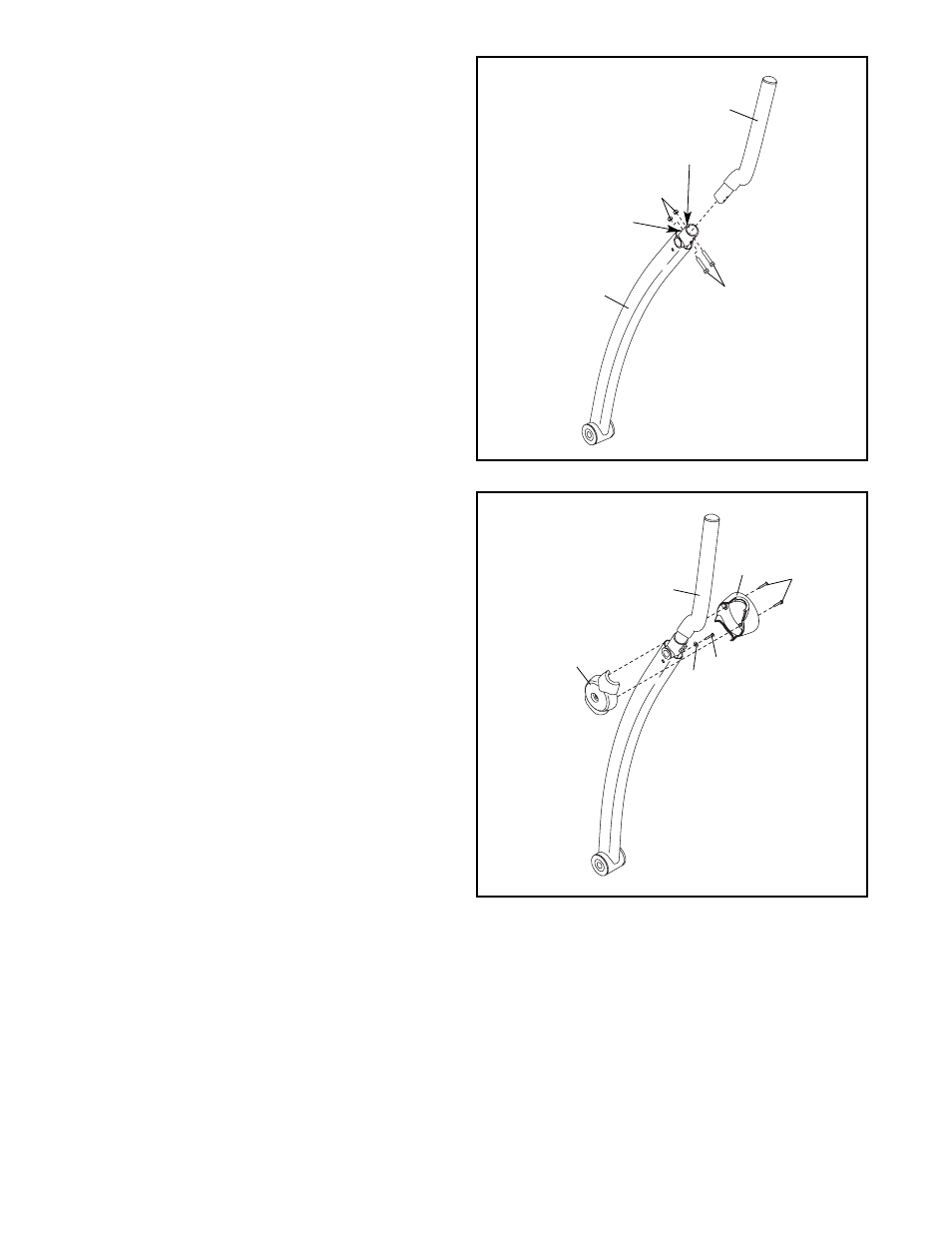

6. Identify the Left Handlebar (8), which is marked
with a “Left” sticker. Insert the Left Handlebar
into one of the Handlebar Legs (11) as shown.
Attach the Left Handlebar (8) with two M8 x
42mm Bolts (71) and two M8 Nylon Locknuts
(96). Make sure that the Nylon Locknuts are
inside the hexagonal holes.
Assemble the Right Handlebar (not shown)
and the other Handlebar Leg (not shown) in
the same way.
11 71
8
96
6
Hexagonal
Hole
Hexagonal
Hole
7. Position an Inner Handlebar Cover (18) and an
Outer Handlebar Cover (19) around the Left
Handlebar (8) as shown.
Attach the Inner and Outer Handlebar Covers
(18, 19) with three M4 x 16mm Self-tapping
Screws (79) and an M4 x 13mm Washer (93).
Start all three Self-tapping Screws before
tightening them.
Repeat this step for the Right Handlebar (not
shown).
7
19
18
79
79
8
93
