GS-R12T4H2-RH Rack Mount Server

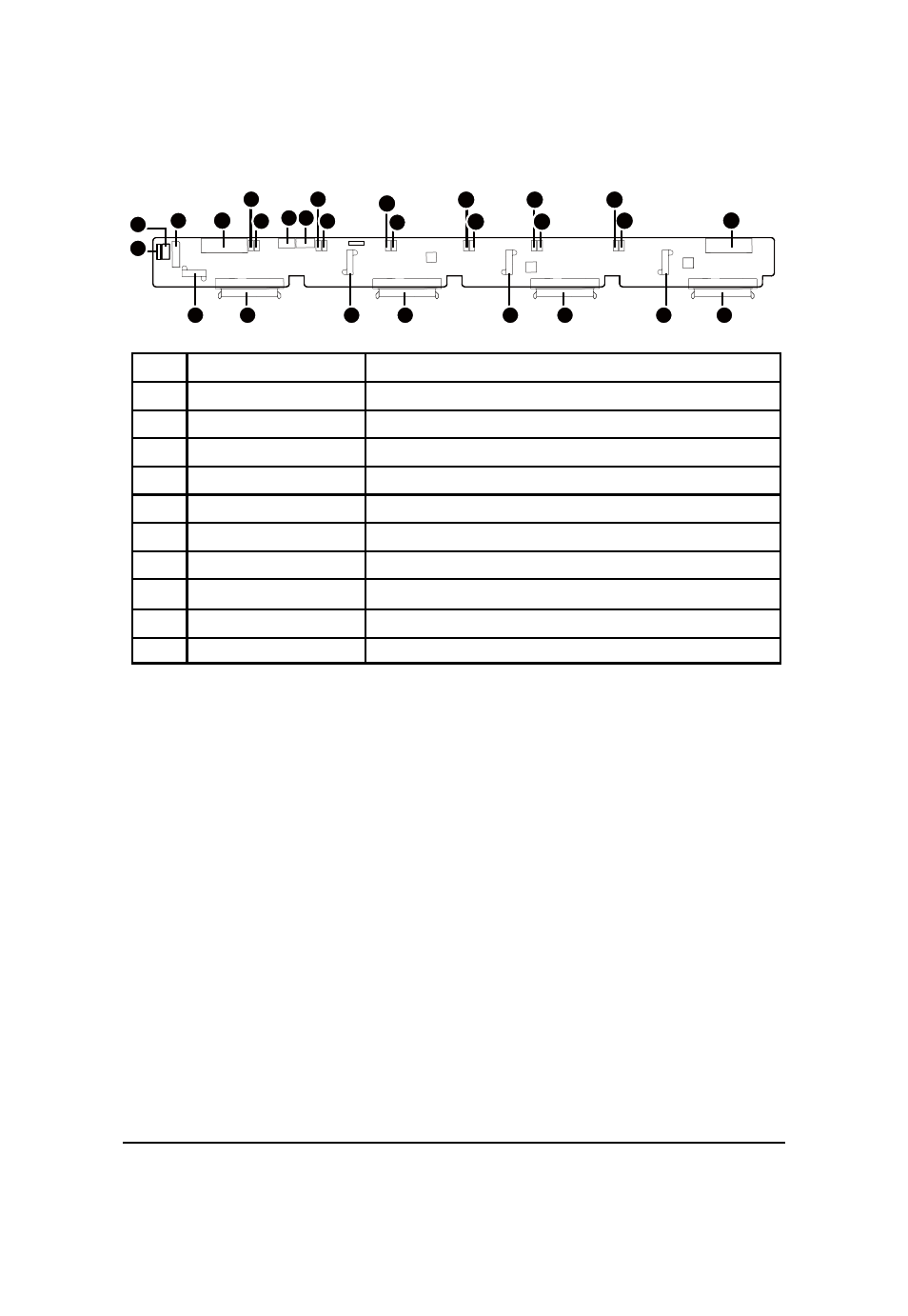

GC-BS14U-RH Back plane board Components
2
1
4
3
10
7
5
11
13
6
8
9
12
14
15
18
17
16
19
20
21
22
23
24
25
26
27
No
Code
Description
1
P2
Power Connector (14-pin)
2
P1
Power Connector (14-pin)
3~14 SF1~SF12
System fan connectors #1~12
15
CD-ROM_PWR1
CD-ROM power connector
16
J3
CD-ROM power connector
17
J2
SMBUS connector from M/B to B/P
18
SGPIO_JP2
SGPIO connector from RAID card
19
SGPIO_JP1
SGPIO connector from Enclosure IC(Motherboard)
20~23 SATA0~SATA3
SATA cable connectors #0~3
24~27 SAS0~SAS
HDD connector #0~3 (SAS & SATA)
