GS-R12T4H2-RH Rack Mount Server

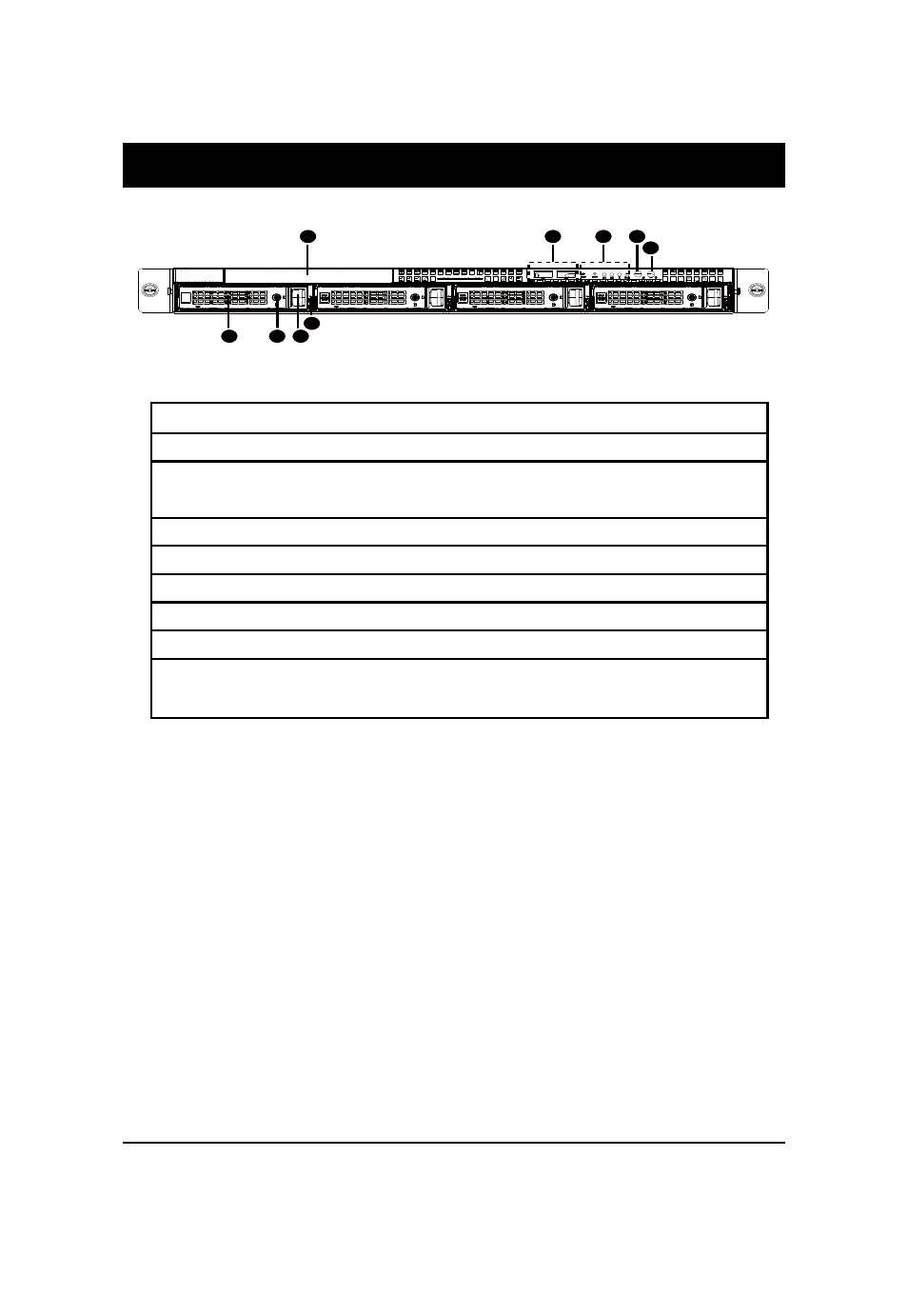

Front View of GS-R12T4H2-RH
Appearance of GS-R12T4H2-RH
NOTE! For Front LED description, please go to Front Panel LED Indicators
section.
1 2
6 7
3
4
8 5
9
1. HDD bay Open to install a hard drive.
2. HDD bay lock Turn this to lock and unlock the HDD bay.
3. HDD front release button Slide this release to the right and pull out lever to remove
HDD bay.
4. HDD LED This LED shows HDD activity
5. ODD drive Place ODD device in this drive.
6. Front USB ports x2 Connect USB devices to these ports.
7. System LEDs System status LEDs.
9. ID Button Press to light front and rear ID LEDs.
9. Power Button Push the power button to turn the system on, and hold
down to turn the system off.
