71 - Memory Upgrade Module
Checking the Memory Capacity
Once you have changed the system memory capacity by replacing the installed module with a larger one,
be sure to check that your notebook has recognized the change.
Check the memory capacity by clicking [Start] -> Control Panel -> System and Maintenance -> System.
The amount of memory is displayed next to “Memory - RAM:”
Removing a Memory Upgrade Module
1
Perform steps 1 through 4 of Installing a Memory
Upgrade Module.
2
Pull the clips sideways away from each side of the
memory upgrade module at the same time.
3
While holding the clips out, remove the module from the
slot by lifting it up and pulling it away from your notebook.
4
Store the memory upgrade module in a static guarded
sleeve.
5
Replace the cover and reinstall the screws.

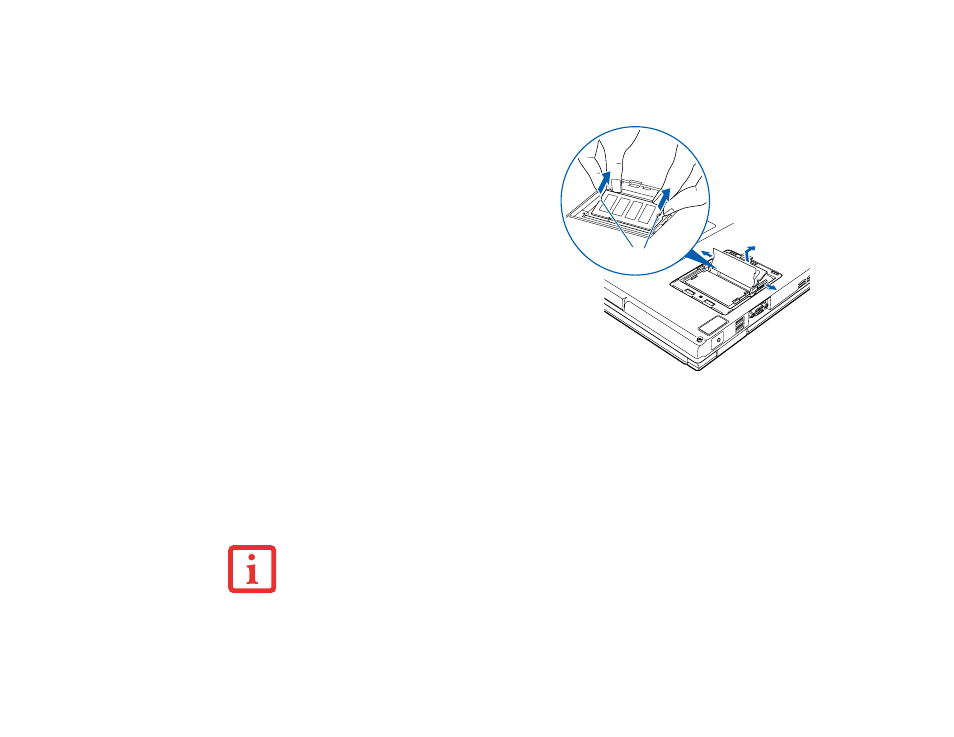

Figure 29. Removing memory module
I
F
THE
TOTAL
MEMORY
DISPLAYED
IS
INCORRECT
,
CHECK
THAT
YOUR
MEMORY
UPGRADE
MODULE
IS
PROPERLY
INSTALLED
. (I
F
THE
MODULE
IS
PROPERLY
INSTALLED
AND
THE
CAPACITY
IS
STILL
NOT
CORRECTLY
RECOGNIZED
,
SEE
T
ROUBLESHOOTING
ON
Memory Clips
