Hitachi HV-D30 - Manual (Page 60)

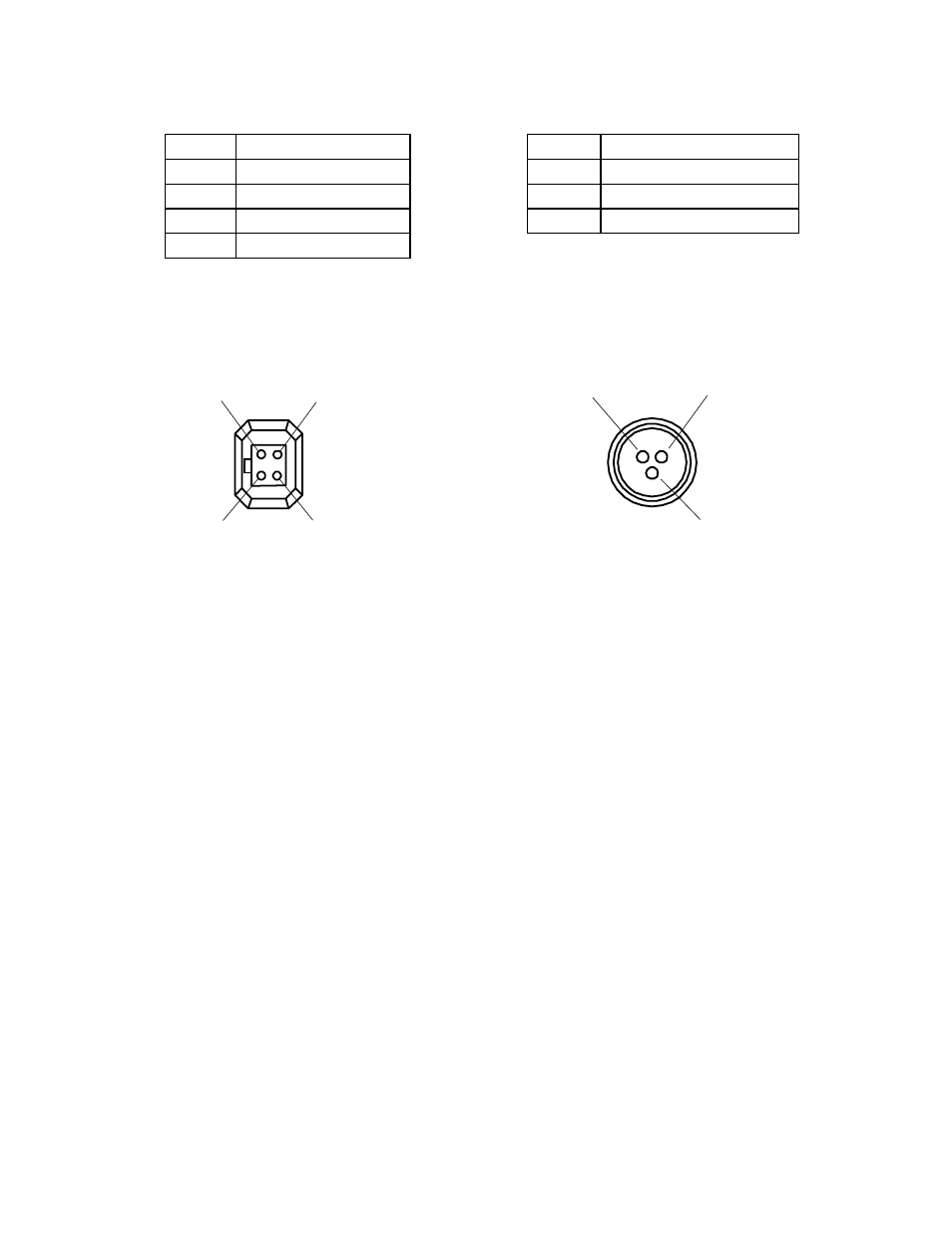

LENS connector (D4-151N-100) DC IN connector (R03-R3M2)
Pin No. Signal designation Pin No. Signal designation
1
+12V
A
GND
2
NC B +12V input
3
Control
C
NC
4
GND
Plug: E4-191J-100
Plug: R03-P3F
1
2 3
4
A
C
B
47
