Hitachi HV-D30 User Manual
Page 53

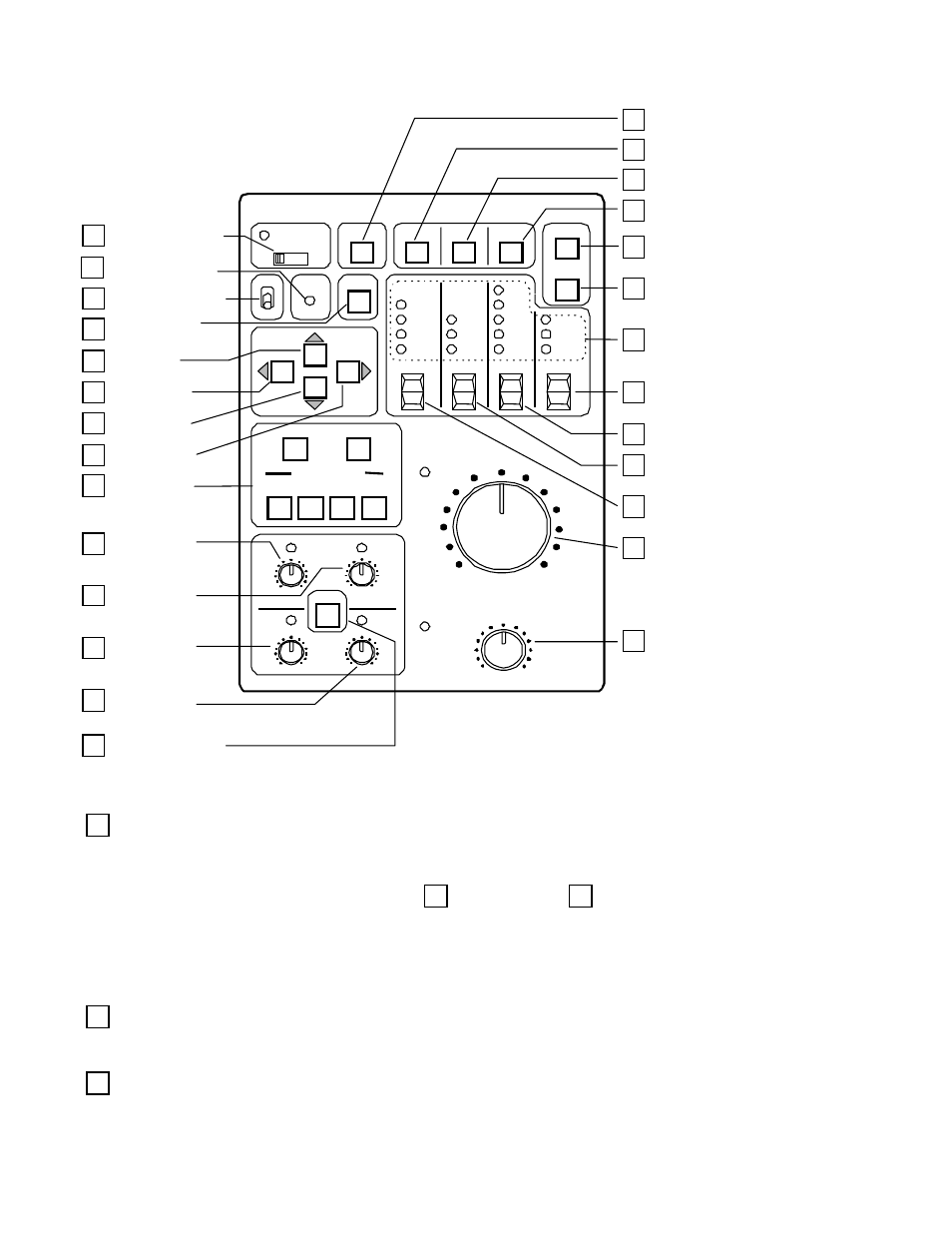

1. RC-Z3 panel facilities
2
10
11
12
13
14
CONTROL switch
EXTENDER
FUNCTIO
select button
AAA
UP
button
BAR/CAM switch
LEFT button
DOWN button
SCENE FILE
button
RIGHT button
R GAIN
Control
B GAIN
Control
R BLACK
Control
B BLACK
Control
ENABLE button
M.BLACK Control
15
TALLY/CALL button
4
3
5
6
8
7
9
27
16
SHUTTER button
17
CONTRAST button
18
ULTRA GAIN button
19
Mode indicator LEDs
20
A.WHT button
21
A.BLK button
22
WHITE BALANCE
mode select switch
23
GAIN switch
24
IRIS Control
25
IRIS switch
CONTROL
.1%-
ON
OFF
TALLY/CALL
SHUTTER
CONTRAST
7.64#
GAIN
A.WHT
A.BLK
HIGH
NORM
LOW
8#4
F$
GAIN
AUTO
MEM
PRESET
18
6
0
-3
DTL
IRIS
WHIT
$#.
MANU
REMOTE
AUTO
EXTENDER
FUNCTION
PRESET
STOR'
1
2
3
4
SCENE FILE
GAIN
'0#$.'
BLACK
M.BLK
IRIS
CAMERA CONTROL PANEL RC-Z3
BAR
CAM
26
DTL
switch
1
ULTRA
40
CONTROL switch
ON (red LED) : Normal camera control from.
LOCK (red LED): All controls and switch RC-Z3 has locked at present settings,
except IRIS and M. BLK . Prevents accidental or
unauthorized operation.
OFF (green LED): Operation inhibited from RC-Z3. Operate from camera controls
and switches.
EXTENDER LED
This Extender LED is always extinguished using with the HV-D30 camera.
BAR/CAM switch
Selects the camera output signal.
BAR:: Color bar signal output
CAM:: Camera video signal output
