10
5) Install the bin control thermostat as follows:
a. Remove the baffle from the bin.
b. Remove the tie securing the bin control thermostat assembly. Remove the
2 thumbscrews.
c. Remove the bin control thermostat assembly from the shipping hook by lifting it up
and shifting it to the right. Lower the thermostat extension bracket (stainless) with
the thermostat bulb attachment and thermostat bulb through the hole located at the
bottom of the icemaker. Next, lower the thermostat bracket (plastic) through the hole.
d. Make sure the left side and bottom of the assembly are flush against the wall and
base panel.
e. Secure the assembly into place with the thumbscrews (unless you are installing a
second unit). (See "II.E. Installation of Second Unit.")
f. Insert the plug into the receptacle on the assembly until it locks into place.
g. Remove the 2 screws from the lower part of the thermostat bracket (plastic) and use
them to attach the thermostat extension bracket (stainless) to the thermostat bracket
(plastic).
6) Level the icemaker and storage bin in both the left-to-right and front-to-rear directions.
Adjust the storage bin legs to make the icemaker level.
7) Make sure the icemaker and storage bin are properly secured.
8) Seal as required by sanitation code.
9) Replace the panels and baffle in their correct positions unless you are installing a
second unit. If installing a second unit, see "II.E. Installation of Second Unit."

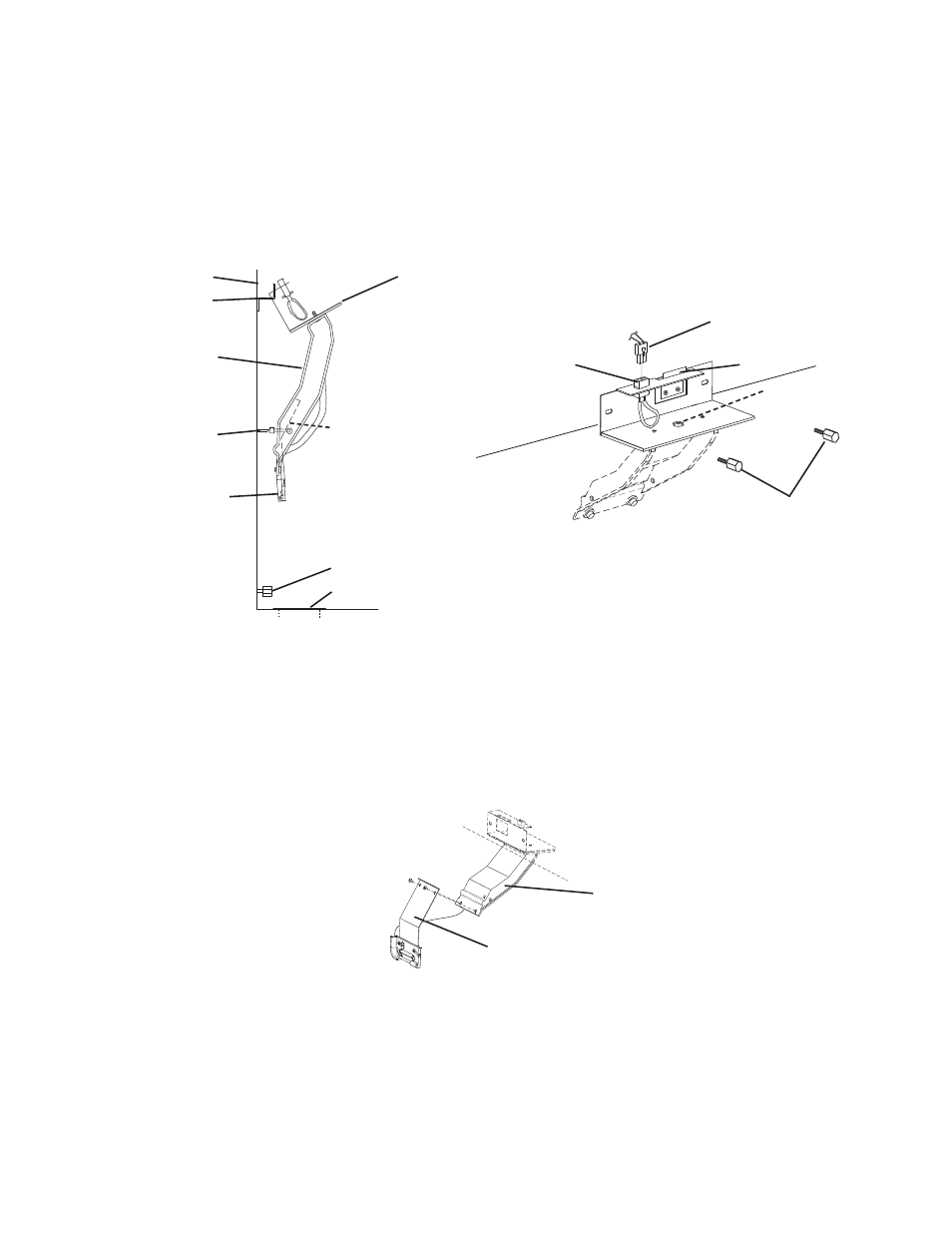

Fig. 3
Bin Control Thermostat Assembly
Shipping Hook
Thermostat Bracket
(plastic)
Tie
Thermostat Bulb
Attachment (plastic)
and Thermostat Bulb
Thumbscrews
Thermostat Extension
Bracket (stainless)
Hole
Wall
Plug
Receptacle
Thumbscrews
Hook
Bushing
Thermostat Bracket
(plastic)
Thermostat Extension
Bracket (stainless)
Fig. 4
