REAR-PANEL CONNECTIONS

¡ Video 4 Inputs
™ Video 3 Inputs
£ Video 2 Outputs
¢ Video 2 Inputs
∞ Video 1 Outputs
§ Video 1 Inputs
¶ DVD Inputs
• Multiroom Audio Outputs
ª Video Monitor Outputs
‚ CD Inputs
⁄ Tape Outputs
¤ Tape Inputs

‹ Preamp Outputs
› Subwoofer Output
ﬁ 8-Channel Direct Inputs
ﬂ Coaxial Digital Audio Inputs
‡ Optical Digital Audio Inputs
° Optical Digital Audio Output
· Coaxial Digital Audio Output
a RS-232 Port
b AC Power Cord Jack
c Unswitched AC Outlet
d Switched AC Outlet
e Front Speaker Outputs

f Surround Speaker Outputs
g Surround Back/Multiroom Speaker Outputs
h Center Speaker Outputs
i Component Video 1 Inputs
j Component Video 2 Inputs
k Component Video Monitor Outputs

Multiroom IR Input
Remote IR Input
Remote IR Output
A-BUS Connector
FM Antenna Jack
AM Antenna Terminals

NOTE: To assist in making the correct connections
for multichannel input, output and speaker connec-
tions, all connection jacks and terminals are color-
coded
in conformance with the CEA standards as follows:

Front Left:

White

Front Right:

Red

Center:

Green

Surround Left:

Blue

Surround Right:

Gray

Surround Back Left:

Brown

Surround Back Right:

Tan

Subwoofer:

Purple

Digital Audio:

Orange

Composite Video:

Yellow

Component Video “Y”: Green
Component Video “Pr”: Red
Component Video “Pb”: Blue

REAR-PANEL CONNECTIONS

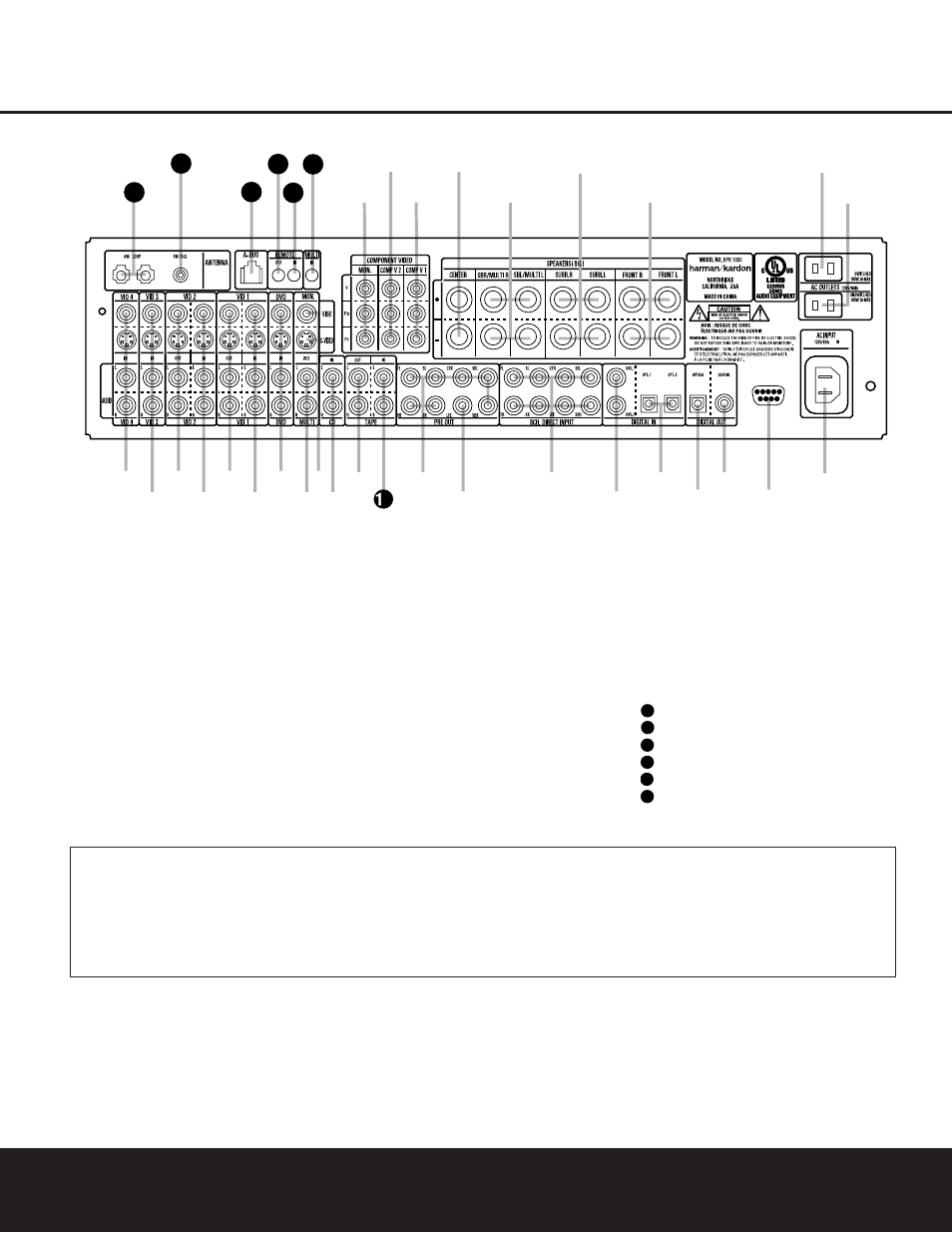

NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product at
www.harmankardon.com.

™

∞

⁄
