Page 20
.
A complete Parts List is available at wwwHobartWelders.com
OM-240 438 Page 16

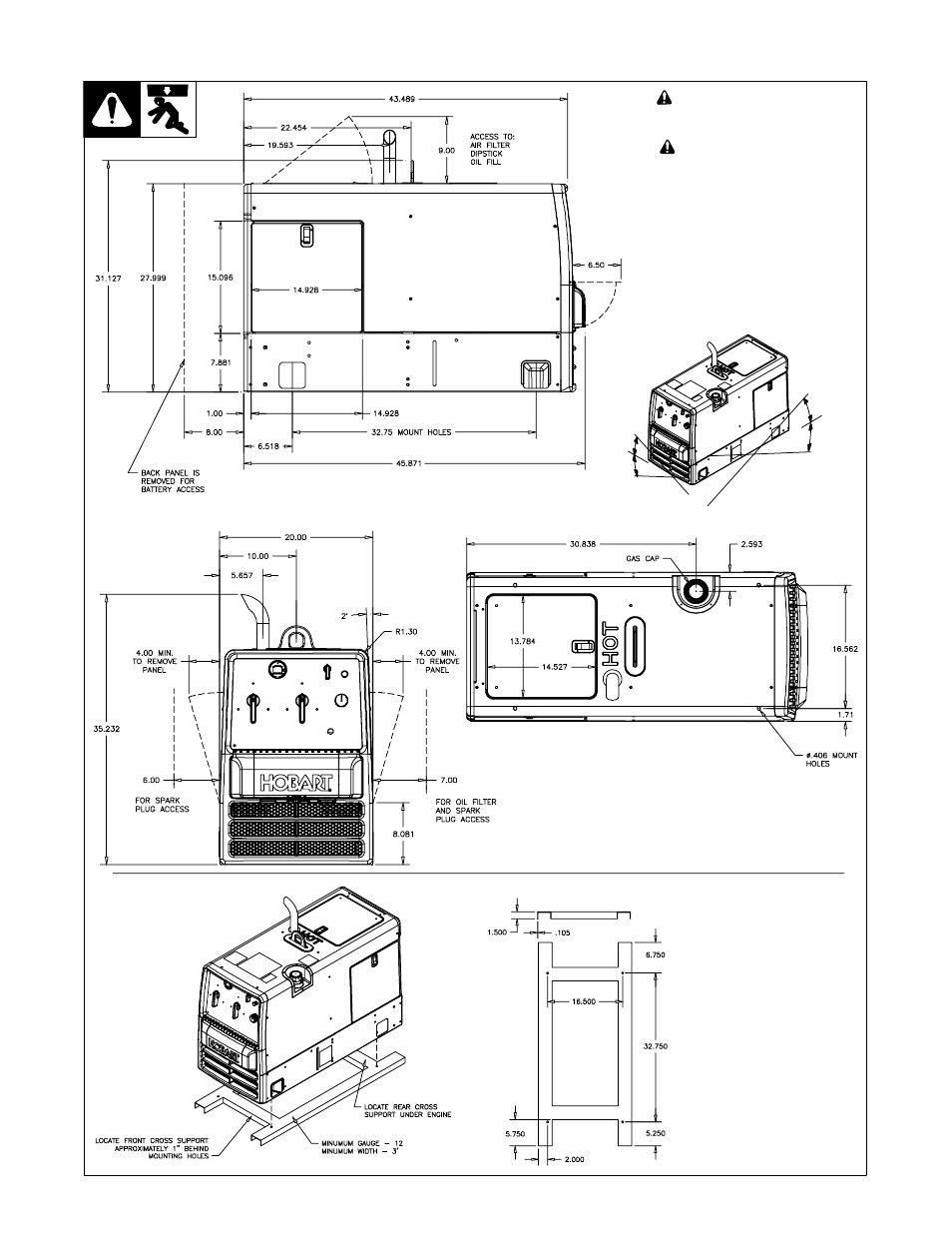

4-2. Dimensions, Weights, And Operating Angles
244 029-A / 244 030-A / 244 031-A
20
°
20
°
20
°
20
°
!
Do not exceed tilt angles or
engine could be damaged or
unit could tip.
!
Do not move or operate unit
where it could tip.
Weight: 562 lb (254 kg)
Lifting Eye Weight Rating: 1280
lb (580 kg)
Support Assembly Dimensions
