8
43553-01 • 05/15/09 • Hunter Fan Company

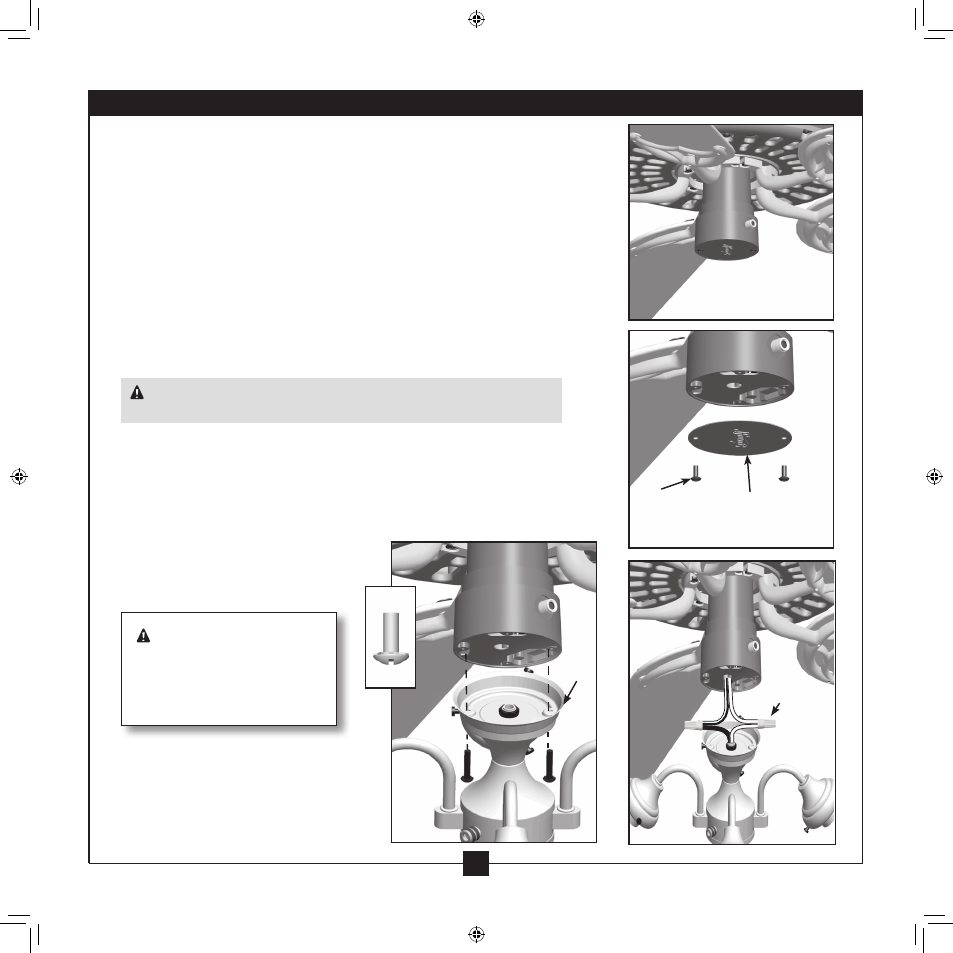

1. Uninstall the two screws from the switch housing plate.
NOTE: Save the switch housing plate should you choose to remove the
light fixture in the future.
2. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black wire with a white stripe. Thread the two wires through
the hole in the center of the light fixture.
3. To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the black/white striped wire from the switch housing to the black
wire from the light fixture. Connect the white wire from the switch housing
to the white wire from the light fixture. Secure all wire connections using
wire connectors.
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections.
4. Attach the light fixture to the switch housing with the two screws,
included with the light fixture, aligning the holes in the fixture, switch
housing cover, and switch housing.
5. Securely tighten the two screws.
6. Go to the instructions for Installing the
Bulbs and Shades.
Switch
Housing
Plate
Screw
Light
Fixture
Steps 3-6
Wires
and Wire
connectors
WARNING: Improper
installation could cause
the light fixture to fall, or
result in electrical shock or
personal injury.
3 • Installing the Light fixture on the Hunter Originals
