5
43553-01 • 05/15/09 • Hunter Fan Company
1 • Installing the Light fixture on Fans With Removable Switch Housing (Continued)

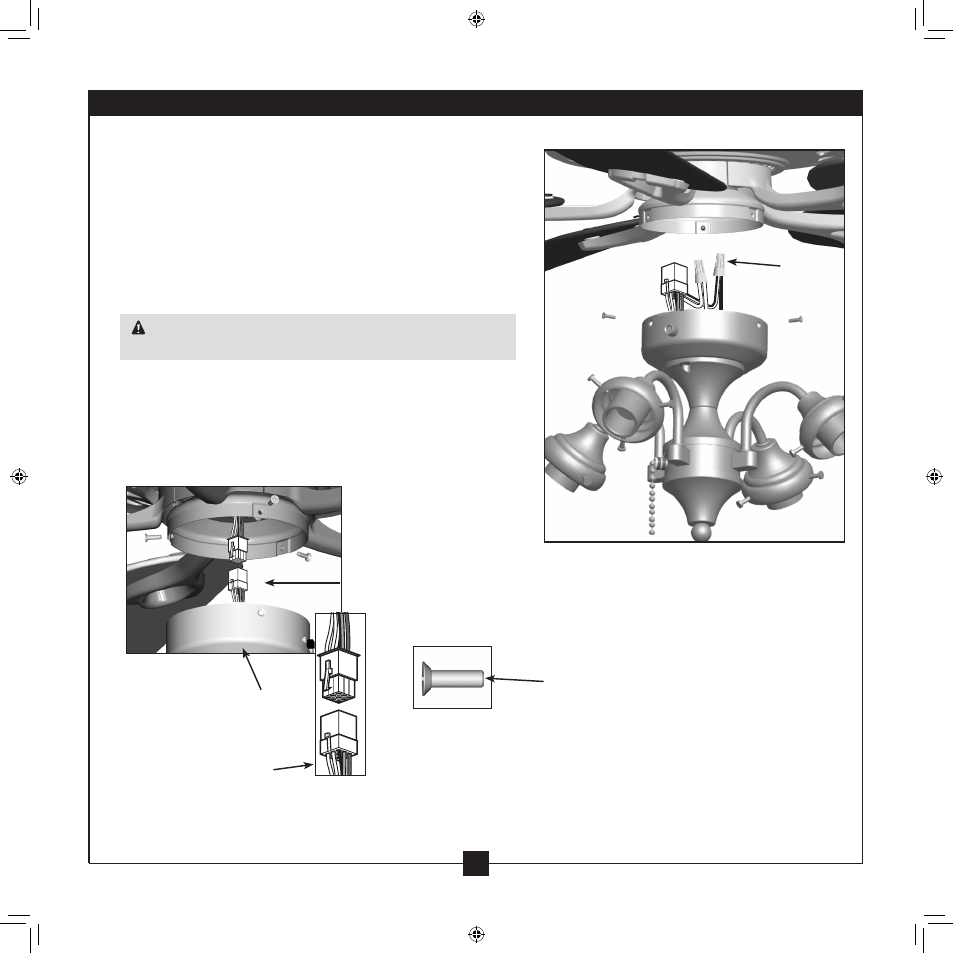

7. Remove the wire connectors from the two wires in the switch
housing labeled “Connect Light Here” or “For Light Use.”
To connect the wires, hold the bare metal leads together
and place a wire connector over them, then twist the wire
connector clockwise until tight.
Connect the black wire with a white stripe from the switch
housing to the black wire from the light fixture. Connect the
white wire from the switch housing to the white wire from the
light fixture. Secure all wire connections using wire connectors.
CAUTION: Be sure no bare metal wires or wire strands are
visible after making the connections.
8. Reconnect the 9-pin plug connector.
9. Reinstall screws to reattach the lower switch housing to the
upper switch housing.
10. Go to the instructions for Installing Bulbs, and Shades.
Wires
and Wire
connectors
Step 7
Plug
Connector
Lower Switch
Housing
Housing
Assembly Screw
Plug
Connector
Detail
Steps 8-9
