Hunter Fan PH20-30A User Manual
Page 19

*
General

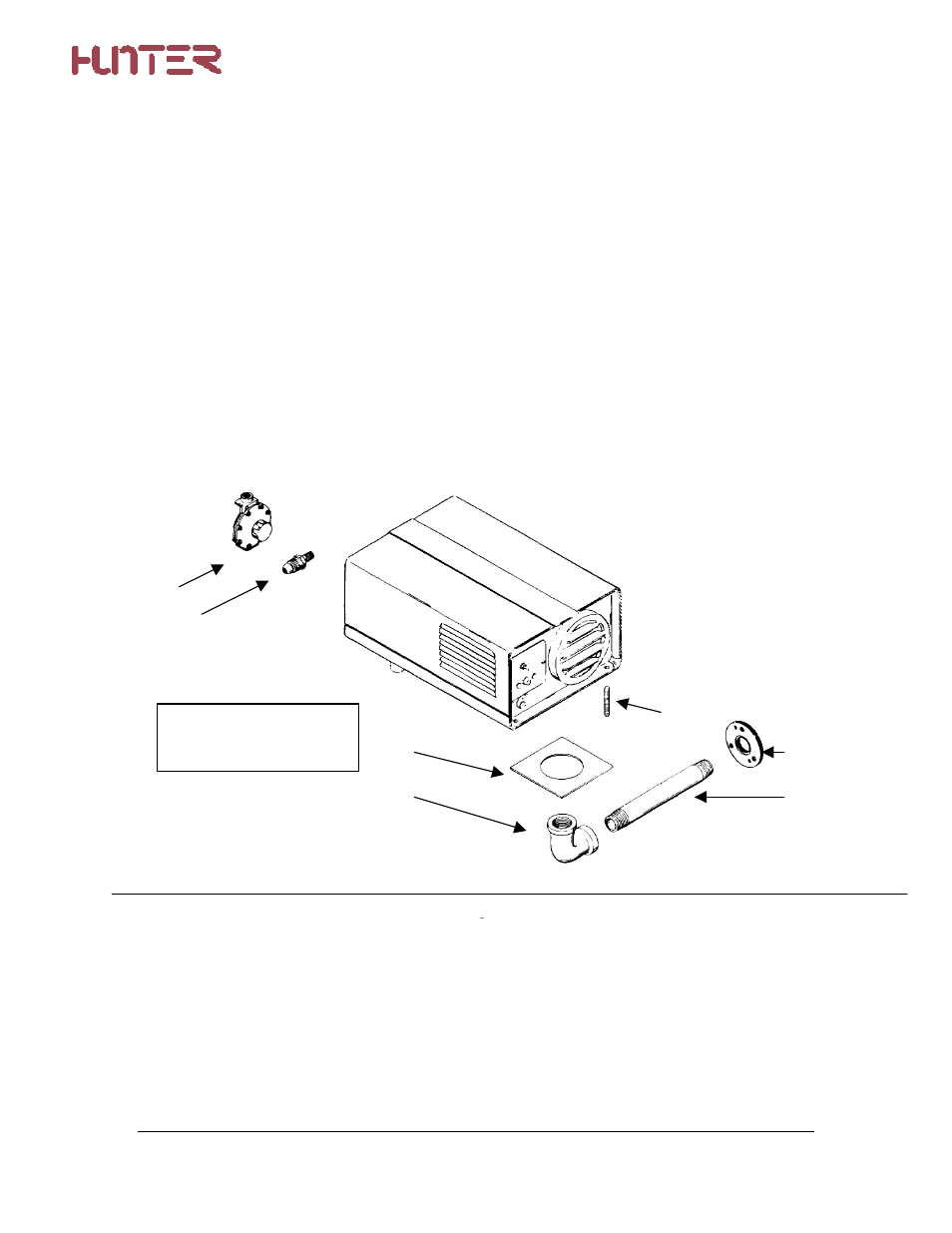

This section lists and illustrates the major parts of your model PH20-30A Hunter
heater. In general, attaching parts such as screws, nuts and lock washers have not been
listed or illustrated since their application is obvious. If a part has not been assigned a
part number, or the abbreviation COML appears, the part can be replaced with a
commercially available equivalent.
All available service kits are listed. Parts shown with an asterisk ( * ) are available only
as part of a kit.
(
1
2
3
5 4
6 7
Index Number Part Number Description
*1
88301-T
Regulator
*2
88014
POL Conn.
**3
49084
¼ -20 Stud
**4
51718
Exhaust Collar Assy.
**5
49091
Heat Shield
**6
47006
1 ¼“ Pipe Elbow
**7
47008
1 ¼” Pipe X 8"
* 88301 Regulator Kit
** 50930 Exhaust Kit
