Henny Penny SCR-16 16-spit - Manual (Page 2)

Heating: Electric convection and radiant heat
Lighting: (8) 150W tungsten halogen lamps
Capacity: 2 ½ lbs. (1.1 kg) whole birds
Angled spits
64 whole birds, 4 per spit
Piercing spits 80 whole birds, 5 per spit
Basket 64 whole birds, 4 per spit
Electrical
Each cabinet wired separately. Specifications below are per cabinet.
© 2006 Henny Penny Corporation, Eaton, OH 45320 USA Revised 11/27/07
Continuing product improvement may subject specifications to change without notice.
PROJECT ITEM NO
www.hennypenny.com

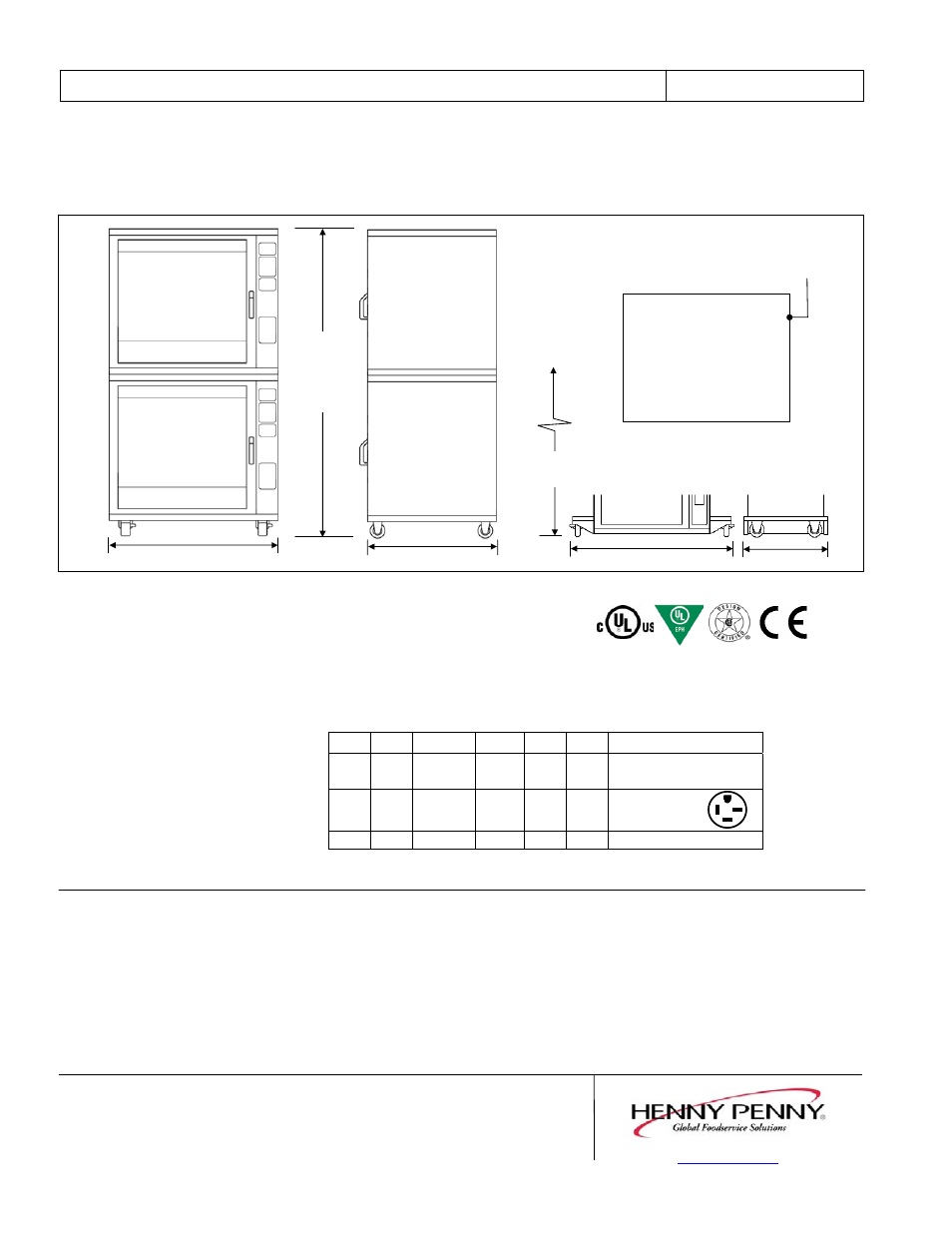

FRONT
Dimensions
Height:
80 ¼ in. (2039 mm)
Width: 40 5/8 in. (1032 mm)
Depth: 29 7/8 in. (759 mm)
Required clearances:
Left:
2 in. (50 mm) air flow
Right: 20 in. (500 mm) service access,
power cord
Back: 32 in. (813 mm) door open
Front: 32 in. (813 mm) door open
Crated dimensions: (2) crates
Length:
48 in. (1219 mm)
Depth: 37 in. (940 mm)
Height: 48 in. (1219 mm)
Volume: 49.3 cu. ft. (1.40 m 3 )
Net weight N/A
Crated weight: 942 lbs. (428 kg)
Water connections: N/A
Bidding Specifications
• Provide Henny Penny model SCR-16
twelve-spit stacked electric rotisserie.
Stacked units are comprised of (2) SCR-8
rotisseries joined with stacking kit.
• Units shall be constructed of high-quality
stainless steel interior and exterior, with
tempered door glass.
• Units shall feature patented Therma-Vec
Even Heat Process that combines cross-
flow convection heat with radiant heat for
fast, even cooking and browning.
• Units are programmable and feature large
LED displays for time and temperature.
• 2 food probes and probe cooking capability
is standard.
• Units shal provide customer-controlled
browning levels that can be entered as part
of a cooking program.
• Choice of solid back or pass-through (2
doors) design.
• Choice of handle, curved outer door glass
and rotation switch for customer side and
control side.
• Choice of (16) angled or piercing spits, or
baskets is standard.
• Spits, rotor disks, drive tube and drip trays
are removable and are available coated.
• Choice of (4) 4 in. (102 mm) casters, low
profile casters, or leveling legs, standard.
• Power cord and plug are shipped with 3-
phase units, USA and Canada destinations.
PLAN
(2) electrical connections required,
one for each cabinet. Located at
side near bottom of each cabinet.
MODEL
SCR-16 16-spit
80 ¼ in.
(2039 mm)
Height includes
standard 4 in.
(102 mm)
casters
Rotisserie
Stacked electric
40 5/8 in. (1032 mm) 29 7/8 in. (759 mm) 50 7/8 in. (1293 mm) 33 7/8 in. (857 mm)
Lower overall height:
77 in. (1956 mm)
SCR-16 Low profile caster mounting
Volts Phase Cycle/Hz Watts Amps Wire Plug
208 1 50/60 11100 50.5 2+G
240 1 50/60 11100 46.0 2+G
N/A
208 3 50/60 11100 33.6 3+G
240 3 50/60 11100 29.1 3+G
NEMA 15-50P
G
X
Z
Y
400 3 50 11100 19.3 3NG N/A
Laboratory certifications
