Parts
311845C 9
Parts

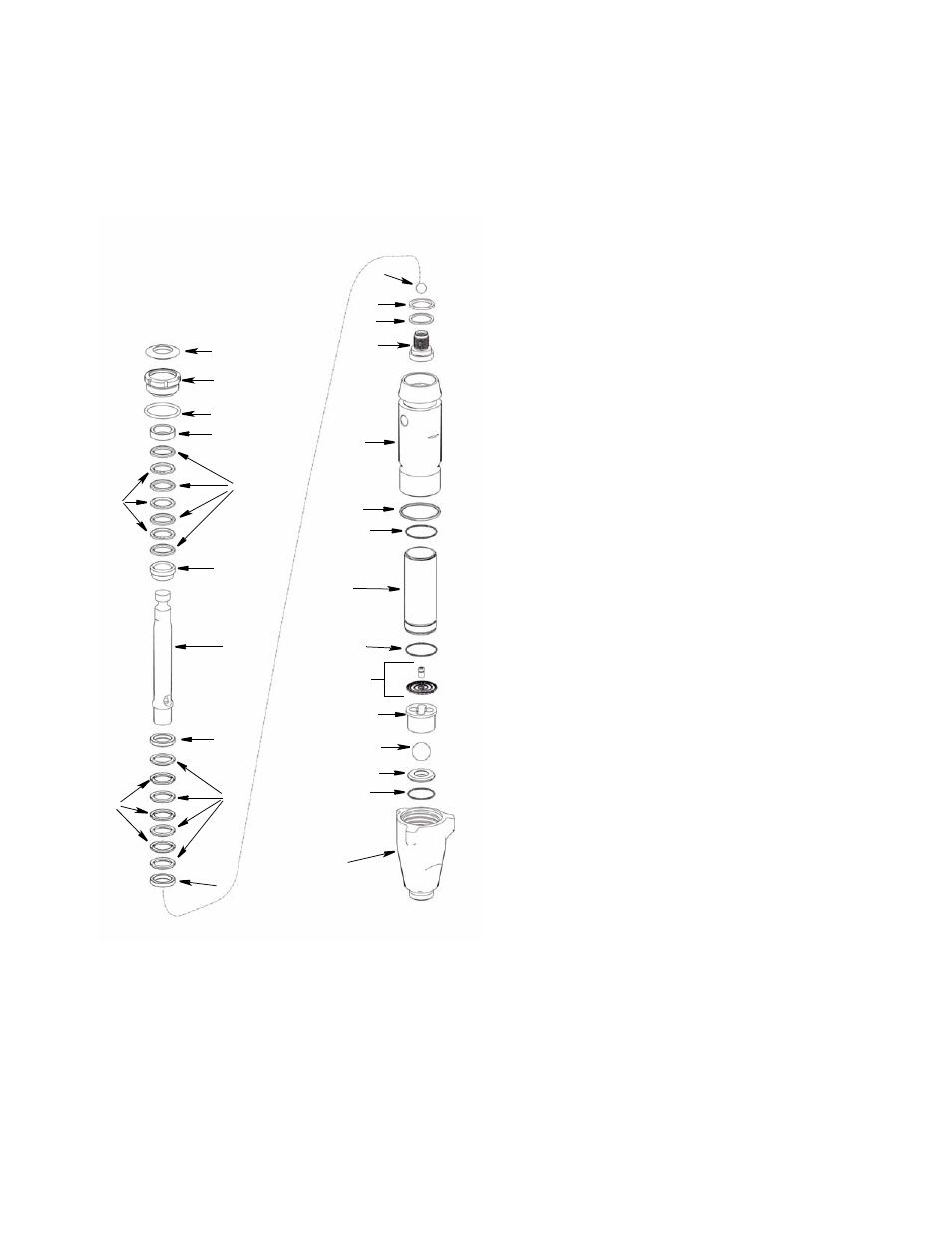

Model 288467/288468
* Included in Repair Kit 287813
† Included in Repair Kit 240918
ti8826a
24
3
25
23
8
21
20
5
11
12
13
6
2
15
14
4
14
18
19
16
17
1
26
7
8
9
10
Ref Part Description Qty
1 15E655 HOUSING 1
2 288482 CYLINDER (model 288467) 1
288483 CYLINDER (model 288468)
3 15J792 NUT, packing 1
4 249121 SLEEVE, cylinder (model 288467) 1
287817 SLEEVE, cylinder (model 288468)
5 288469 ROD, piston (model 288467) 1
288470 ROD, piston (model 288468)
6 249177 VALVE, piston 1
7* 189585 GLAND, packing, male 1
8* PACKING,VEE (blue) 8
9* PACKING,VEE (brown) 3
10* 189588 GLAND, packing, female 1
11* 107203 BALL, valve, check 1
12* 119636 WIPER, piston 1
13* 15J800 WASHER, back up 1
14* 108822 PACKING, o-ring 2
15* 107306 PACKING, o-ring 1
16† 240918 SEAT, carbide 1
17†* 107098 PACKING, o-ring 1
18 198505 GUIDE, ball 1
19†* 107167 BALL,SST 1
20* 15G658 GLAND, male 1
21* PACKING,VEE (leather) 3
23* 15G657 GLAND, female 1
24* 112590 PLUG, throat, seal 1
25* 108832 PACKING, o-ring 1
26* 245256 SPRING, intake ball 1
