Hitachi 288466 - Manual (Page 11)

Parts
311845C 11
Model 288819
* Included in Repair Kit 288820
† Included in Repair Kit 245885
ti9569a
24
3
25
23
8
9
20
5
12
13
11
6
2
15
14
4
14
18
19
16
17
1
26
7
8
9
10

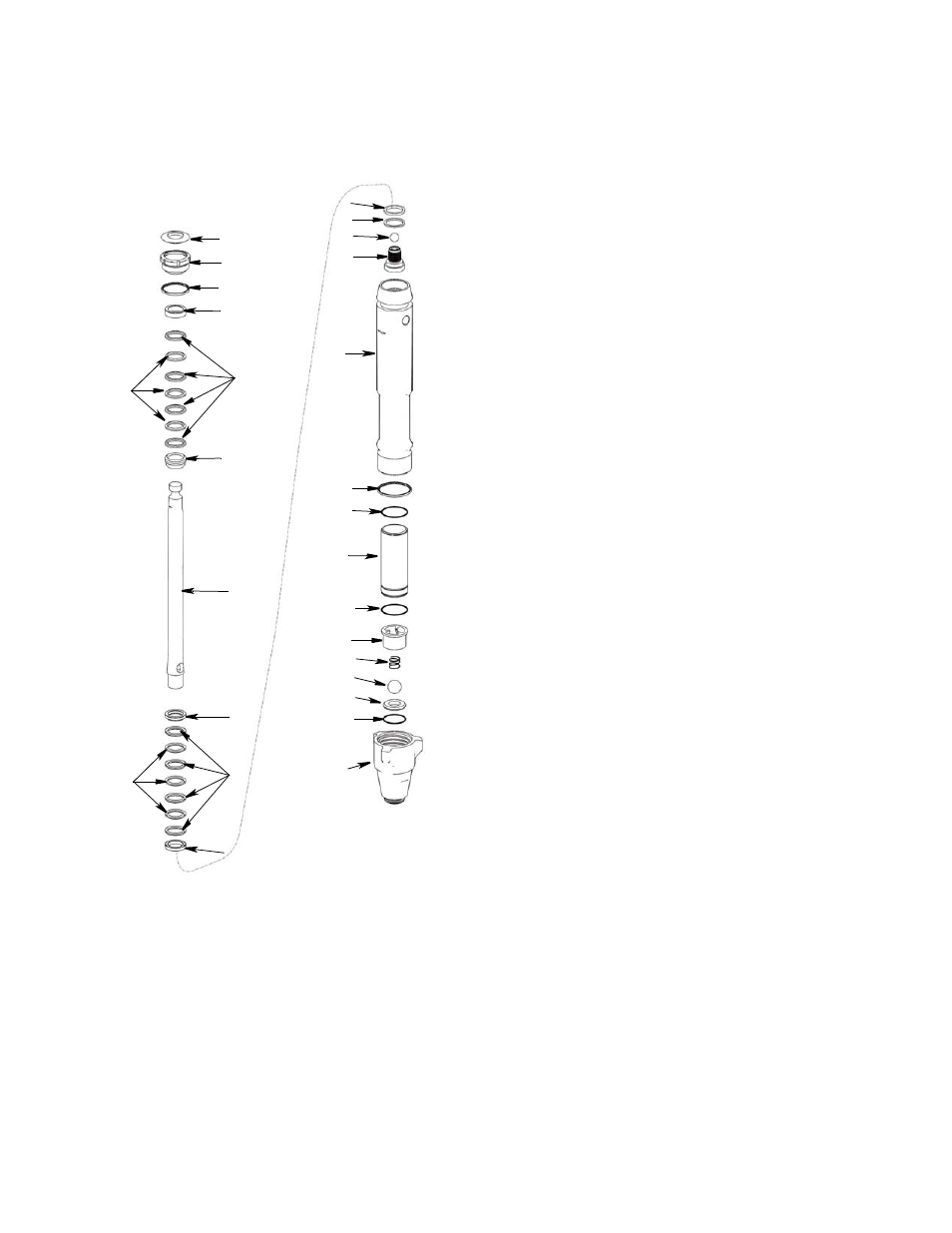

Ref Part Description Qty
1 15A303 HOUSING, intake 1
2 288822 CYLINDER, pump 1
3 15J792 NUT, packing 1
4 248979 SLEEVE, cylinder 1
5 288821 ROD, piston 1
6 249177 VALVE, piston 1
7* 189585 GLAND, packing, male 1
8* PACKING, vee, blue 8
9* PACKING, vee, leather 6
10* 189588 GLAND, packing, female 1
11* 118601 BALL, ceramic, 0.5625 dia 1
12* 119636 WIPER, piston 1
13* 15F183 WASHER, backup 1
14* 108822 PACKING, o-ring 2
15* 107306 PACKING, o-ring 1
16† 245885 SEAT, carbide 1
17†* 107098 PACKING, o-ring 1
18 15D158 GUIDE, ball 1
19†* 118602 BALL, ceramic, 0.875 dia 1
20* 198768 GLAND, packing, male 1
23 194175 GLAND, female 1
24* 112590 PLUG, throat seal 1
25* 108832 PACKING, o-ring 1
26† 118600 SPRING, compression; optional,
not included with pump
1
