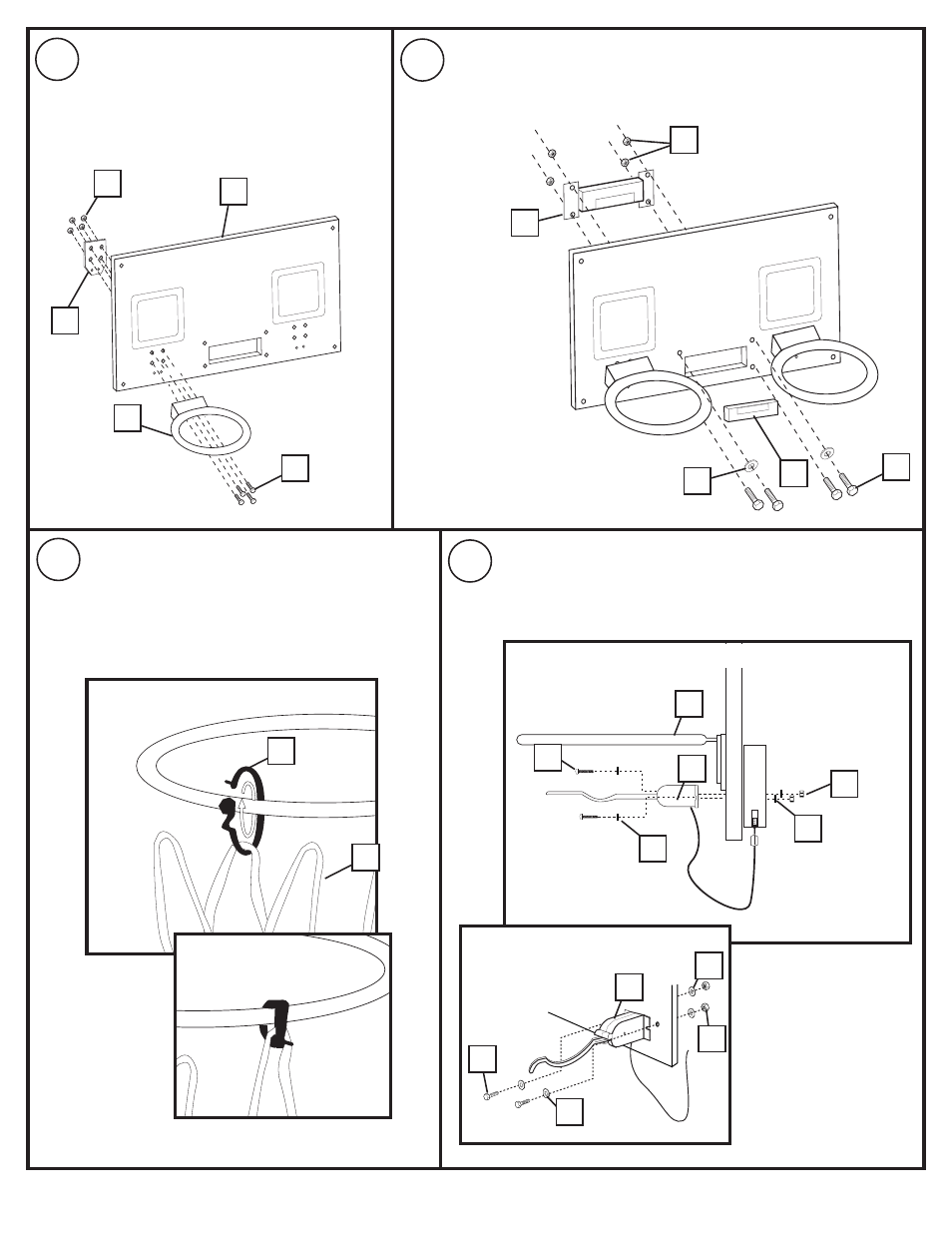

Attach rims (17) to backboard (13)
with bolts (30), back plates (22),
and nuts (32) as shown.
Repeat for opposite side. Attach score keeper (15) to backboard with bolts (24),
washers (33) and nuts (25). Attach lens (18) to front of
score keeper (15) as shown.
Attach nets (19) with net clips (26) as
shown. NET SHOULD REST IN SLOT
ON CLIP AS SHOWN FIG. B.
1. 2.
3.
32
13
17
30
15
24
18
22
Attach scoring paddles (16) onto backboard
below rims (17) with bolts (24) washers (33) and
nuts (25). Plug wires from paddles into scoring
unit as shown.
4.
19
16
16
17
24
25
25
24
33
33
33
33
26
FIG B.
DO NOT ENTANGLE WIRES FROM PADDLE IN NET
