6

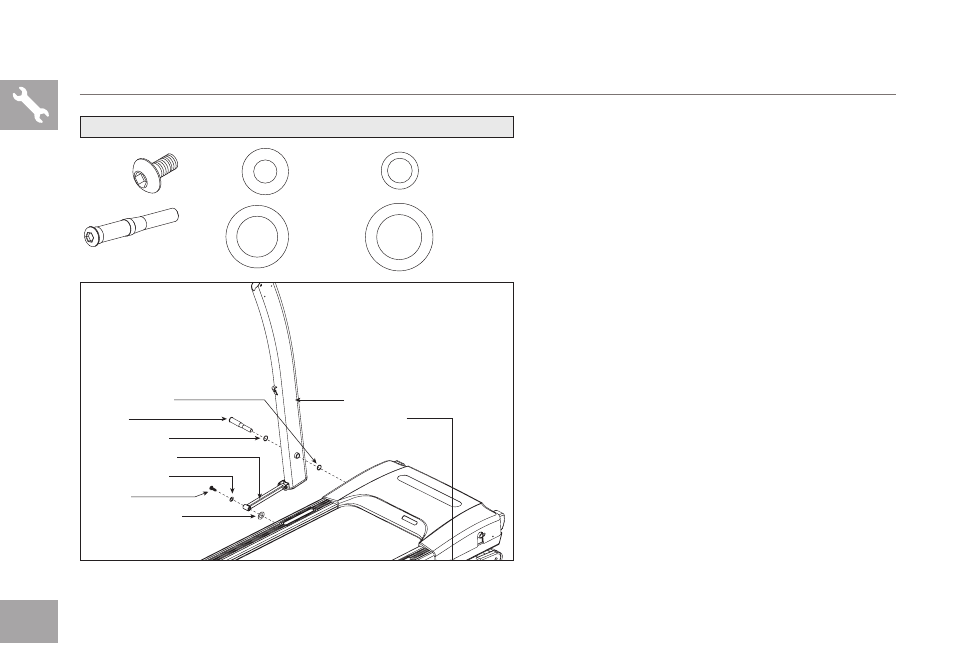

ASSEMBLY STEP 1
A Open HArDWArE bAG 1.
B Cut banding straps. Do not move or lift treadmill
from packaging.
C Move LEfT LinKAGE ArM into position.
Insert boLT (A) and fLAT WASHEr (b) into
LEfT LinKAGE ArM followed by a TEfLon
WASHEr (C) and attach to elevation frame.
D Lift LEfT ConSoLE MAST into upright
position. Be sure to hold the console mast
firmly, as it will not stay in the upright position on
its own.
E Insert boLT (D) and 1 fLAT WASHEr (E)
through LEfT ConSoLE MAST followed by
a WAvy WASHEr (f) and attach to MAin
frAME.
FLAT WASHER (B)
20 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1 BOLT (D)
Qty: 1
BOLT (A)
15 mm
Qty: 1 TEFLON WASHER (C)
18 mm
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
HArDWArE bAG 1 CONTENTS :
BOLT (D)
FLAT WASHER (E)
WAVY WASHER (F)
MAIN FRAME
LEFT CONSOLE MAST
BOLT (A)
FLAT WASHER (B)
LEFT LINKAGE ARM
TEFLON WASHER (C)
