Set broom in transport position. Stop tractor

engine,

set parking brake and remove ignition

key.

Set broom storage stands in most extended

position so that stands extends the broom

bristles.

Remove

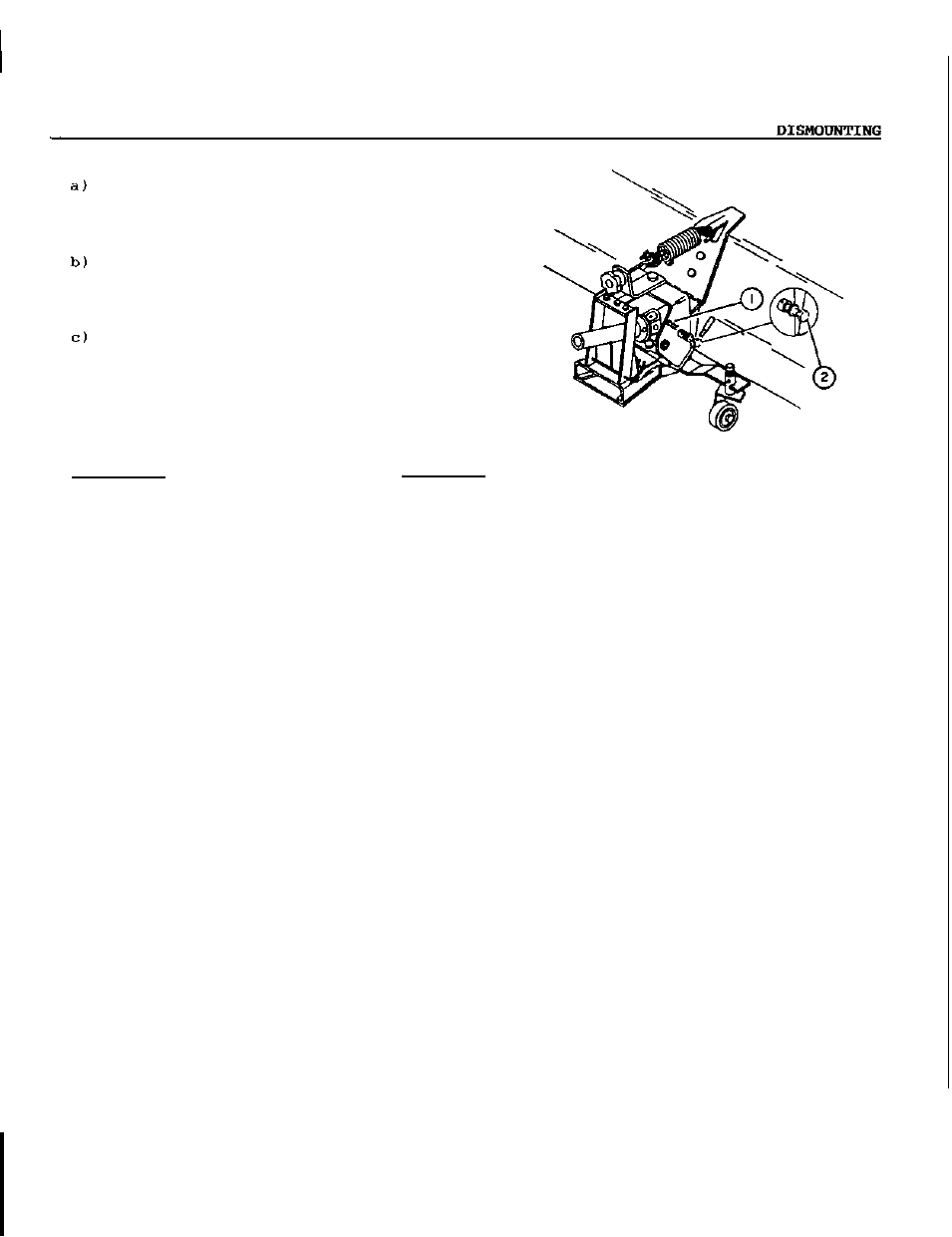

hair pin (fig.1, item 1) from welded

sleeve on right hand side of broom mounting
bracket. Set pin (fig.1, item 2) in the
in most position (you may have to slightly
raise broom head) and lock in place with
hair pin.

IMPORTANT:

Once the broom is fully remounted,

this

has to

be set in its most extended

position in order to allow the broom to follow

ground variations.

d) Carefully lower broom so

it rest

on the

storage stands.

e) Disconnect broom driveline from tractor PTO

shaft

and place driveline on

its support

located on female hitch.

f) Remove linchpin from quick hitch latch.

Place male hitch lever. rearward in "unlocked"

position.

g) Carefully back tractor away from broom.

OM 0180

FIGURE
