1
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.

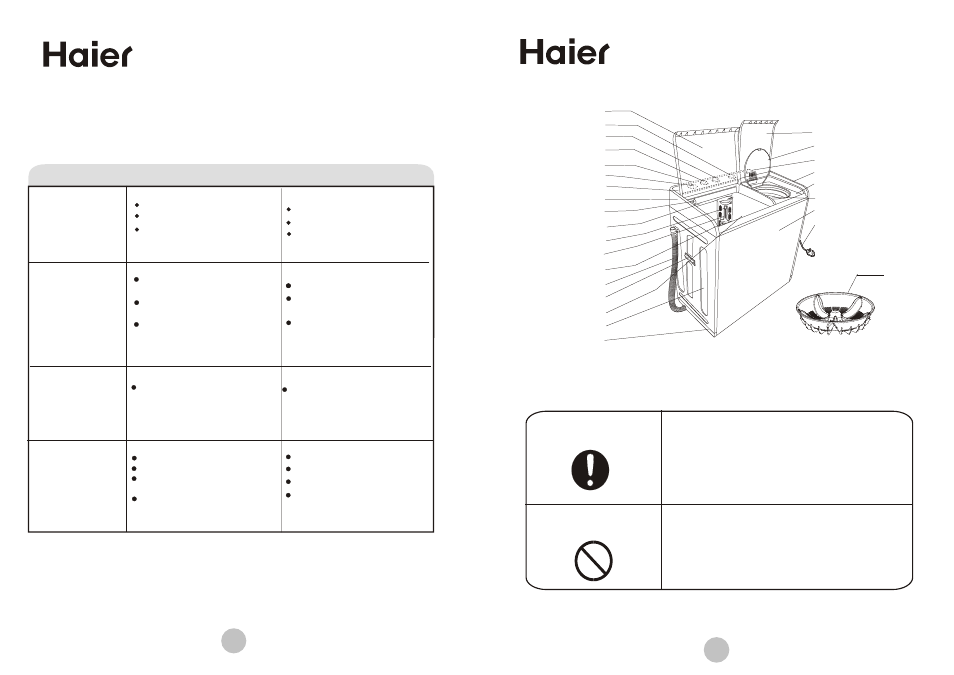

Names of the parts
Control panel seat
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Front door
Power cord
Control panel
Bypass channel
Overflow filter
Water level adjust lever
Water filling control handle
Drain hose
Cabinet handle
Wash tub
Base frame
Lint filter
Cabinet
Plate support(right)
Wash timer
Water-filling entrance
Plate support (left)
Drain selector
Wash tub cover
Pulsator
Wash selector
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending
it to repair. If there are real breakdowns, please come to the special maintenance
department or after-sale service department of our company. Do not repair it by yourself.
Trouble-shooting Answers to question
Phenomena
Use it when the power is on.
Insert the power plug tightly.
Remove the foreign materials?
Put down the drain hose?
Remove the foreign material?
Please contact the after-sales
service department.
Level the machine properly.
Pressed the gland evenly
Remove the laundries
Remove a little laundries
The reason How to settle
The machine does
not function.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by
foreign materials?
Has the drain hose being
laid down?
Is the drain hose blocked
by foreign material?
Are there any laundries
trapped at the outer side
of the spin tub?
There's abnormal
sound during
washing Remove the hair pin, coins or
metal items Are there hair pin, coins
or meta items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are there any laundries trapped
at the outer side of the spin tub?
Are the laundries in spin tub over
loaded?
There's abnormal
sound and violent
vibration during
spinning
The draining does
not function
16
