Honeywell HMLCD15 - Manual (Page 13)

Rev. A 10 HMMU000880
04/08/04

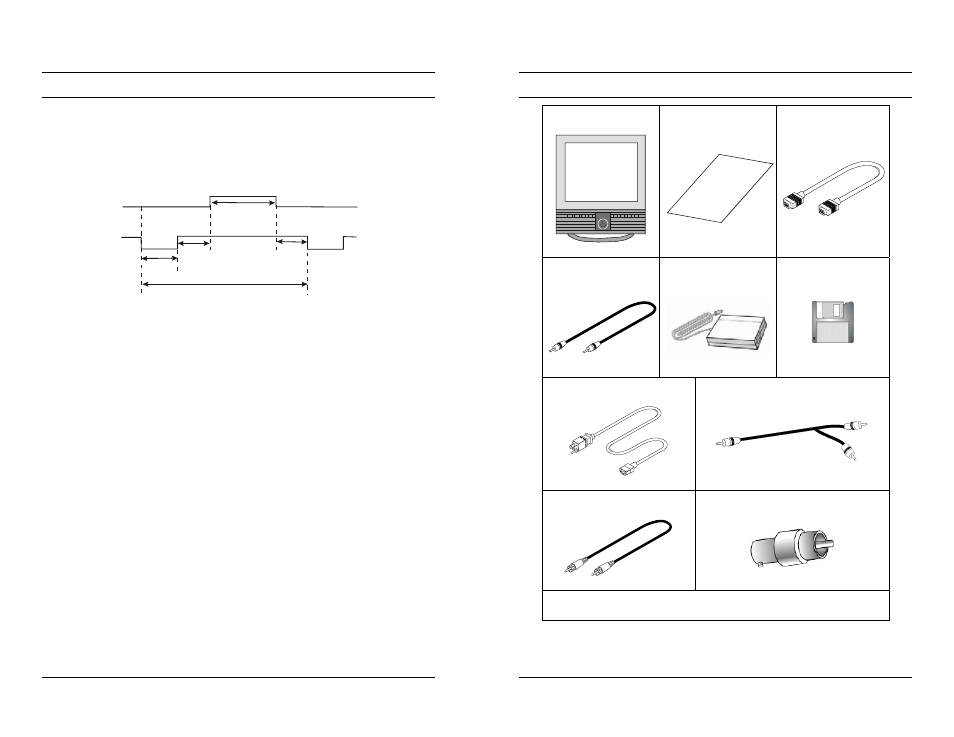

3.2 PRESET MODE CHART
Timing Charts
The monitor shall be capable of supporting the following video
timings:
VIDEO
SYNC
Synch Width (T2)
(T3) Back Poach
(T1) Period
(T4) Active
(T5) Front Poach
Input Timing Limits
H-Sync Pulse Width 1.0 µs ≤ Sync Pulse Width ≤ 6.0 µs.
V-Sync Pulse Width 0.04ms ≤ Sync Pulse Width ≤ 0.5ms
NOTE: If the width of Sync Pulse is out of input timing range,
the monitor may operate abnormally. Check Sync
Pulse Width of Input Timing.
Input Level Limits
Low level: 0.4V (Max)
High level: 2.4V (Min)
NOTE: For better quality display image, use the timing and
polarity shown in the preset mode table. Refer to your
video card’s user guide to ensure compatibility.
Rev. A 3 HMMU000880
04/08/04
1.4 CONTENTS OF PACKAGE
1. LCD Monitor 2. User Manual 3. VGA Cable
USER
MANUAL
4. Sound Cable 5. AC/DC
Adapter
6. Installation
Disk
7. Power Cord 8. Video Sound Cable
9. Composite Cable 10. BNC to RCA Adapters (2)
OPTIONAL ACCESSORIES: S-video cable, Wall Mount
adapter (VESA standard)
