1.10
ASSEMBLING THE MOWER

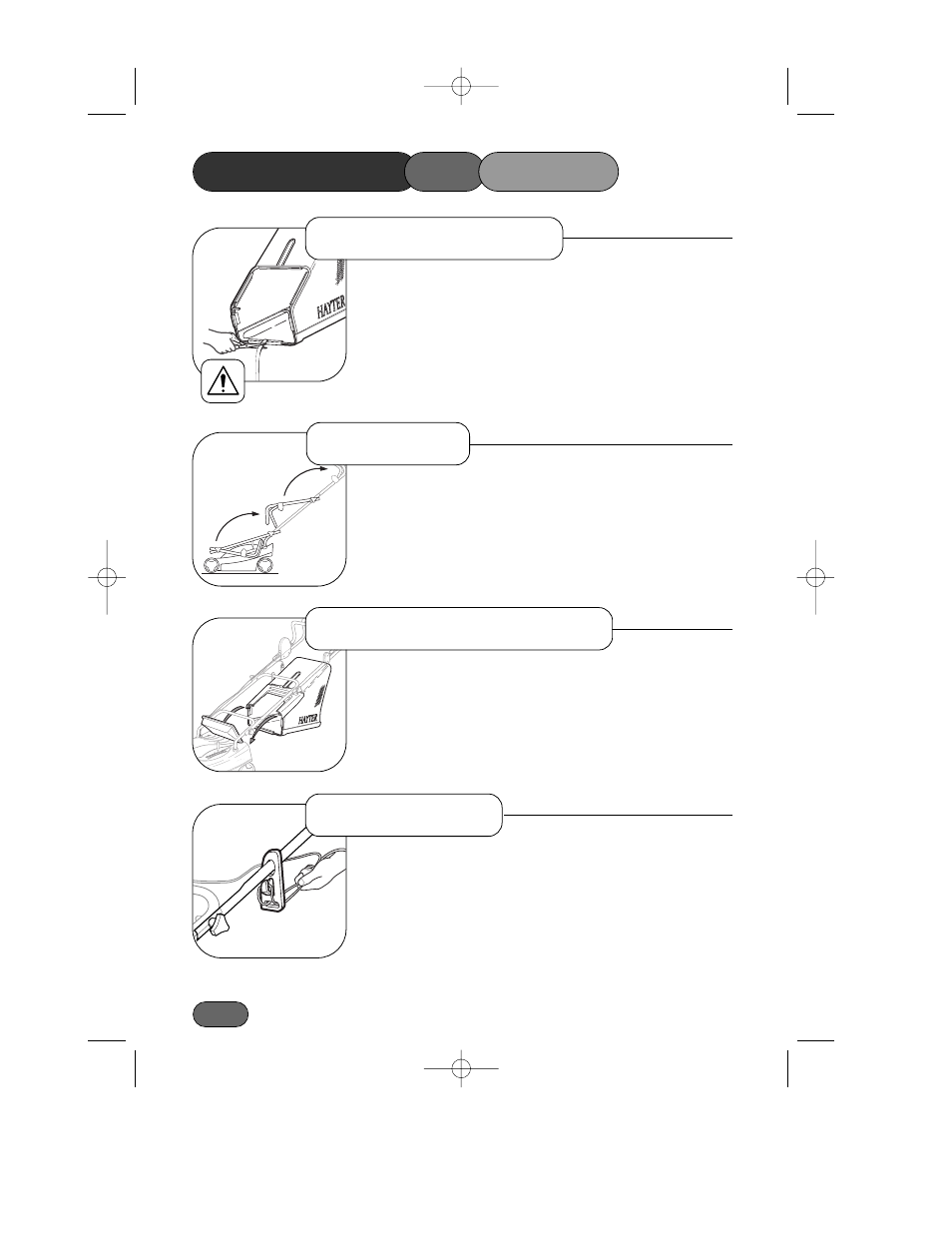

Remove the mower from the packaging and check that the following
items have been supplied correctly. If any items are missing contact,
your local Hayter dealer.
1. Instruction Sheet 2. Grassbag Frame 3. Grassbag Top Cover
4. Grassbag Fabric 5. Supply Cable
To prevent accidents cut off the long ribbon attached to the grass-
bag and discard.
Unscrew the handlebar securing knobs sufficiently to allow the handle-
bar to pivot. Unfold the handlebar to the operating position. Tighten all
handlebar knobs to secure the handlebar in position.
Take care to ensure that the power cable does not become snagged at
the pivot points.
Once the grassbag is assembled. Raise the rear deflector, pass the
grassbag under the handlebar and hook in position. Lower the deflec-
tor to rest on the grassbag.
Route the supply cable loosely across to the cable cleat on the left side
of the handlebar. Make a loop in the supply cable and secure to the
cable cleat.
Handlebar
Delivery Checklist
Grassbag Attachment
Supply Cable
