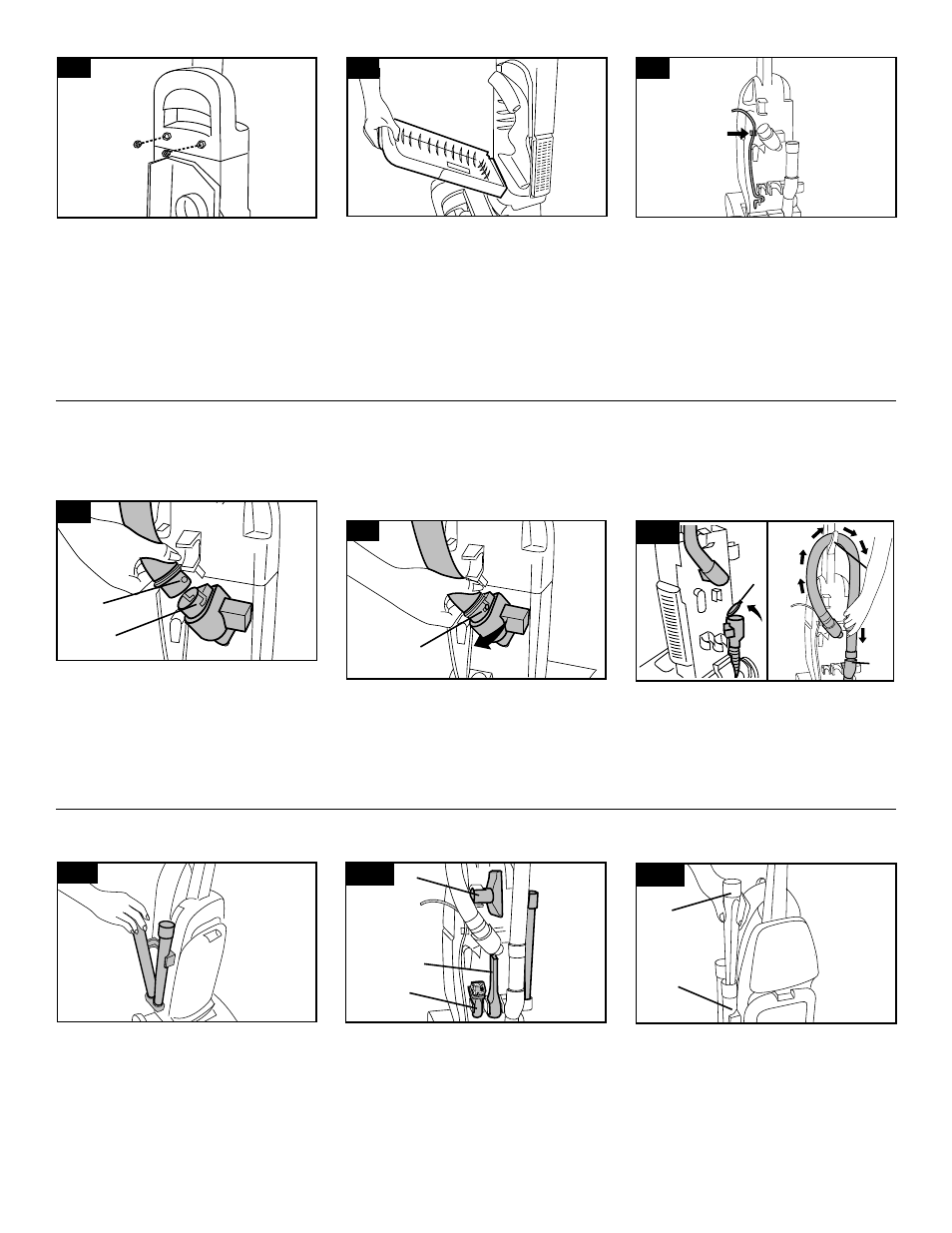

Align end of hose with projections
(A) over slots (B) in dirt duct.
Slide hose into duct (B) and twist
hose to lock it into place.
Snap ends of dusting brush (A),
crevice tool (B) and furniture nozzle
(C) into clips as shown.
1-10
1-5
1-8
1-6 1-7
1-9
1-12
Place nuts in recessed areas on
front of handle. Hold each nut in
place while tightening each bolt
securely with a Phillips screw driver.
A
B
B
A
C
D
E
B
E
C
D
Reposition bag door by fitting tabs
on bottom of door into opening.
Press top of door to snap securely
shut. Position cord on back of cleaner as
shown and press cord into clip.
1-11
Place smaller unridged end of wand
into bottom of rack. Snap wand into
clip. Repeat with other wand.
Attach hose
Position tools
Note: Hose must be connected as shown for
all operations.
Lift hose tube cover (C).
Position hose over hose hook (D)
and into hose tube (E).
1-13
Place crevice wand (D) (available
on some models) inside extension
wand (E).
