14
To connect the LCD TV to a VCR with an S-Video cord
If you connect a VCR with a S-Video cable to the S-VIDEO IN jack on the rear side of the unit, you must also connect the audio cables to
the AUDIO IN jacks on the rear of the unit.
The S-Video cable only carries the video signal. The audio signal is separate.
NOTE:
When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable takes precedence. •
The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features
of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs.

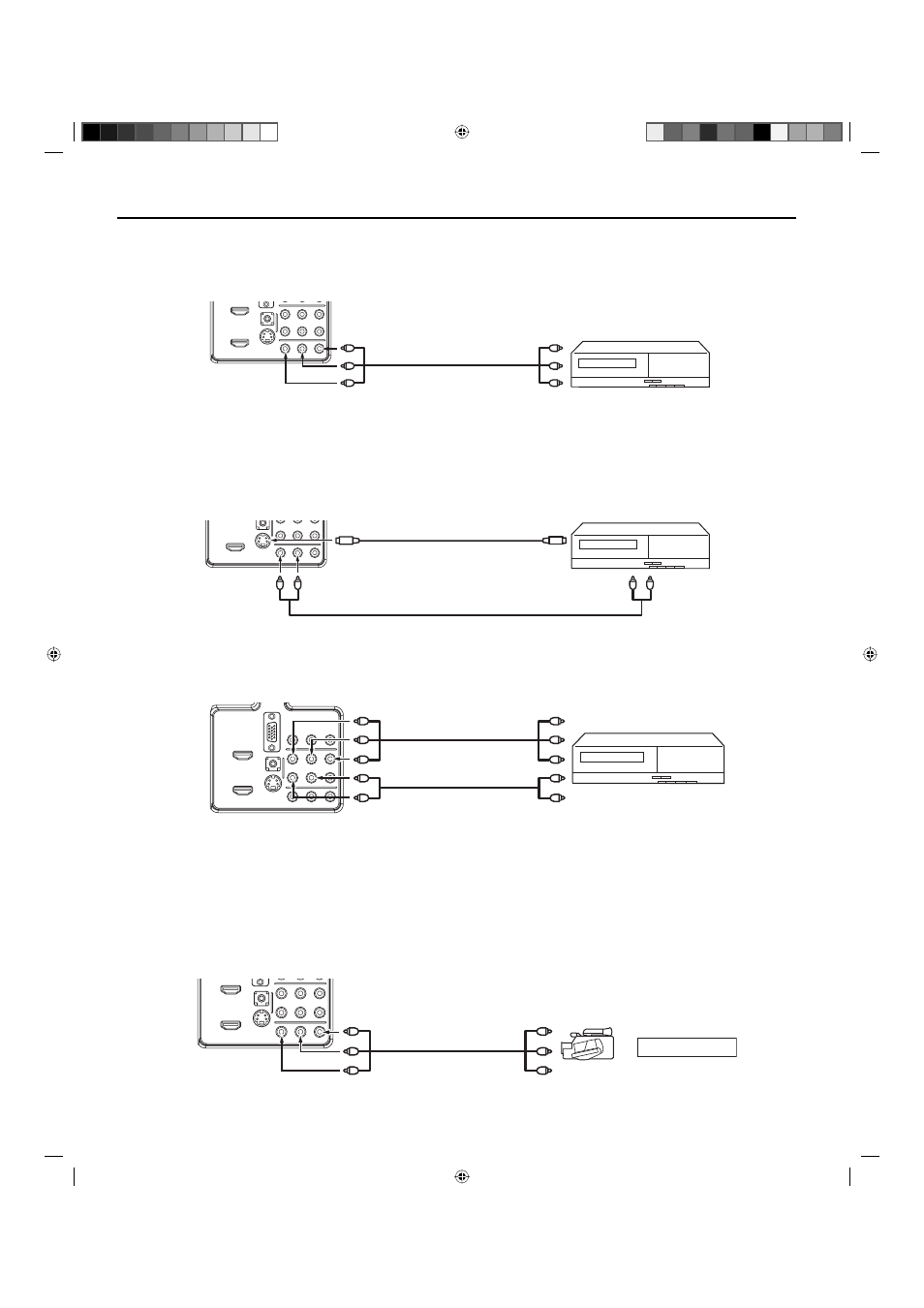

To connect the LCD TV to a VCR
Connections to other equipment
To connect the LCD TV to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD player with the
COMPONENT video cables (not supplied).
NOTE:
Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and 480p/720p progressive
signals.
•
Rear of the unit
To Video/Audio OUT
Video/Audio cord (not supplied)
To LINE1
VIDEO/AUDIO IN VCR
To connect the LCD TV to a camcorder, or a TV Game
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these
devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need
to consult each component’s Owner’s Manual for additional information.
or GAME CONSOLE
Y
Pb
Pr
Y
Pb
Pr
To S-Video OUT
To Audio OUT
Audio cord (not supplied)
S-Video cord (not supplied)
To S-VIDEO IN
To LINE1 AUDIO IN
Rear of the unit
VCR
To Component OUT
Audio cord
(not supplied)
Component video cord
(not supplied)
To LINE2 AUDIO IN
To COMPONENT IN
To Audio OUT
DVD
Rear of the unit
Rear of the unit
Video/Audio cord
(not supplied)
To LINE1 VIDEO/
AUDIO IN To Video/Audio OUT
