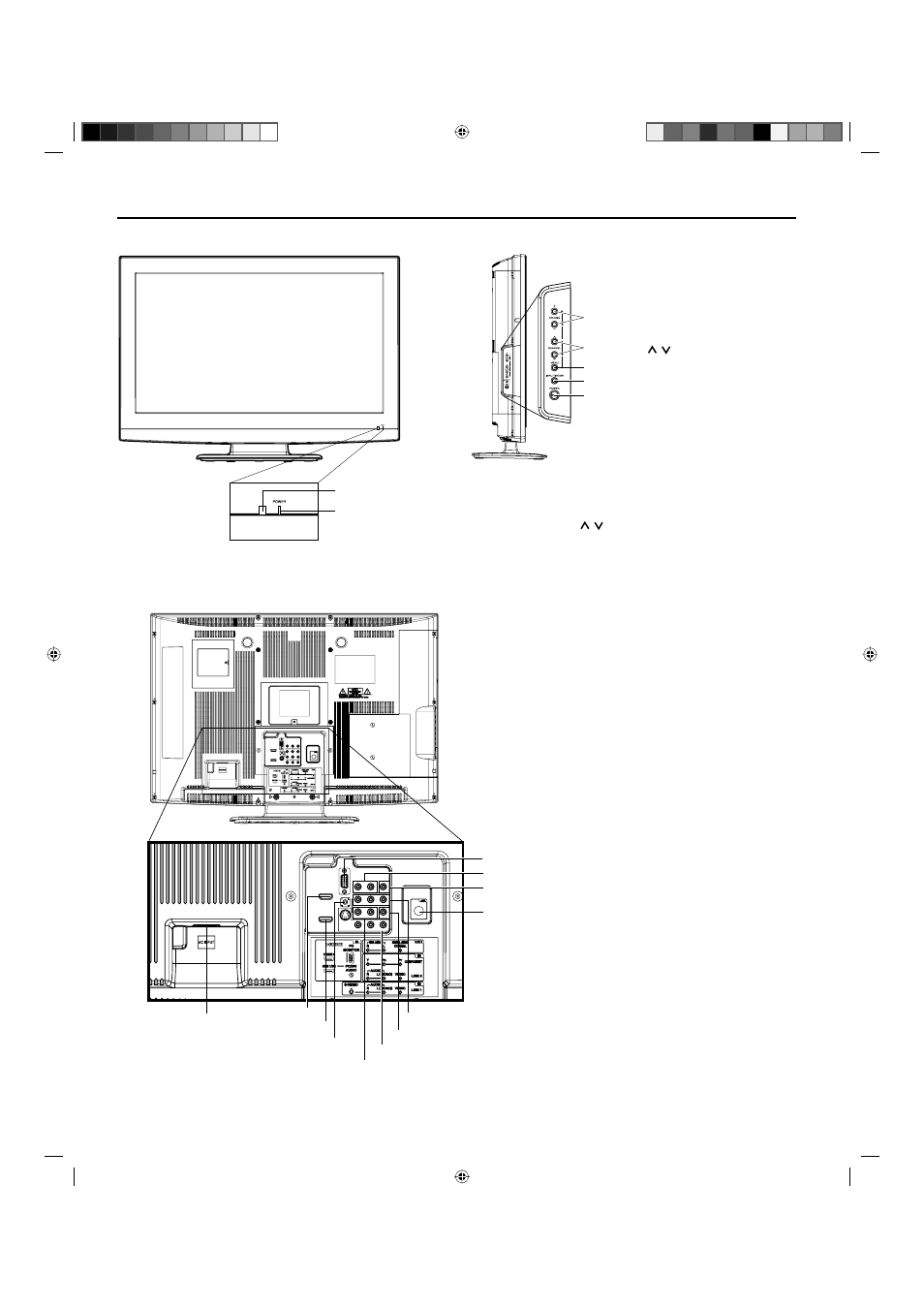

Location of controls
Left side Front
Remote sensor
POWER indicator
Red: Standby
Green: On
POWER button
INPUT/ENTER button
VOLUME +/– buttons
CHANNEL / buttons
MENU button
AC INPUT jack
HDMI1/DVI IN jack
HDMI2 IN jack
PC/DVI AUDIO IN jack
AUDIO (L(MONO)/R) jacks
(for COMPONENT IN and LINE2 VIDEO IN)
LINE1 IN jacks (VIDEO/S-VIDEO/AUDIO (L(MONO)/R))
LINE2 VIDEO IN jack
COMPONENT IN jacks
PC MONITOR IN jack
VAR (VARIABLE) AUDIO OUT jacks
DIGITAL AUDIO COAXIAL OUT jack
RF (ANT.) IN jack
Rear
To display the menu screen.
Press MENU button to display the menu
screen.
CHANNEL / buttons, VOLUME
+/– buttons and INPUT/ENTER button
can be used to select the desired setting
during the menu screen operations.
