Power Control Connections
The Citation 5.1 amplifier features a built-in system that will automatically turn
on the amplifier when another device in the system is switched on. To activate this
system, the 5.1 must be used in conjunction with a Citation Surround Controller
or Processor, other Citation Power Amplifiers, and other approved devices.
Remote Turn On With a Citation Controller or
External Trigger Control Device
The first connection is to link your amplifier to the controlling device. Connect the
“PWR” Trigger output at the rear of a Citation Processor or an approved control
device to the “Remote DC IN” connection on the rear panel of your 5.1. Make
certain that the controlling device sends a 4.5 VDC to 12 VDC signal whenever it
is turned on. If you are using a Citation 7.0 Controller, be certain to use the
“PWR” control trigger, not one of the numbered programmable trigger outputs.
9

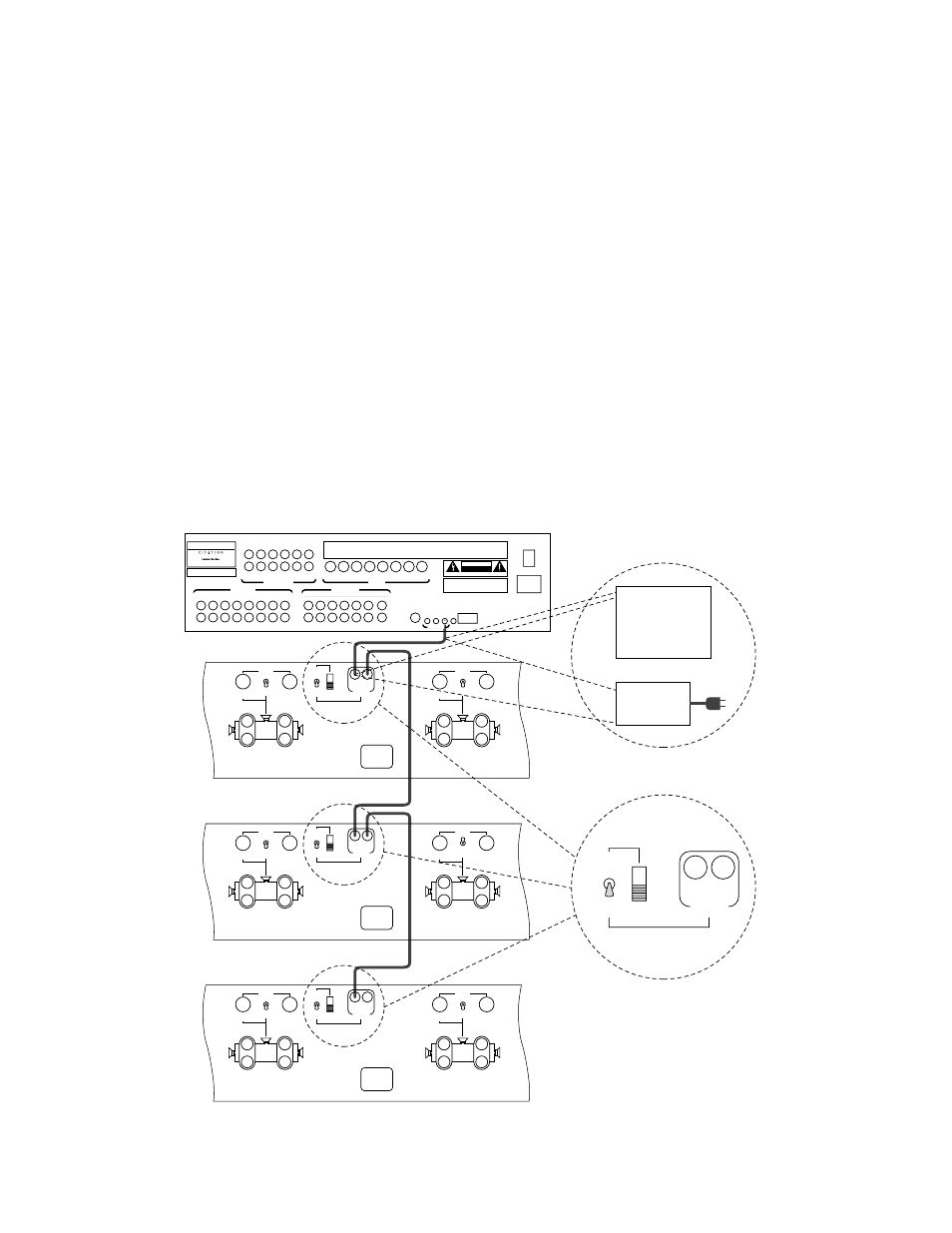

Figure 1a
