SPECIFICATIONS
3 Form No. MNM-0702

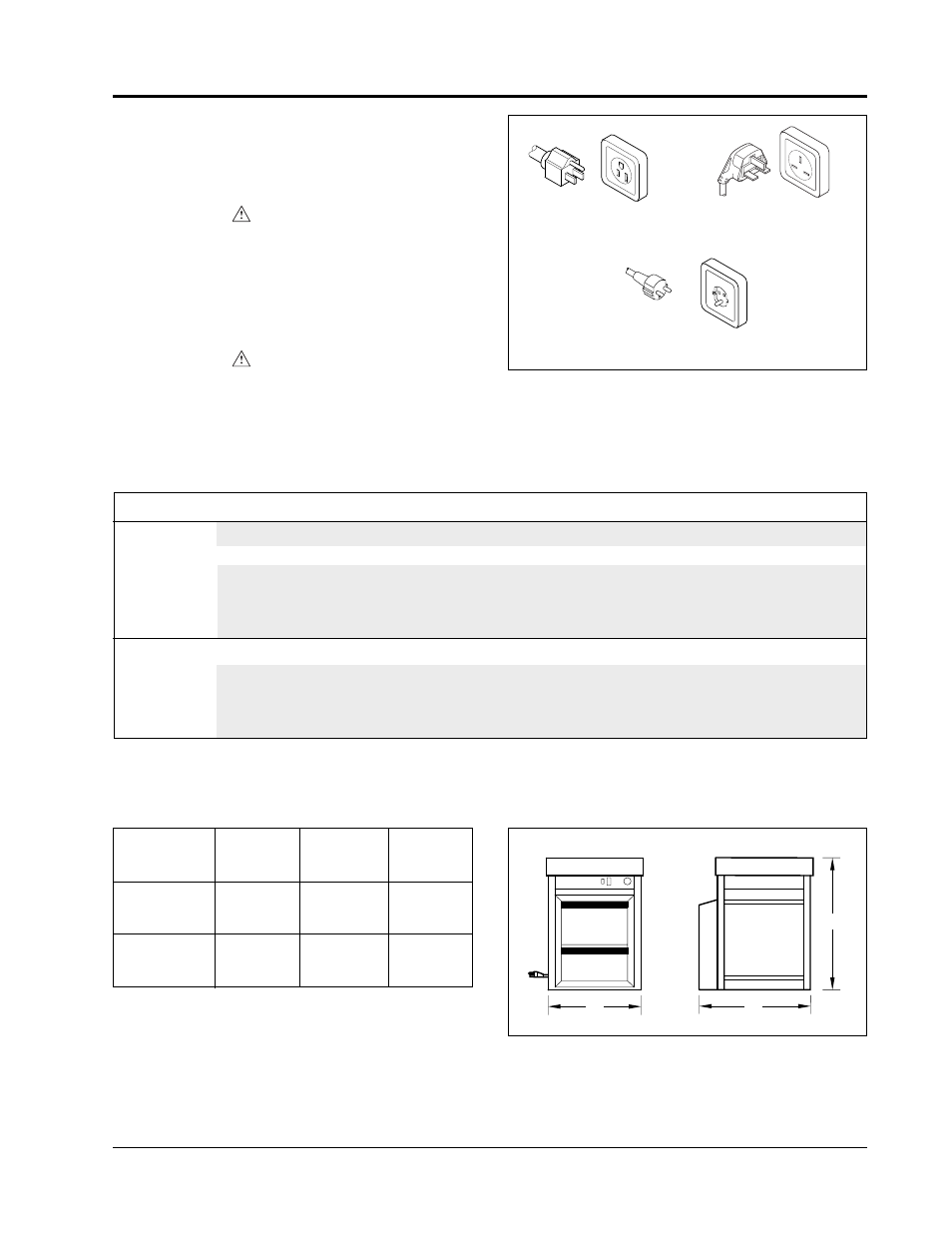

PLUG CONFIGURATIONS
Units are supplied from the factory with an electrical
cord and plug installed. Plugs are supplied according
to the applications as shown in Figure 3.
WARNING
Plug unit into a properly grounded electrical
outlet of the correct voltage, size and plug
configuration. If the plug and receptacle do not
match, contact a qualified electrician to determine
the proper voltage and size and install the proper
electrical outlet.
WARNING
To prevent any injury, discontinue use if power cord
is frayed or worn.
NEMA 5-15P
CEE 7/7 Schuko
BS-1363
Figure 3. Plug Configurations
Width Depth Height
Model (A) (B) (C)
FDW-1-MN 18" 22-3/8" 27-1/2"
(46 cm) (57 cm) (70 cm)
FST-1-MN 22-7/8" 27" 32-5/8"
(58 cm) (69 cm) (83 cm)
DIMENSIONS
ELECTRICAL RATING CHART
Figure 4. Dimensions
Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight
FDW-1-MN 100 60 1110 11.1 NEMA 5-15P 80 lbs. (36 kg)
120 60 1128 9.4 NEMA 5-15P 80 lbs. (36 kg)
220 50/60 1118 5.1 CEE 7/7 Schuko 80 lbs. (36 kg)
240 50/60 1128 4.7 BS-1363 80 lbs. (36 kg)
220-230 (CE) 50/60 1118-1222 5.1-5.3 CEE 7/7 Schuko 80 lbs. (36 kg)
230-240 (CE) 50/60 1036-1128 4.5-5.7 BS-1363 80 lbs. (36 kg)
FST-1-MN 120 60 1245 10.4 NEMA 5-15P 132 lbs. (60 kg)
220 50/60 1225 5.6 CEE 7/7 Schuko 132 lbs. (60 kg)
240 50/60 1245 5.2 BS-1363 132 lbs. (60 kg)
220-230 (CE) 50/60 1219-1332 5.6-5.8 CEE 7/7 Schuko 132 lbs. (60 kg)
230-240 (CE) 50/60 1150-1252 5.0-5.2 BS-1363 132 lbs. (60 kg)
A B
C
