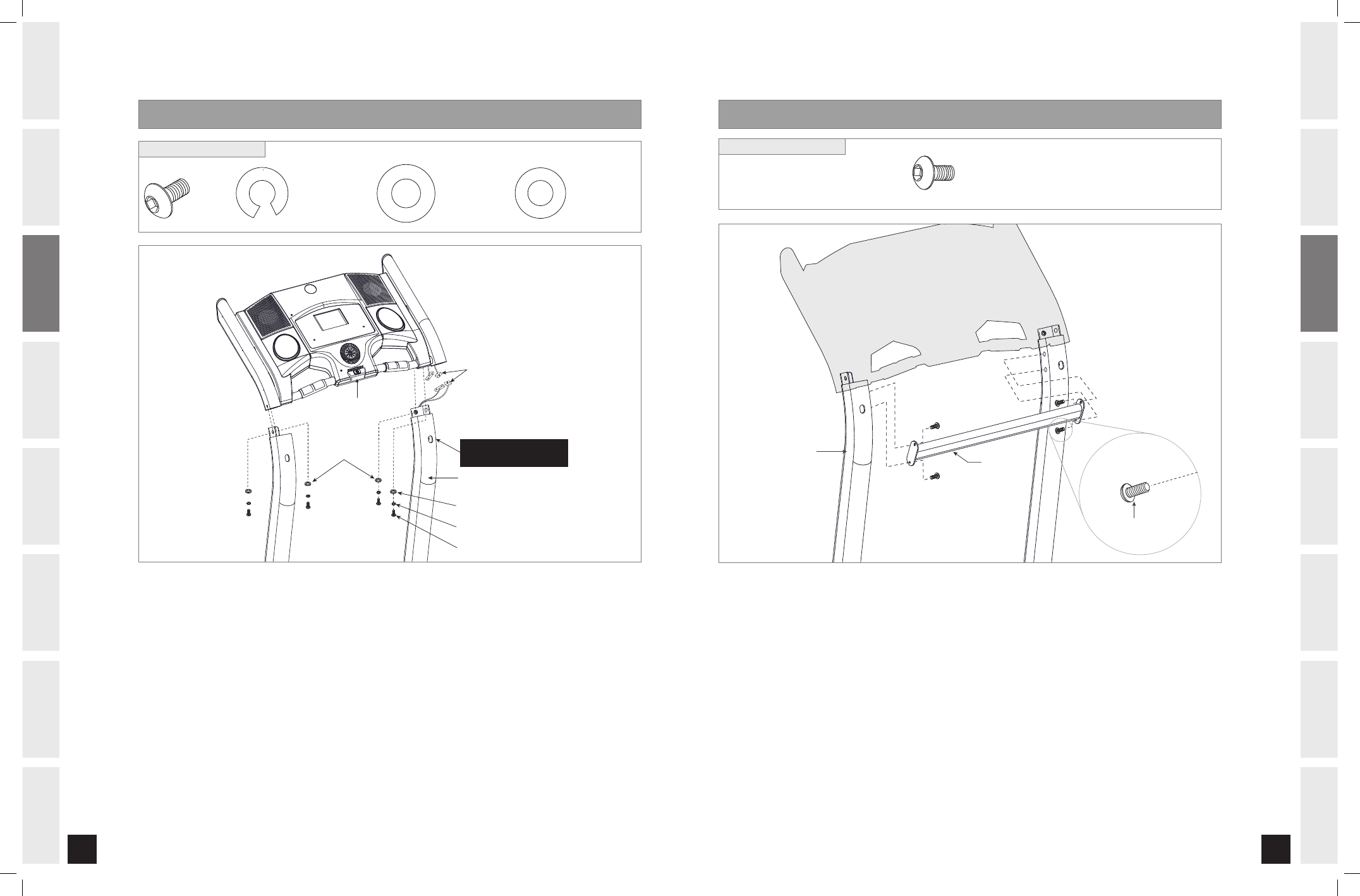

ASSEMBLY STEP
HARDWARE BAG CONTENTS :
ASSEMBLY STEP 4
BOLT (K)
15 mm
Qty: 4
HARDWARE BAG 4 CONTENTS :
BOLT (K)
SUPPORT BAR
CONSOLE MAST
FLAT WASHER (I)
CONSOLE MAST
CONSOLE CABLES
SPRING WASHER (H)
BOLT (G)
CONSOLE
DO NOT ATTACH
THIS SIDE UNTIL STEP 3-D
ARC WASHER (J)
FLAT WASHER (I)
19 mm
Qty: 2 SPRING WASHER (H)
15 mm
Qty: 4 BOLT (G)
15 mm
Qty: 4 ARC WASHER (J)
17 mm
Qty: 2
A Open HARDWARE BAG .
B With running deck in lowered position, place CONSOLE on the console masts. Align the
brackets that are underneath the console with the top holes of the console masts.
C To assemble the CONSOLE to the LEFT CONSOLE MAST, insert 1 BOLT (G), 1 SPRING
WASHER (H) and 1 FLAT WASHER (I) into the side hole and insert 1 BOLT (G), 1 SPRING
WASHER (H) and 1 ARC WASHER (J) into the back hole in the LEFT CONSOLE MAST
and lightly tighten.
D Gently lift RIGHT side of the CONSOLE to connect the CONSOLE CABLES. Carefully tuck
wires in mast to avoid damage. NOTE: Do not pinch console cable or grip pulse wires.
E Repeat STEP C above to assemble the RIGHT CONSOLE MAST to the CONSOLE.
F Leave console bolts loose until after STEP 4 is completed.
Open HARDWARE BAG 4.
Align SUPPORT BAR with holes in CONSOLE MASTS.
Insert BOLTS (K) into all 4 holes of the SUPPORT BAR.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
Tighten all console bolts (Step 3) and support bar bolts (Step 4) completely.
A
B
C
D
