Installation (cont.)

- 7 -

Optional Equipment Connection and Operation

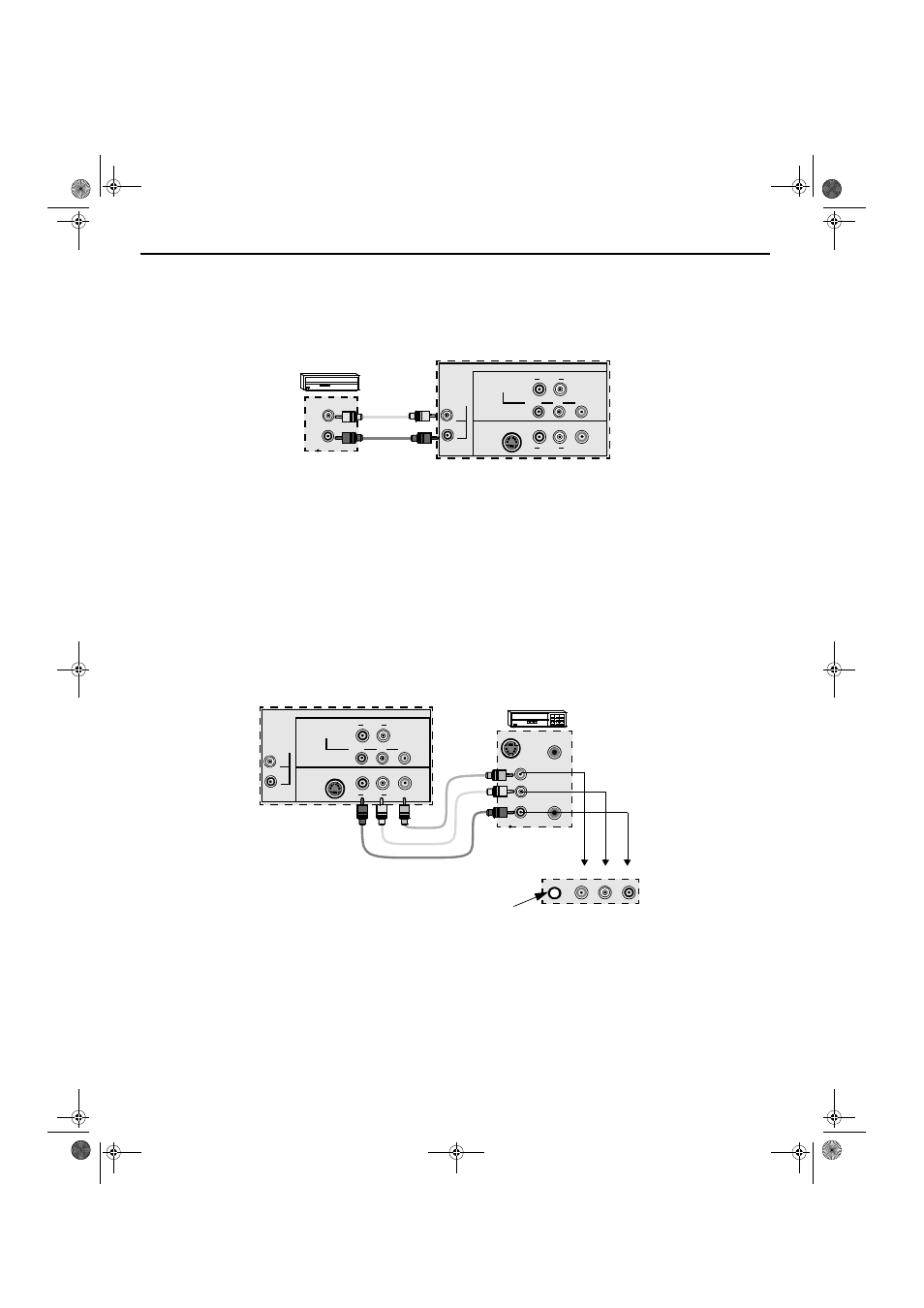

To Audio AMP Connection (Stereo)

To Audio AMP

Connect to an external audio amp auxiliary input for monitoring sound through a stereo system.
NOTE:

“TO AUDIO AMP” terminals cannot be used for external speakers.

Operation - When an audio amp is connected to “TO AUDIO AMP” terminals as shown:

1.

Select SPEAKERS ON located in the onscreen AUDIO menu.

2.

Set amplifier volume to minimum.

3.

Adjust TV volume to desired level.

4.

Adjust amplifier volume to match the TV.

5.

Select SPEAKERS OFF & VAO (Variable Audio Out) from AUDIO menu.

6.

Volume and mute are now controlled using the TV controls.

Audio/Video Connection

Operation

1.

Connect equipment as shown to front or rear Audio/Video input jacks.

2.

Select the Video mode by pressing the INPUT button.

3.

Operate optional equipment (VCR-VDP) following their respective equipment manual.

NOTE:

The S-VIDEO connection is optional and overrides other VIDEO connection. Use INPUT 2, AUDIO R and L with
S-VIDEO connection.

TO AUDIO

AMP

VIDEO

S-VIDEO

R AUDIO

L

COMPONENT

VIDEO INPUT

P

R

Y/VIDEO

P

B

R

L

INPUT 1

R AUDIO

L

INPUT 2

CABLES NOT SUPPLIED

TERMINALS ON BACK OF TV

L

R

AUDIO OUT

AUDIO AMP

TO AUDIO

AMP

VIDEO

S-VIDEO

R AUDIO

L

COMPONENT

VIDEO INPUT

P

R

Y/VIDEO

P

B

R

L

INPUT 1

R AUDIO

L

INPUT 2

L

R

AUDIO OUT

VIDEO OUT

VCR

ANT INPUT

CABLES NOT SUPPLIED

OUTPUT

TERMINALS ON BACK OF TV

S-VIDEO OUT

L AUDIO IN R

VIDEO 3

Jack used for 1/8”
headphone plug

TERMINALS ON FRONT OF TV

HPJ
