7

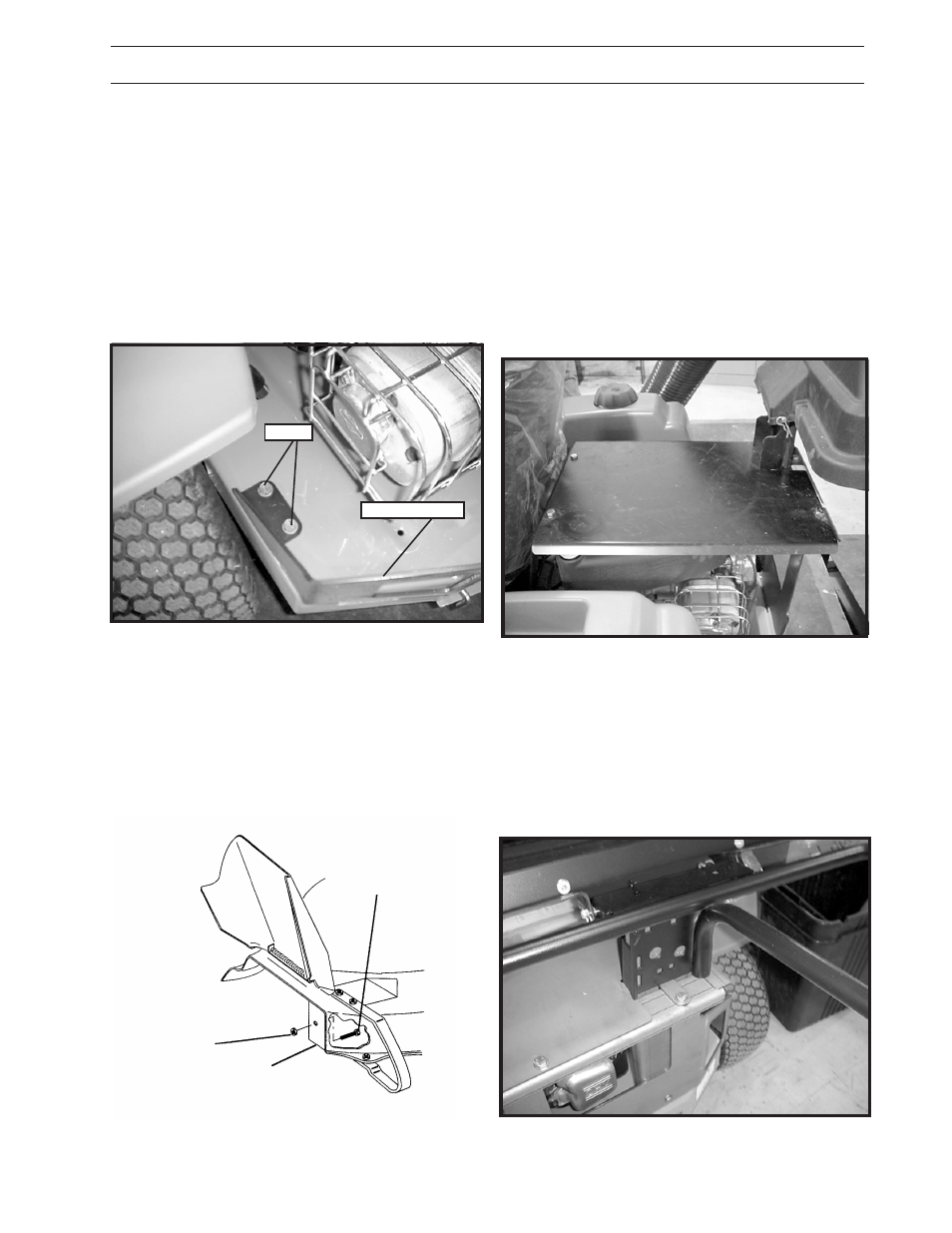

ASSEMBLY
NOTE: Before mounting your new bagger
you will have to remove the mower’s utility
box and rear guard.
2
MOWER DECK BAFFLE
(See Figure 2.)
1. Raise your mower deck to its highest posi-
tion.
2. Install the hex bolt, and locknut through
mower deck baffle and tighten securely.
FIGURE 2
1
REMOVAL OF UTILITY BOX, AND
REAR GUARD (See Figure 1.)
1. Remove the hairpins and clevis pins that
secure the utility box to the unit (all four
corners).
2. Using a 1/2” wrench, remove the six bolts
that secure the rear bracket to the unit.
FIGURE 1
REAR BRACKET
BOLTS
3
INSTALLATION OF THE REAR GUARD,
PLATE AND HANGER
(See Figure 3A and 3B.)
1. Using the 6 bolts removed from the rear
bracket, install the new rear bracket (Part No.
110485).
2. Place the hanger over the tab on the plate.
See Figure 3A.
FIGURE 3A
3. Using the four bolts (HCS 3/8 x 3/4) and nyloc
nuts (3/8), install the plate to the rear bracket
and front bracket.
4. Secure the hanger to the rear bracket with
two bolts (HCS 5/16 x 3/4) and nyloc nuts
(5/16). See Figure 3B.
FIGURE 3B
HEX BOLT
LOCKNUT
MOWER
DECK
BAFFLE
