Honeywell MS4980 User Manual
Page 33

29
S
CANNER AND
C
ABLE
T
ERMINATIONS
USB without Power Jack
USB with Power Jack
15-pin, D-type
15-pin, D-type
Pin Function
Pin Function
1 Reserved
1 Reserved
2 Reserved
2 Reserved
3 Reserved
3 Reserved
4
USB D-
4
USB D-
5
USB D+
5
USB D+
6 Ground
6 Ground
7 Reserved
7 Reserved
8 Reserved
8
Jump to Pin 11
9 Reserved
9 Reserved
10
Host Power(+5V)
10
Host Power(+5V)
11
Jump to Pin 10
11
Adapter Power
12 Reserved
12 Reserved
13 Reserved
13 Reserved
14 Reserved
14 Reserved
15 Reserved
15 Reserved

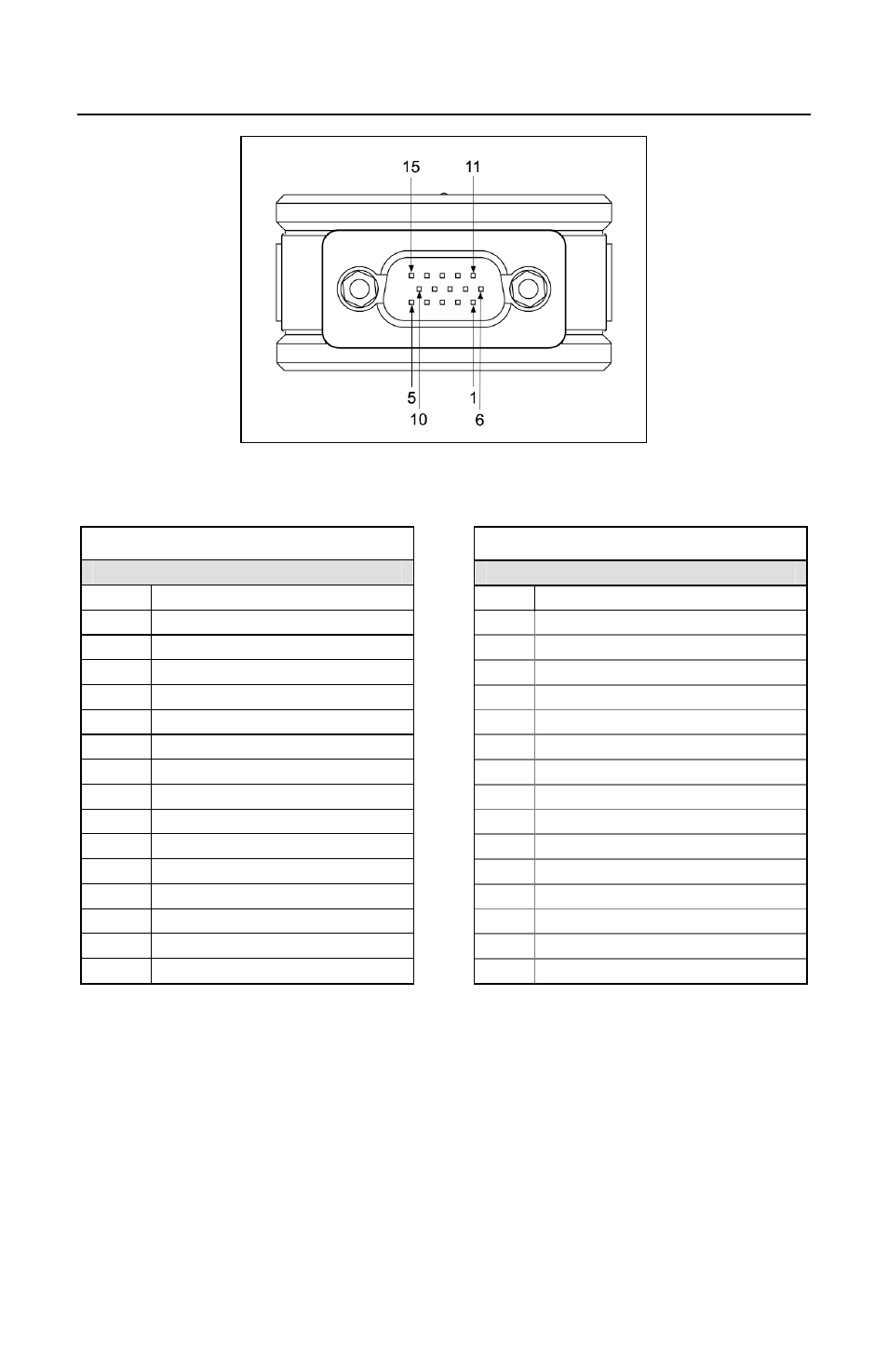

Figure 17.
