Page 32
28

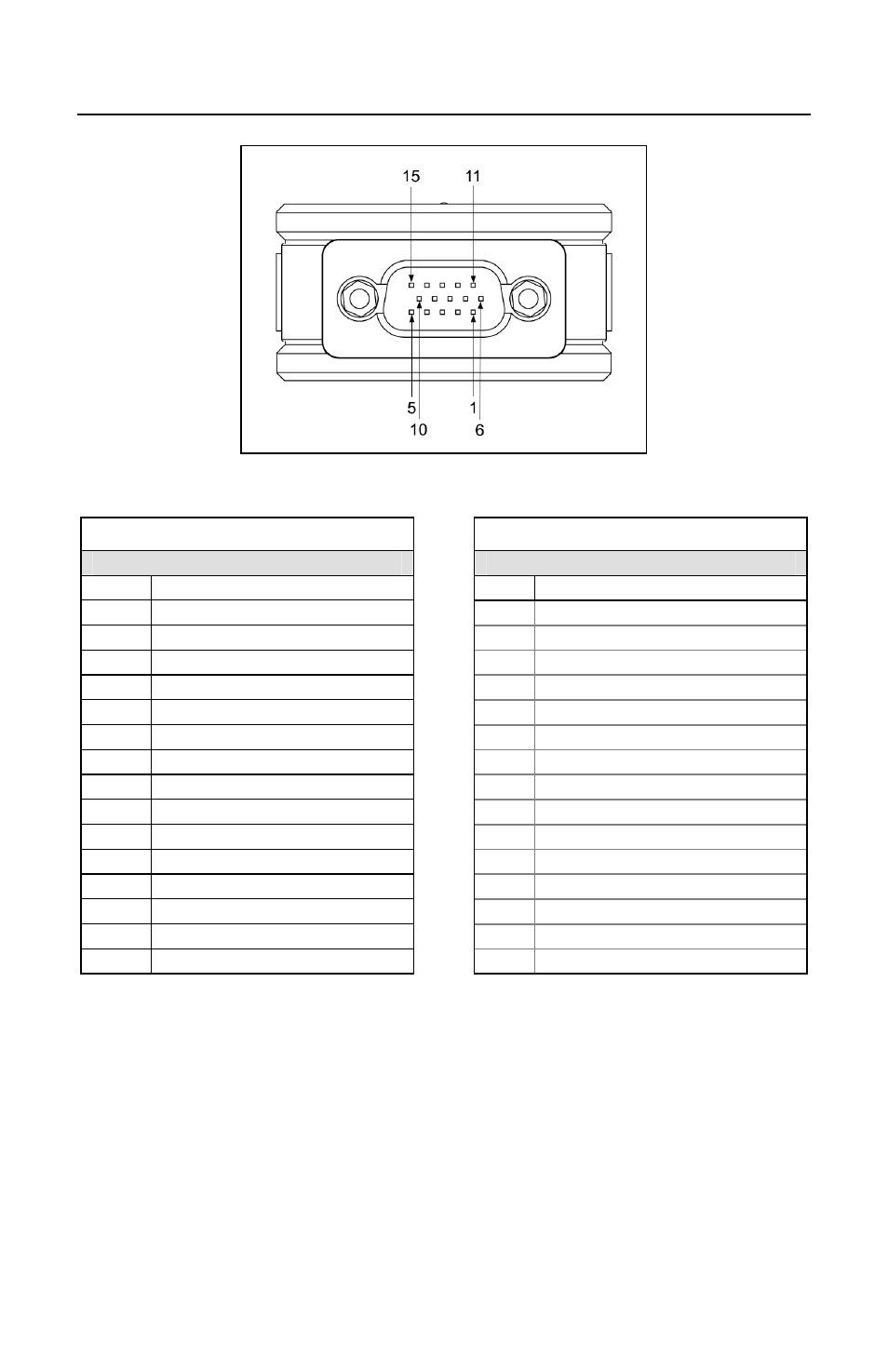

S
CANNER AND
C
ABLE
T
ERMINATIONS
RS232
Keyboard Wedge
15-pin, D-type
15-pin, D-type
Pin Function
Pin Function
1 Reserved
1 PC
Data
2
Reserved
2
KB Clock
3 Reserved
3 KB
Data
4 Reserved
4 Reserved
5 Reserved
5 Reserved
6 Ground
6 Ground
7 TXD
7 Reserved
8
RXD
8
Jump to Pin 11
9
+5V Scanner Power
9
PC Clock
10 Reserved
10 Host
Power(+5V)
11
Adapter Power
11
Adapter Power
12
CTS
12
Jump to Pin 10
13 RTS
13 Reserved
14 Reserved
14 Reserved
15 Reserved
15 Reserved
Figure 16.
