Hayter Mowers 481A - Manual (Page 2)

MODEL CODE 481A - Auto Drive Electric Start
Engine Briggs & Stratton Diamond XTL-45
Engine Type 12L887-1562-21
Engine / Cutterblade Speed 2800 rpm
Fuel Type Unleaded Petrol
Fuel Capacity 1.5 litres
Oil Type SAE 30 engine oil
Oil Sump Capacity 0.6 litres
Width of Cut 480mm
Height of Cut 12 - 65mm
Overall Dimensions 1044 x 514 x 1377mm
Dry Weight 50 Kg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
18

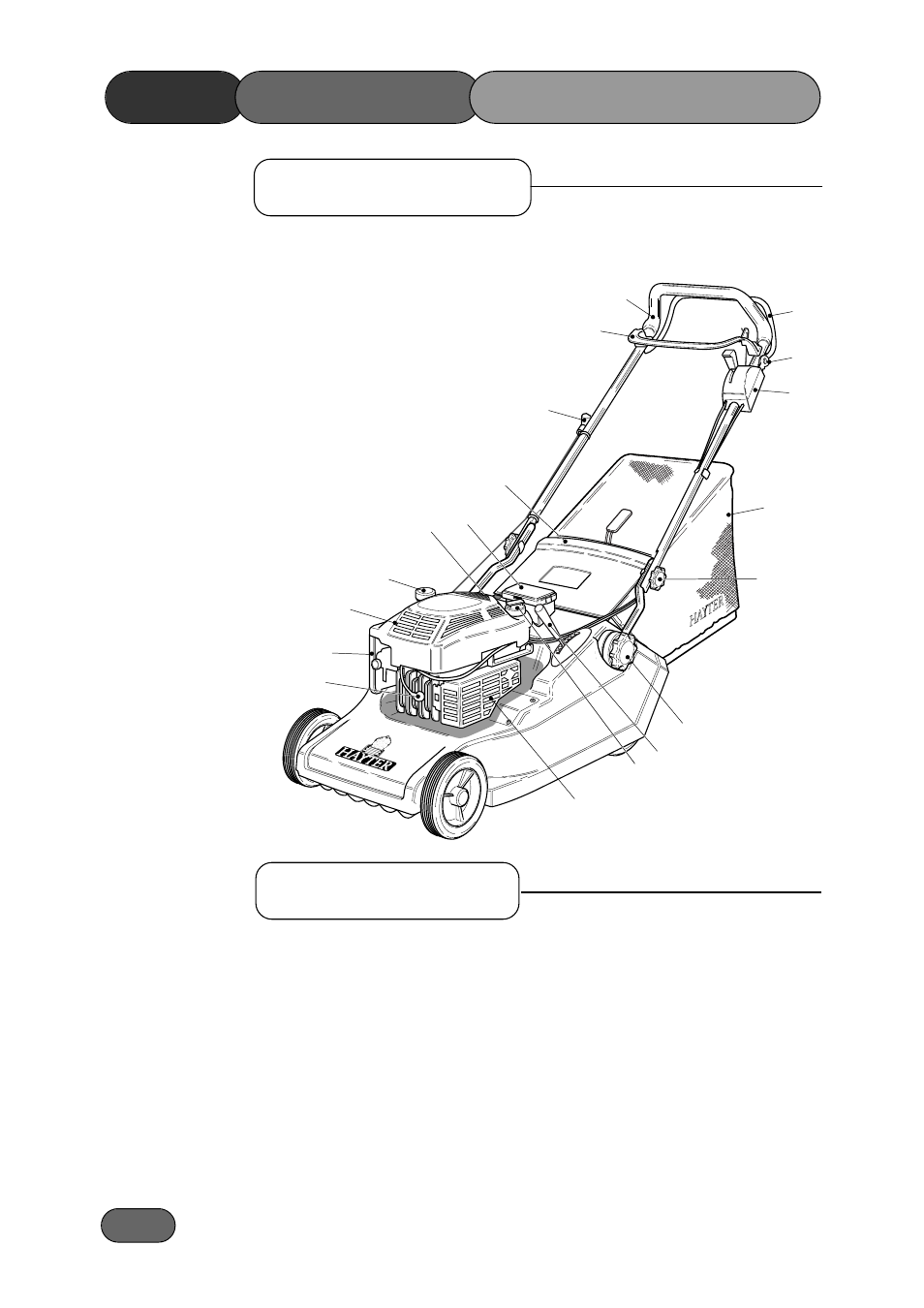

1. Spark Plug Lead
2. Air Cleaner
3. Engine Cover
4. Fuel Cap
5. Oil Filler Cap & Dipstick
6. Rear Deflector
7. Engine Start Grip
8. Engine Stop Lever
9. Handlebar
10. Ground Drive Clutch Lever
11. Throttle Control
12. Grassbag Assembly
13. Handlebar Securing Knob
14. Handlebar Height Adjust Knob
15. Height of Cut Lever
16. Muffler Guard
17. Battery
18. Ignition Key
19. Serial Number Decal
MAIN FEATURES /SPECIFICATIONS
1.2
Main Features
Specifications
