BEFORE OPERATING YOUR TV SET
BEFORE
OPERATING
YOUR
TV
SET

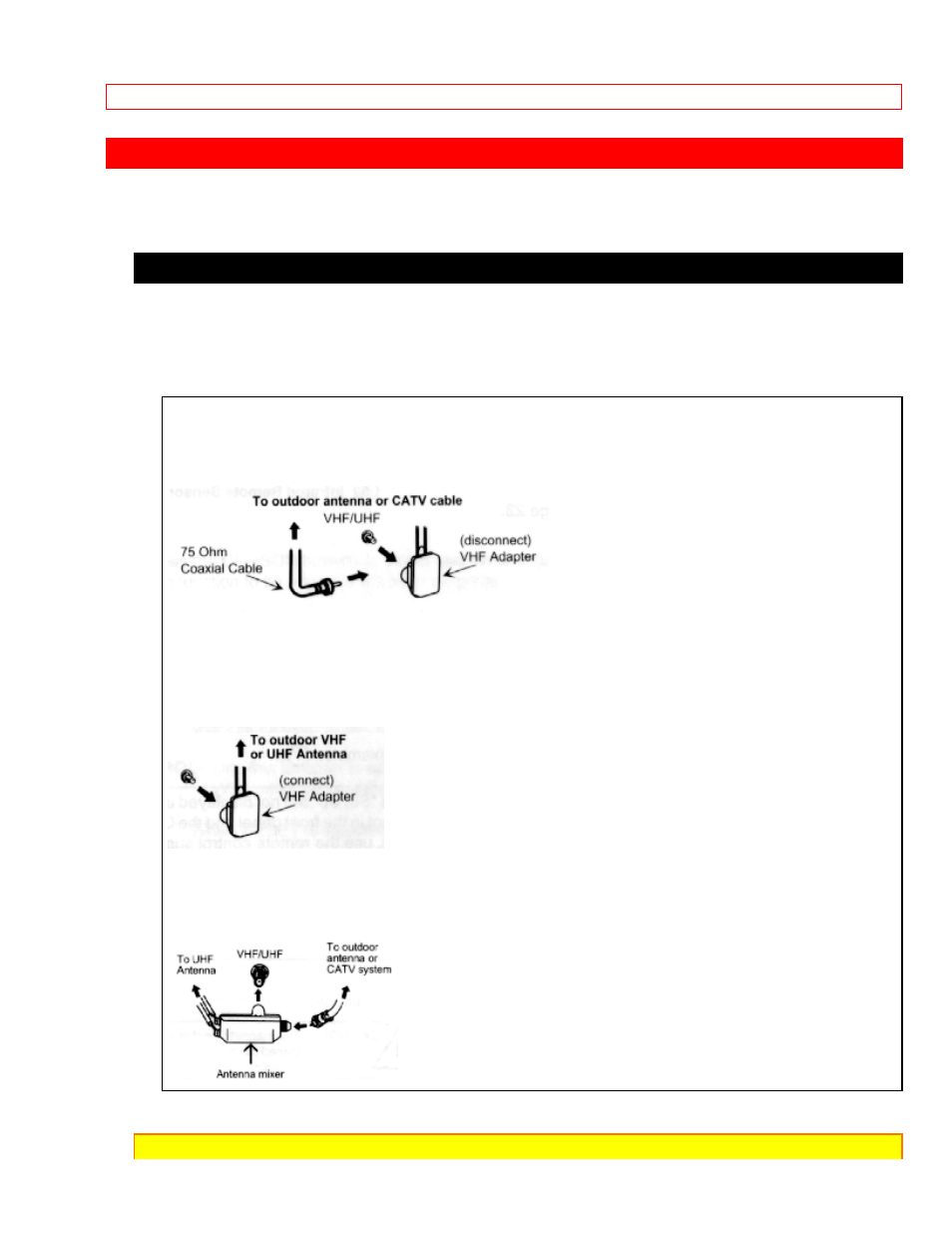

ANTENNA CONNECTIONS
These sets are equipped with one VHF/UHF terminal can be used for normal TV, cable
TV (CATV), a TV game, etc.
1. VHF (75 ohm) antenna/CATV
When using a 75 ohm coaxial cable system, disconnect the VHF adaptor from the VHF
75 ohm receptacle and connect the outdoor antenna or CATV cable to a VHF 75 ohm
receptacle
2. VHF (300-Ohm) antenna/UHF antenna
When using a 300-Ohm twin lead from an outdoor antenna, disconnect the (VHF or
UHF) indoor antenna leads from screws of the (VHF or UHF) adapter, and connect
outdoor (VHF or UHF) antenna leads to these screws of a (VHF or UHF) adapter.
3. When both VHF and UHF antennas are connected
Attach an optional ANT. MIXER to the TV antenna terminal, and connect the cables to
the ANT. MIXER.
Notes
