Avoid aiming the control at:
• Objects that change temperature rapidly, such as heating
vents and air conditioners. These heat sources could
cause false triggering.
• Areas where pets or traffic may trigger the control.
• Nearby large, light-colored objects reflecting daylight
may trigger the shut-off feature. Do not point other lights at
the sensor.
TEST AND ADJUSTMENT
❒
Turn on the circuit breaker and light switch.
SPECIFICATIONS
Range . . . . . . . . . . . . . . Up to 60 feet (varies with sur-
rounding temperature).
Sensing Angle . . . . . . . . Up to 110 °
Electrical Load . . . . . . . . Up to 500 Watts Maximum, Incan-
descent
Power Requirements . . . 120 VAC, 60 Hz
Operating Modes . . . . . . TEST, AUTO and MANUAL
OVERRIDE
Time Delay . . . . . . . . . . 1 , 5, 10 minutes
Sensitivity . . . . . . . . . . . Adjustable
DESA Specialty Products™ reserves the right to discontinue
products and to change specifications at any time without
incurring any obligation to incorporate new features in prod-
ucts previously sold.
The detector is less sensitive to motion directly towards it and
more sensitive to across motion.

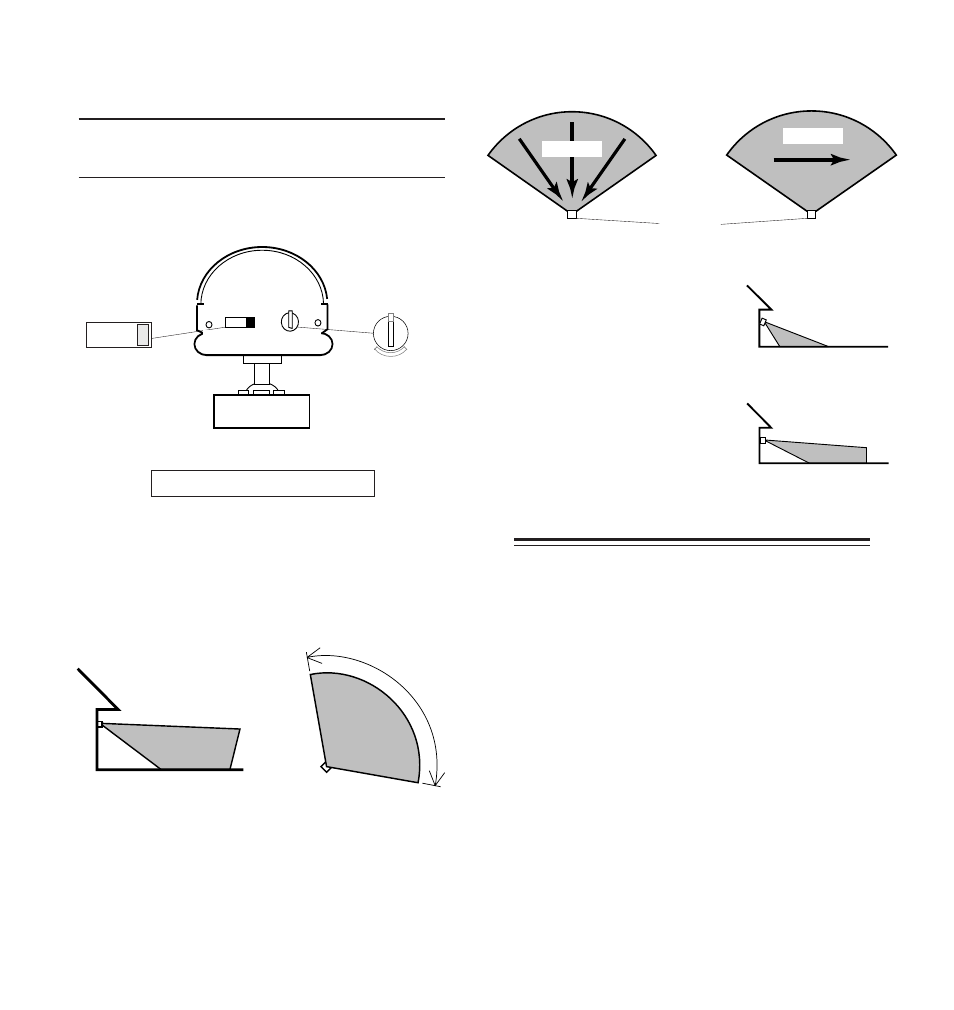

Aim Sensor Down
for Short Coverage
Aim Sensor Higher
for Long Coverage
❒
Walk through the coverage area
noting where you are when the
lights turn on. Move the sensor
head up, down, or sideways to
change the coverage area.
❒ Adjust the SENSITIVITY as
needed. Too much sensitivity
may increase false triggering.
❒
Set the amount of TIME you
want the lights to stay on after
motion is detected (1, 5 or 10
minutes).
Least Sensitive Most Sensitive
Sensor
Motion
Motion
ON-TIME
10 5 1 TEST MIN MAX
SENS
Bottom of Sensor
60 ft.
5 ft.
110 °
Maximum Range Maximum
Coverage Angle
NOTE: Sensor has a 1 1 /
2
minute warm up period before it
will detect motion. When first turned on or when
switching modes, wait 1
1 /
2
minutes.
❒ Turn the SENSITIVITY (SENS) control to the mid position
and the ON-TIME control to the TEST position.
