1.12
ASSEMBLING THE MOWER
Remove the mower from the packaging and check that the following
items have been supplied correctly. If any items are missing contact,
your local Hayter dealer.
To prevent accidents cut off the long ribbon attached to the grass-
bag and discard.

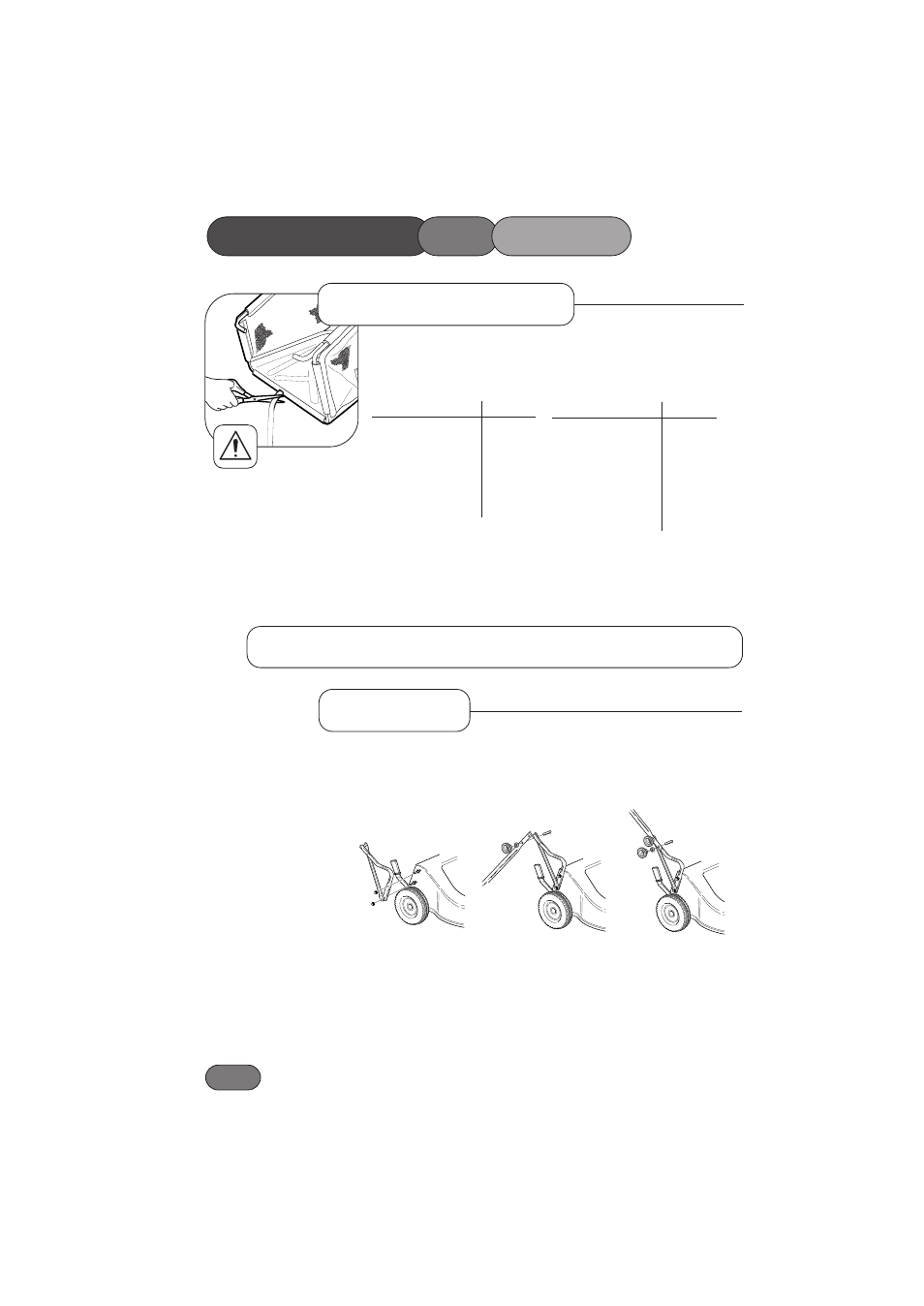

Assemble the handlebars: Assemble the handlebars as shown. Route
the cables carefully and clip in position to avoid damage and entan-
glement when using the machine.
CAUTION - PREVENT DAMAGE : When assembling the
handlebar, take care to ensure that the controls and cables do not
become damaged. Always replace damaged controls and cables
before using the mower.
Delivery Checklist
Description
Handlebar Lower LH
Handlebar Lower RH
Coach Bolt
Washer
Nut
Handlebar Support LH
Handlebar Support RH
Quantity
1
1
4
4
4
1
1
Assembling the Mower for the first time
CS223
CS224 CS225B
Description
Large Knob
Upper Handlebar
Cap
Cable Guide
Grassbag Frame
Grassbag Fabric
Grassbag Flap
Engine Handbook
Quantity
4
1
4
4
1
1
1
1
Handlebar
