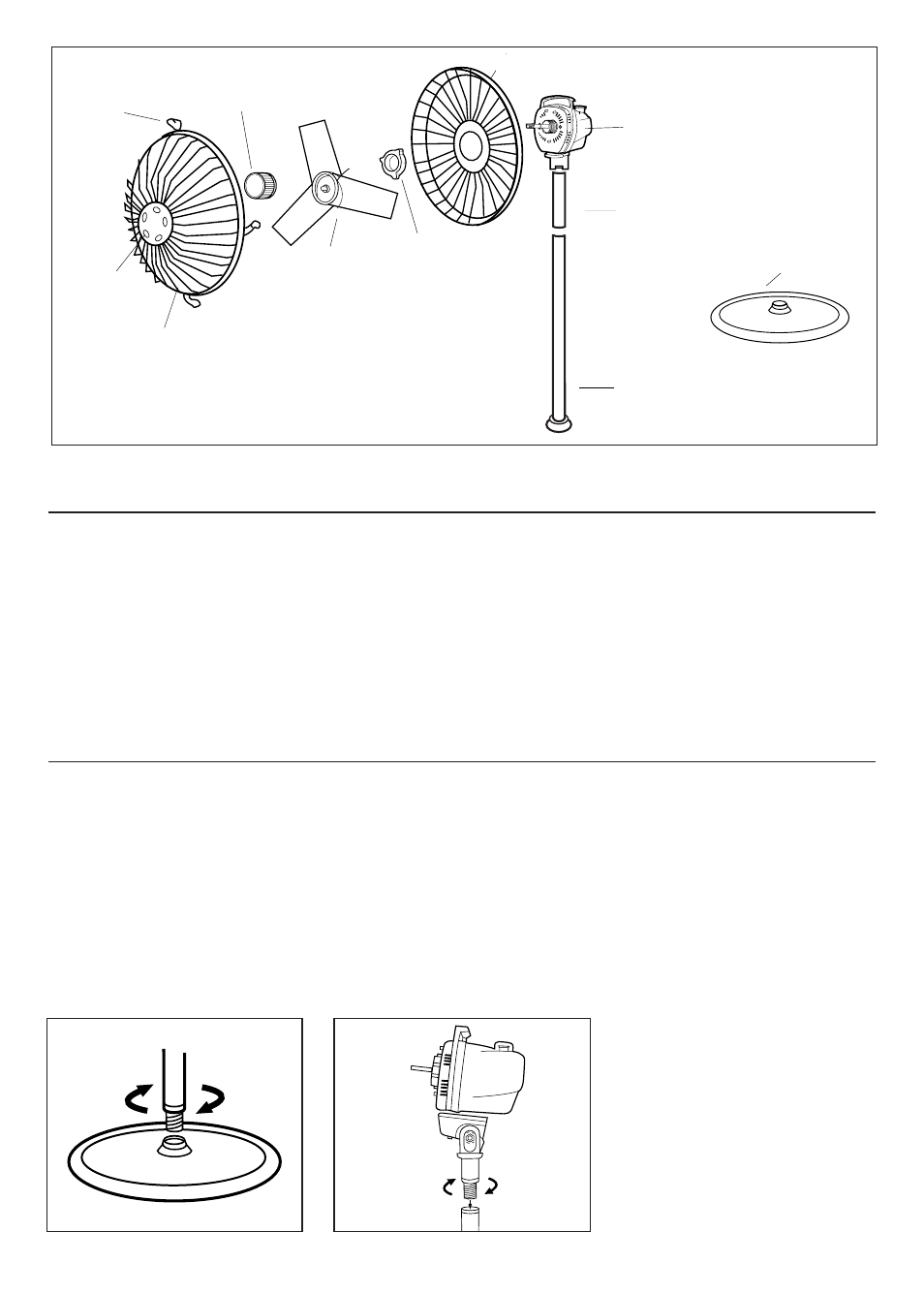

STAND FAN ASSEMBLY INSTRUCTIONS
• Insert the long Metal
Pole into the Base and
tighten it by turning
either the Pole or the
Base (Fig. 1).
• Insert and tighten the
short Metal Pole into the
Base/Pole Assembly
(Fig.1).
• Place the Motor
Assembly into the shorter
Fig. 1 Fig. 2
Fan Pole and tighten by
turning the Motor
Assembly clockwise
(Fig. 2). Go to grille
assembly instructions.
This fan can be converted into two heights by selecting different size
poles to assemble.
1. Stand fan = use both short and long pole
2. Table fan = use only short pole
ASSEMBLY INSTRUCTIONS
BLADE KNOB
REAR GRILLE
BASE
FAN BLADE
REAR GRILLE
MOUNTING
NUT
FRONT GRILLE
GRILLE HUB
CLIPS
MOTOR
HOUSING
SHORT
METAL POLE
LONG
METAL POLE
