Assembling Your Haan
®
Steam Vacuum Cleaner
1
➟ 2
Ready to Go
pg 8 877-HAAN DIRECT / 877-422-6347 www. HAANUSA.com
➟
2
1

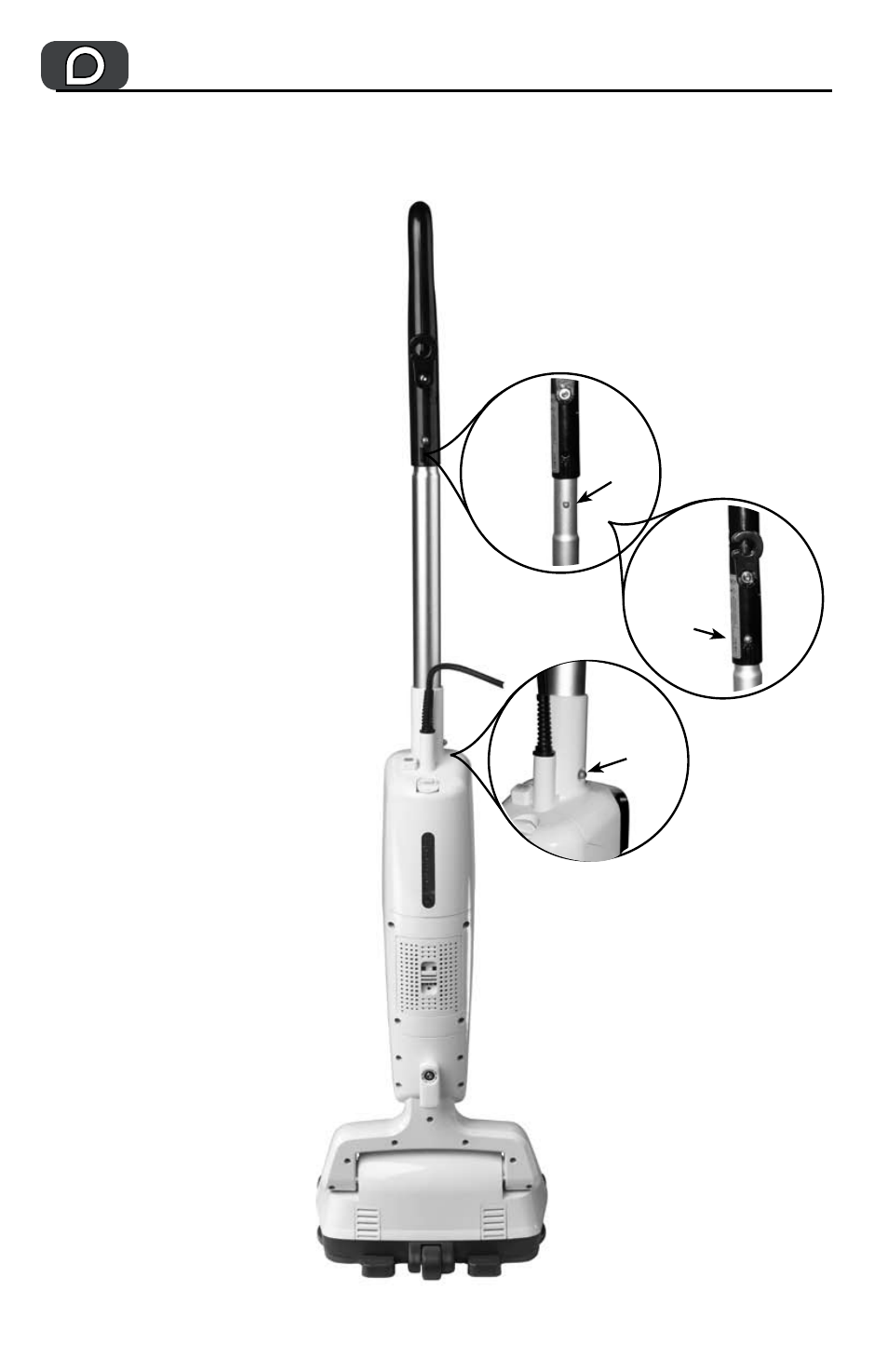

Look for the narrow end of the
aluminum pipe; align the black
pistol grip handle with the locking
pin; hold the pin down; insert the
pole and snap it into place.
Locking
Pin
Align the lower end of the
aluminum pole with the lower
locking pin on the side; line
up grooves inside the white
plastic pole base and snap
it into place.
➟
Locking
Pin in
place
➟
Lower
Locking
Pin
