ENGLISH
Remote Controlled Products
This manual includes operating instructions for a variety of remote controlled products. All products work on the same principle and use the same
code setting information. Please read all instructional information and note any specific information pertaining to your particular product.
WARNINGS:
• FOR USE ONLY with 120 volt incandescent or halogen bulbs.
• DO NOT USE with fluorescent bulbs, appliances, power supplies, low voltage lighting, or any other electrical devices.
• Transmitters
– Remote Control
– Add-A-Switch
– Entry Switch
– Indoor Wireless Motion Sensor
– Outdoor Wireless Motion Sensor
• Receivers
– Indoor Plug-In Converter
– Lamp Socket Converter
– Floodlight
This manual applies to the following products: FEATURES
• Products are UL/cUL and/or FCC/IC tested and approved.
• Operational range of up to 100 feet.
Heath ® /Zenith wireless lighting controls are designed to
work together. Simply determine which transmitter(s) you
would like to have control which receiver(s) and set the code
setting to match.
CODE SETTINGS
Note: Most single system installations will not require any
change to the code setting. Transmitter(s) and receiver(s)
must have the same code and group setting to work together.
Switches 1 through 3 set the code. Switch 4 sets the Group
(A or B). See page 2 for switch locations.
DIM
ON
OFF
ON
OFF
DIM
Receiver(s)
Code
Transmitter(s)/
Receiver(s) Code
Group “A”
Group “B”
Remote Motion
Sensor Code
Group “A”

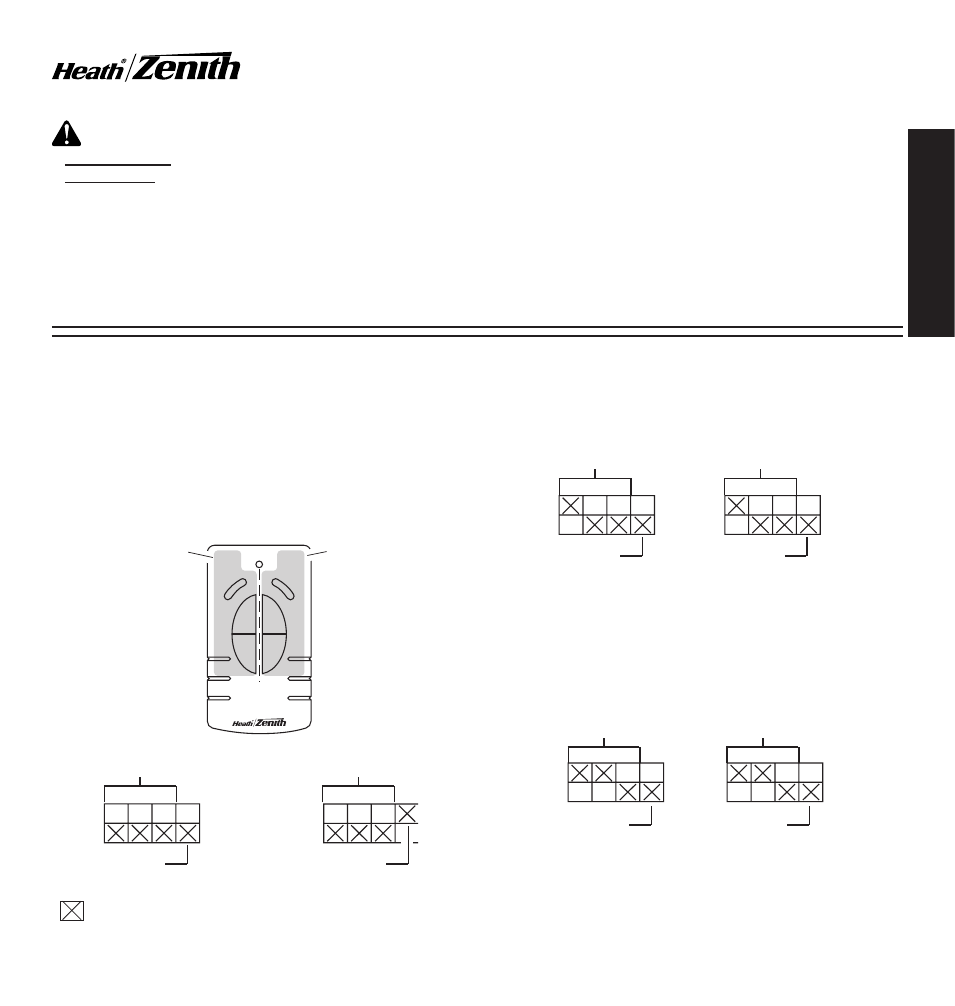

Example 1 - Code Settings, System 1
(Factory Setting)
Left Side Controls:
Controls One Set of
Group “A” or Group
“B” Receiver(s)
Right Side Controls:
Controls One Set of
Group “A” or Group
“B” Receiver(s)
Transmitter(s)/
Receiver(s) Code
Group “A”
Example 3 - Code Settings with Single Transmitter
When using a single group transmitter (i.e. Door Transmitter, Add-A-
Switch, Remote Motion Sensor) the code and group settings must
match receiver(s) for the system to function properly.
Note: This setting will work independently of examples 1 and 2
because the code setting is different.
Note: The code can also be changed to reduce interference problems
from other wireless products (i.e. wireless phones, garage door open-
ers, etc.). See Troubleshooting Guide for more information.
( – Indicates Position of Switch)
Example 2 - Code Settings, System 2
Note: When operating more than one system independently of each
other, set each system to a different code. There are 8 codes avail-
able by changing the settings of switches 1 through 3.
Receiver(s)
Code
Group “A”
Transmitter
Code
Group Switch
(Group “A” Selection Shown)
