Heath Zenith 598-1304-01 - Manual

© 2007 HeathCo LLC 598-1304-01
Features
• Quickly add ON/OFF control of a receptacle without the expense of new wiring.
• Four selectable channels allowing the use of up to four separate systems in the same home.
• Products are UL/cUL and/or FCC/IC tested and approved.
• Operational range of up to 50 feet.
remote Controlled Products
Operation
1. The remote control will operate one
or more receiver units with match-
ing channels. There are separate
ON / OFF buttons for the outdoor
and indoor receiver.
Note: Receivers must be at least 10
feet apart for best performance.
2. Push the outdoor or indoor ON button to turn
the desired plugged in receiver on. Push
the outdoor or indoor OFF button to turn the
desired plugged in receiver off.
Battery replacement
The remote control requires a type A23 12 Volt
alkaline battery to operate. The remote control is
shipped with the battery installed. With typical use,
the battery will last approximately one year.

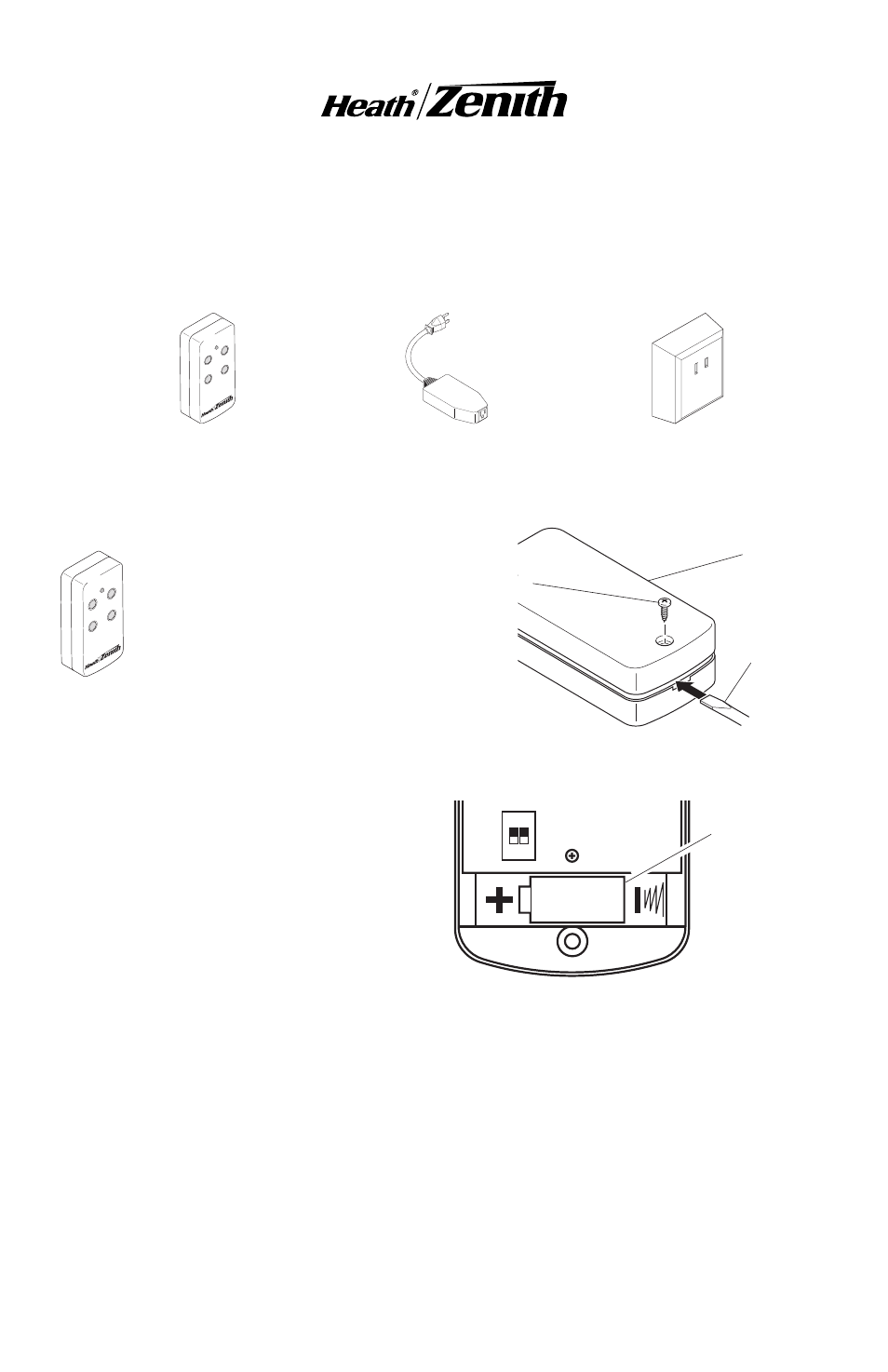

To replace the battery, follow the instructions
below:
1. Place remote control face down on a flat
surface.
2. Remove screw on bottom of remote with a
small phillips-head screwdriver.
3. Gently insert a small flat-head screwdriver
between the two halves on the bottom of the
remote and twist. Carefully separate the back
of the remote from the front.
4. Lift the back of the remote up and lay aside.
5. Remove battery. Install replacement battery.
Make sure battery is oriented properly (see
illustration).
6. Reassemble remote in reverse order.
remOte COntrOl
OUTDOOR
INDOOR
ON
ON
OFF
OFF
Inside of Remote Control
ON
12 V
1 2
Battery
Compartment
(Type A23)
Removing Back of Remote Control
Flat-Head
Screwdriver
Philips-Head
Screw
Remote
Control Back
OUTDOOR
INDOOR
ON
ON
OFF
OFF
This manual applies to the following products:
Remote Control Indoor Plug-In Receiver Indoor/Outdoor Receiver
